USED 2024 MG SRL AR130
Overview

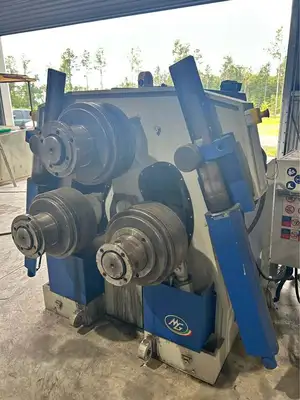

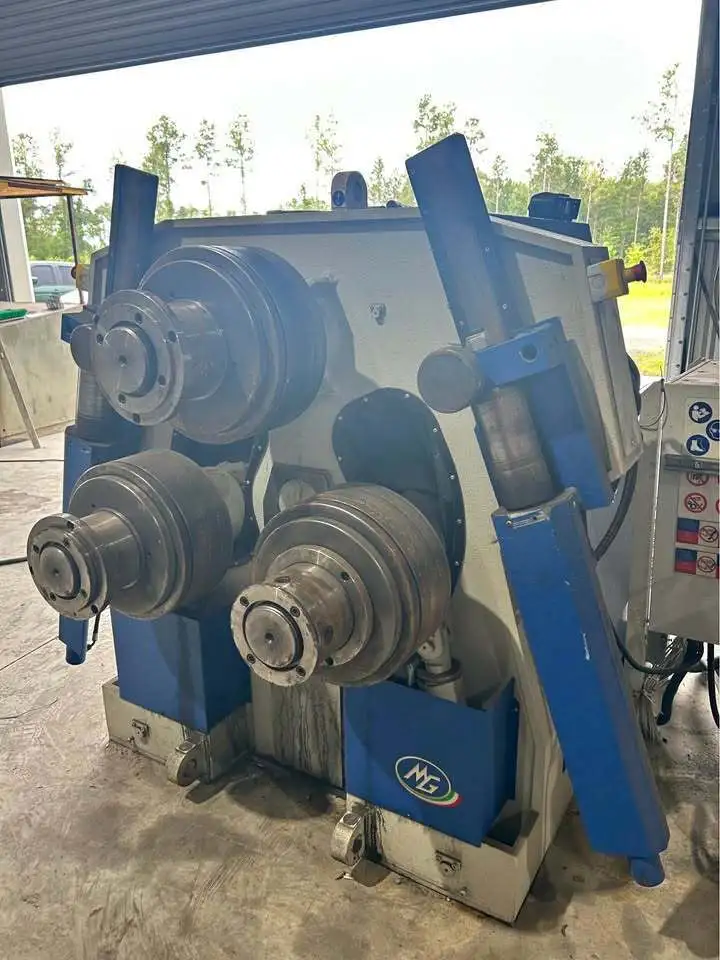

MG S.R.L. Section Roll 3R Model AR130 Angle Bending Roll (2024), 3 Roll, The MG AR 130 is a heavy-duty hydraulic 3-roll or 4-roll section bending machine equipped with planetary roll drives and independent hydraulic motors for high torque transmission. It is used for curving structural profiles, angles, pipes, and beams.
Specs
Core Specifications
Shaft Diameter: 130 mm (approx. 5.11 inches)
Section Modulus Capacity: 40 – 80 cm³
Rolling Speed: 6 m/min (approx. 19.7 ft/min)
Motor Power: 15 kW (approx. 20 HP)Orientation:
Operates both vertically and horizontally
Angle Bending (Leg In / Leg Out): Up to 4" × 4" × 0.375"
Flat Bar on Edge: Up to 4" × 0.5"
Flat Bar on Flat (Easy Way): Up to 6" × 1"
Round Tube: Up to 4.5" OD
Square Tube: Up to 3.5"Standard Pipe (Schedule 40): Up to 3.5" (3-1/2" Nominal Pipe Size)Standard I-Beam (on the weak axis): Up to 6"
