NEW 1978 TOSHIBA SHIBAURA TD-60/85
Overview
1978 TOSHIBA SHIBAURA Vert. Boring Mill, Table Dia. 236.2", Max Turn Dia. 334.65. Under Rail 137.8"

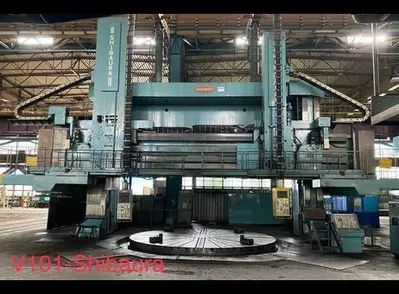

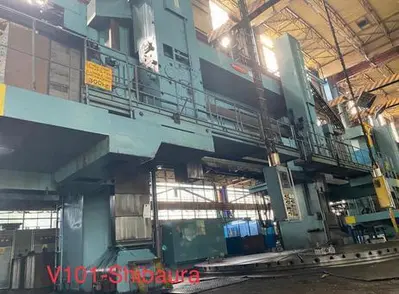

This Toshiba (Shibaura) TD-60/85 is a numerically controlled, cross-rail elevating double column vertical boring and turning mill, manufactured in 1978. It features a robust design with two vertical columns supporting an overhead bridge structure, providing stability and precision for heavy-duty machining tasks. The machine is equipped with a large circular rotary table with a diameter of 6,000 mm, capable of handling a maximum load of 160,000 kg at speeds below 10 rpm, making it suitable for machining very large and heavy workpieces.
This machine is a numerically controlled and cross rail elevating double column type vertical boring and turning mill. Is a machine with two rail heads.
One, on the right side is turning head and the other, on the left side is a milling head. The right head is utilized exclusively for turning work and can withstand heavy duty operation, and left performs boring and milling work.
After the turning is completed, both heads can be performed without changing the machine set-up. These features, coupled with table indexing and milling feed, assure versatility machining capabilities.
The cross rail is guided by the slideways of the two columns. Electro-hydraulic clamping clamping devices assure clamping of the cross rail at the desired position.
Highly accurate horizontal straightness is guaranteed by the simple and stabilized method of utilizing the compensation beam inside the cross beam.
All control operations for running the machine can be performed either on the platform of the cross rail or on the floor.
The hydrostatic lubrication system is employed for the rail head guideways and table.
Specs
Table diameter 6 000 mm
Max. turning diameter 8 500 mm
Max. distance from table top and tool holder of rail heads 3 500 mm
Vertical travel of right ram 2 300 mm
Vertical travel of left ram 2 000 mm
Max. swivel angle of right and left ram ±30 deg.
Diameter of milling-spindle nose 290 mm
Taper of milling spindle ISO 50
Max. load on table (less than 10 rpm) 160 000 Kg
Section of right ram 320x320 mm
Section of left ram 450x450 mm
Milling spindle speed (on 3 steps) 6.3-630 rpm
Table speed (on 3 steps) 0.315-31.5 rpm
Table milling speed 0.0006-0.2 rpm
Feed speed of rail heads 0.2-800 mm/min
Rapid speed of rail heads 2 400 mm/min
Cross rail elevating speed 300 mm/min
Weight of machine 225 000 Kg
Equipped With
Table diameter 6 000 mm
Max. turning diameter 8 500 mm
Max. distance from table top and tool holder of rail heads 3 500 mm
Vertical travel of right ram 2 300 mm
Vertical travel of left ram 2 000 mm
Max. swivel angle of right and left ram ±30 deg.
Diameter of milling-spindle nose 290 mm
Taper of milling spindle ISO 50
Max. load on table (less than 10 rpm) 160 000 Kg
Section of right ram 320x320 mm
Section of left ram 450x450 mm
Milling spindle speed (on 3 steps) 6.3-630 rpm
Table speed (on 3 steps) 0.315-31.5 rpm
Table milling speed 0.0006-0.2 rpm
Feed speed of rail heads 0.2-800 mm/min
Rapid speed of rail heads 2 400 mm/min
Cross rail elevating speed 300 mm/min
Weight of machine 225 000 Kg
