NEW 2026 EPMM VH-50 MG
Overview
2026 EPMM CNC Movable Column Milling with Integrated Rotary Table that's movable on X Axis
The VH-50 is a new range of EPMM milling machines with T configuration that groups two
variants according to the type of table:
VH-50 M with mobile table along the longitudinal axis.
VH-50 MG with integrated rotating table and mobile along the longitudinal axis.
Designed to reduce handling times and ensure accuracy in the entire field of work.
The VH-50 milling machine has a T-shaped structure with a mobile column and mobile table
that facilitates loading / unloading and ensures accuracy throughout the entire work area. The
MG version also allows machining of the 5 faces of a piece in a single position, without the
need to manipulate the piece, which allows to guarantee the precision in all machining
operations, also reducing handling times and consequent loss of precision.
The variety of available heads allows to configure the machine for multiple industrial
applications.
The VH-50 milling machines are characterized by:
- Structure in T.
- Transverse movement of the column (absence of RAM or ram).
- Constant geometric precision.
- Large volume of work in vertical and horizontal.
- Easy loading and unloading.
Specs
Longitudinal table Surface mm 2.200x700
Max load admissible Kg 3.000
Travels Longitudinal (X) mm. 2.000 | 3.000
Transverse (Y) mm. 920
Vertical (Z) mm. 815
Feedrates Feedrates X / Y / Z m/min From 10 to 45 depending on axis
and configuration

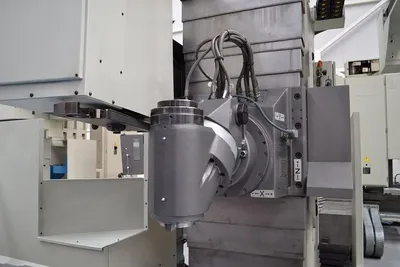

Heads Head Hirth 2,5º - 2,5º | Optional 1º - 1º
Continuous head 4 or 5 axis Continuous, resolution 2"
Specifications Guidance system Roller skates in X / Y / Z
Transmission system Preloaded ball screw X / Y / Z
Measurement system Optical rules
rotary table Surface mm 1.000x1.000
Max load admissible Kg 3.000
4th axis (Axis C) º Continuous, 360
45 ° Hirth head
Type Hirth (indexed)
Positioning Axis A - B 2,5º - 2,5º | Optional 1st- 1st
Tool holder ISO-50
Power HP 35
Torque Nm. 1.370
Speed rpm. 3.000 | Optional 5.000
Continuous head 4 or 5 axes
Positioning Continous
Travel Axis A - B ±180º / ±220º
Tool holder HSK-A63, HSK-A100, SK-50
Power Kw From 21 Kw to 50 Kw
Torque Nm. From 75 Nm to 1,022 Nm
Speed rpm From 7,000 rpm to 24,000 rpm
Equipped With

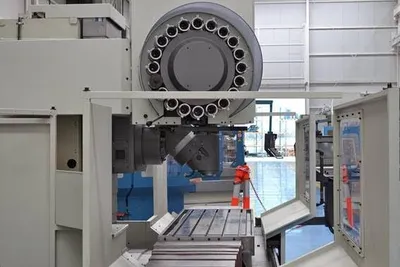

Equiqment Tool magazine Circular of 18 positions
Equipo de taladrina Interior / Exterior
Fairing Basic front
Numerical control Heidenhain iTCN 530 / iTCN 640
Portable control Heidenhain HR510
Ethernet network connection
Electricity cupboard Refrigerated by air conditioning
Lighting work area
Cleaning gun
