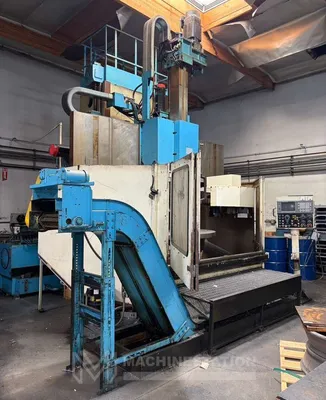

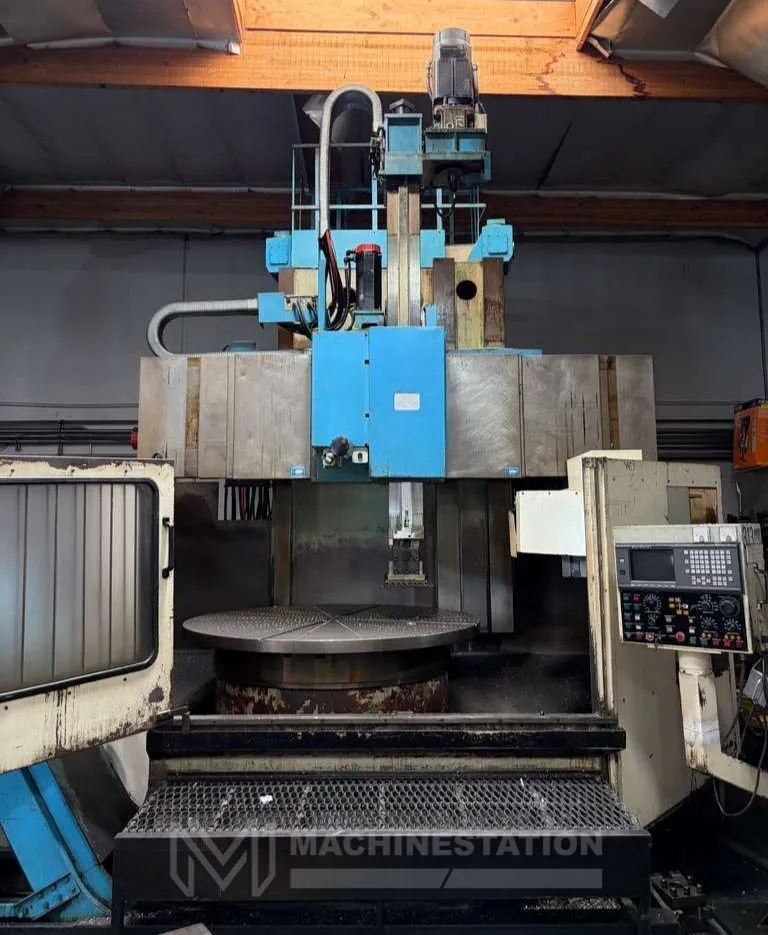

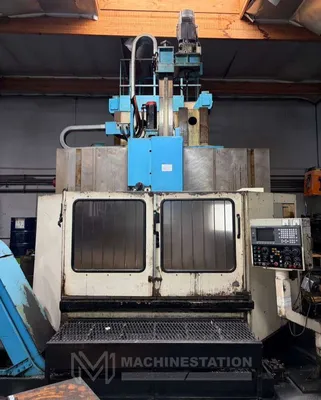

USED OLYMPIA V60 LS
Overview
Specifications
| Table Dia | 60" | 1,524 mm |
|---|---|---|
| Swing | 80" | 2,032 mm |
| Work Ht-U/R | 62" | 1,574.8 mm |
| Power | 80 hp | 59.7 kW |
| RPM | 450 RPM | 450 RPM |
| Control | CNC (Fanuc 18T CNC Control) | CNC (Fanuc 18T CNC Control) |
| Dimensions | 165″ x 220″ x 215″ High Approx. | 165″ x 220″ x 215″ High Approx. |
| Weight | 75000 lbs | 75000 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

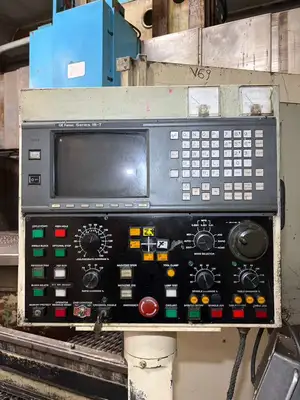

Fanuc 18T CNC Control
Heavy Table Load Capacities
Coolant Tank
Table / Worpiece:

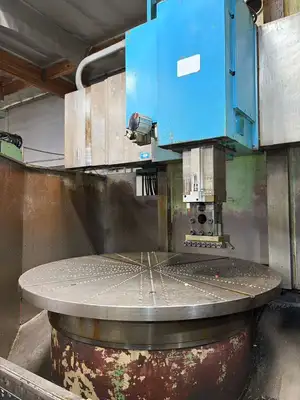

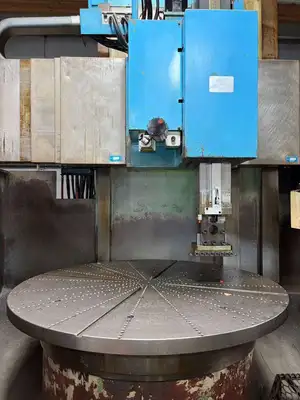

Table Diameter: 60″
Maximum Turning Diameter/ Swing: 80″
Maximum Workpiece Height Under Rail: 62″
Maximum Workpiece Height Under Tool: 50″
Maximum Workpiece Weight: 65,000 lbs
Spindle / Table:
Main Spindle Motor: 80 HP
Maximum Table Speed: 450 RPM
Drive Type: Heavy-Duty Gear Driven Table
Travels:
X-Axis Head Travel: – 47.2″ / +57.1″
Z-Axis Ram Travel: 39.4″
Vertical Travel of Cross Rail: 39.4″
C-Axis Rotation: 360000 Positions
Rapid Feedrates: 394 IPM

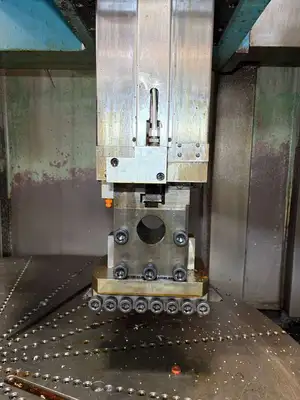

Ram:
Ram Size: 8.3″ x 8.3″
General:

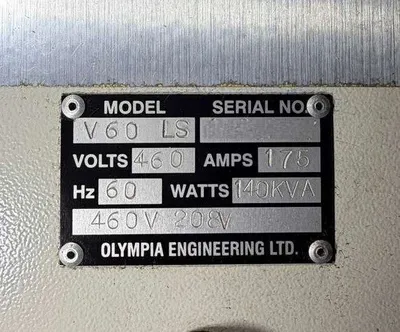

Power: 460V – 208v / 3-phase / 60 Htz / 140 kva
Overall Dimensions: 165″ x 220″ x 215″ High Approx.
Machine Weight: 75,000 lbs
Equipped With
60″ 4-Jaw Chuck
72″ Faceplate Mounted on Chuck

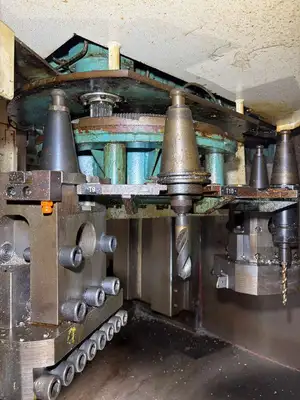

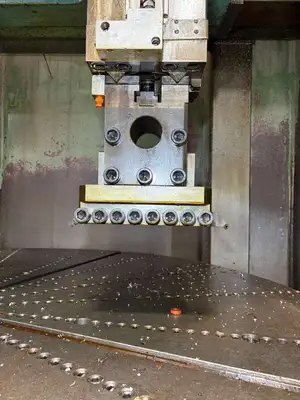

12-Station Automatic Tool Changer (6+6 Live Tool)
C Axis Live Tool
CAT-50 Taper Milling Spindle

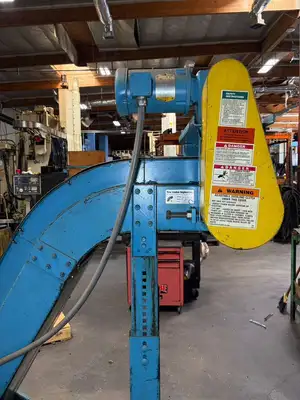

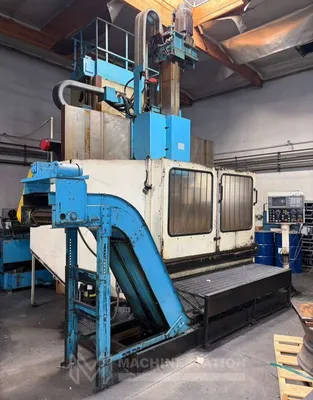

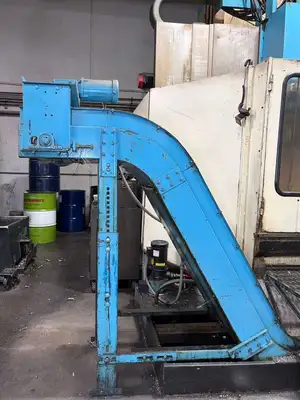

Chip Conveyor
