USED LEISTRITZ CORPORATION ZSE 27MAXX-48D

Manufacturer: Leistritz Extrusionstechnik
Model: ZSE 27 MAXX/48D
Condition: Used
Type: Co-Rotating Twin Screw Extruder System
Previous Service: Plastic Laboratory / R&D Application
Manufacturer Information
Leistritz is a world-renowned manufacturer of twin screw extrusion systems used in plastics compounding, polymer processing, pharmaceutical manufacturing, masterbatch production, specialty chemicals, and research applications. The ZSE MAXX series is recognized for its high torque density, modular screw design, excellent mixing performance, and process flexibility for product development and production environments.
Description

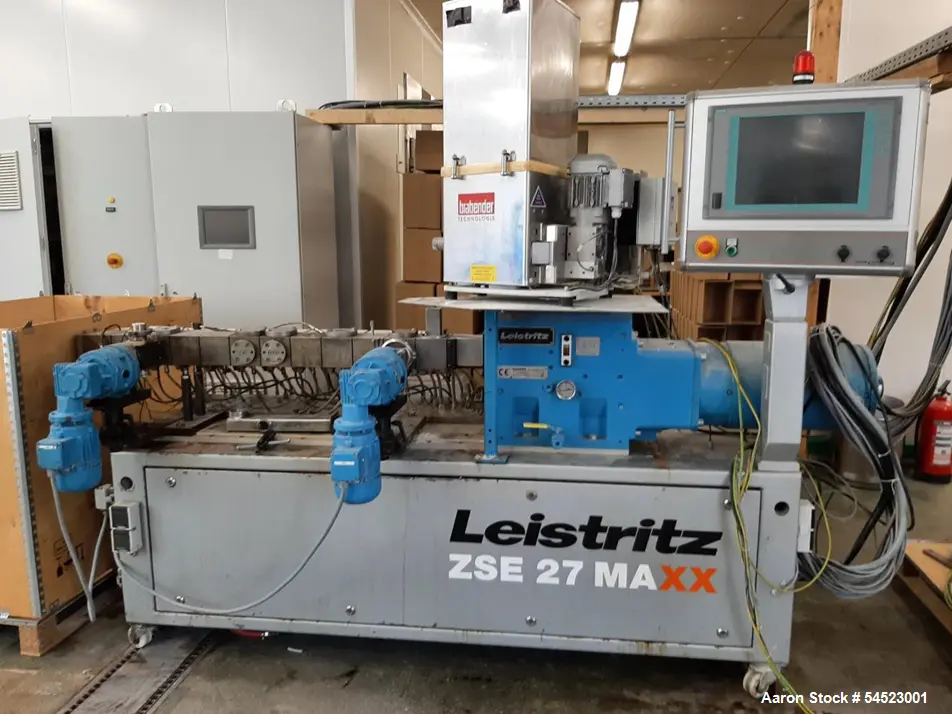

Used Leistritz ZSE 27 MAXX/48D co-rotating twin screw extruder complete with side feeders, gravimetric feeding system, vacuum system, temperature control unit, and control panel. The machine features twin 27 mm screws with a 48:1 L/D ratio and operates at screw speeds up to 1,200 RPM.
The extruder is equipped with a 12-barrel housing section featuring electric heating and water cooling for precise process control. Two degassing ports provide efficient removal of moisture, volatiles, and entrapped gases during processing. The package includes two Leistritz twin screw side feeders, a Brabender feeding system, Bush Mink vacuum pump, temperature control system, and operator control panel.
Previously utilized in a plastics laboratory environment, making it ideal for compounding, formulation development, pilot-scale production, and advanced polymer processing applications.
Specifications
Extruder

Manufacturer: Leistritz
Model: ZSE 27 MAXX/48D
Type: Twin Screw Extruder
Screw Diameter: 27 mm (1.05")
Configuration: Co-Rotating Twin Screw
L/D Ratio: 48:1
Maximum Screw Speed: 1,200 RPM
Drive: Gearbox Driven
Barrel Sections: 12
Heating: Electric
Cooling: Water Cooled
Degassing Ports: 2

Included Equipment

Leistritz ZSE 27 MAXX/48D Twin Screw Extruder
(2) Leistritz Twin Screw Side Feeders
(1) Brabender Feeding System
(1) Busch Mink MM 1144 BC Vacuum Pump
(1) Temperature Control Unit
(1) Main Control Panel
Gearbox Drive System

Dimensions

Length: 3,300 mm
Width: 1,000 mm
Height: 2,200 mm

Weight

Approximate Weight: 1 Metric Ton (Extruder Only)

Applications

Polymer compounding
Masterbatch production
Engineering plastics development
Additive incorporation
Color concentrate manufacturing
Biopolymer development
Research and development
Pilot-scale extrusion
Specialty chemical processing
Recycling and material recovery studies

Common Materials Processed

Polypropylene (PP)
Polyethylene (PE)
ABS
Nylon
PET
TPU
Engineering resins
Color concentrates
Filled compounds
Recycled plastics

Key Features

High-performance Leistritz MAXX platform
48:1 L/D processing length
Co-rotating twin screw design
High screw speeds up to 1,200 RPM
Dual degassing capability
Precision electric heating and water cooling
Integrated side feeding system
Brabender material feeding package
Vacuum-assisted processing
Suitable for laboratory and pilot production environments

Frequently Asked Questions
What is the screw diameter?

The extruder features twin 27 mm (1.05") diameter screws.

What is the L/D ratio?

The machine has a 48:1 length-to-diameter ratio.

Is the extruder co-rotating or counter-rotating?

This is a co-rotating twin screw extruder.

What auxiliary equipment is included?

The package includes two Leistritz side feeders, a Brabender feeding system, Busch Mink vacuum pump, temperature control unit, and control panel.

What was the previous application?

The system was previously used in a plastics laboratory environment.

Can Aaron Equipment assist with shipping and logistics?

Yes. Aaron Equipment can coordinate dismantling, loading, domestic and international freight, export documentation, and logistics services for extrusion systems, plastics processing equipment, and complete production lines.
