USED ALFA LAVAL AVNX 919B-31G

Used Equipment Facts About This Machine
Manufacturer: Alfa Laval
Model: AVNX 919B-31G
Condition: Used
Type: Solid Bowl Decanter Centrifuge
Previous Service: Wastewater Treatment Application
Installation: Complete Containerized System in 20-Foot Container
Manufacturer Information:
Alfa Laval is a global leader in separation, fluid handling, and heat transfer technologies. Their decanter centrifuges are widely used in municipal wastewater treatment, industrial effluent processing, sludge dewatering, food processing, chemical manufacturing, and resource recovery applications. Alfa Laval centrifuges are recognized for high separation efficiency, reliability, and low operating costs.
Description
Used Alfa Laval AVNX 919B-31G solid bowl decanter centrifuge package designed for continuous solids-liquid separation and sludge dewatering applications. The system features 316 stainless steel product contact surfaces, a maximum bowl speed of 3,250 RPM, and a conveyor with welded hardfacing for extended wear resistance.
This complete containerized dewatering system includes the centrifuge, hydraulic unit, polymer preparation station, discharge conveyor, dual control panels, safety guarding, vibration isolation system, and associated support equipment. Previously utilized in a wastewater treatment application and mounted within a 20-foot container for simplified transportation and installation.
Specifications

Manufacturer: Alfa Laval
Model: AVNX 919B-31G
Type: Solid Bowl Decanter Centrifuge
Condition: Used
Product Contact Material: 316 Stainless Steel
Maximum Bowl Speed: 3,250 RPM
Conveyor Type: Hardfaced Scroll Conveyor
Main Drive Motor: Approximately 30 kW (40.2 HP)
Drive System: Motor and Coupling
Mounted Frame and Casing Included
Vibration Isolators Included
Safety Guards Included

Included Equipment

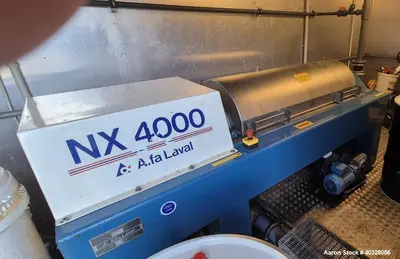

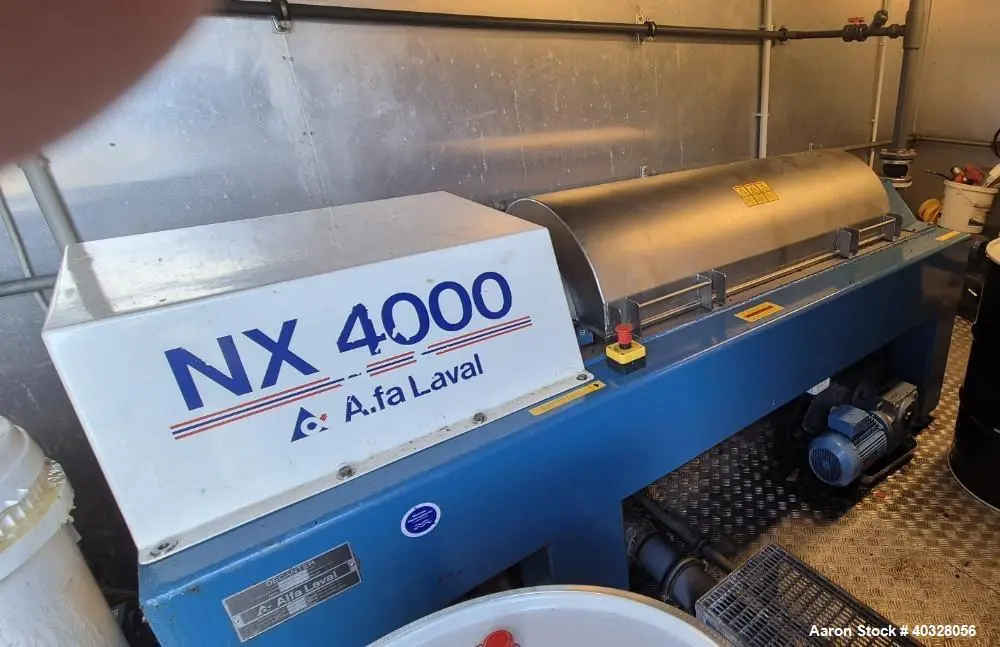

Alfa Laval AVNX 919B-31G Decanter Centrifuge

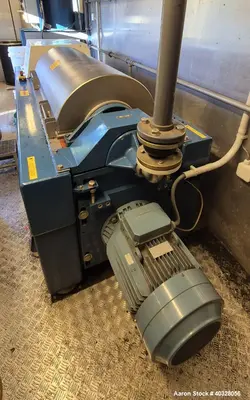

Main Drive Motor
Coupling Assembly
Structural Frame
Machine Casing
Vibration Isolation System
Safety Guarding

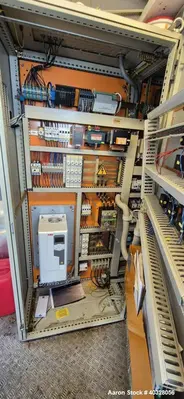

(2) Control Panels
(1) Hydraulic Unit
(1) Polymer Station
(1) Discharge Conveyor

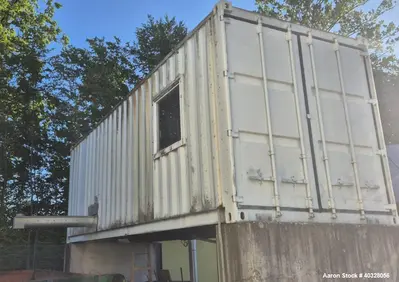

Containerized Installation

Overall Dimensions

Length: 7,500 mm (24.6 ft)
Width: 2,450 mm (8.0 ft)
Height: 2,550 mm (8.4 ft)

Weight

Approximate Weight: 7 Tonnes (15,432 lbs)

Applications

Municipal wastewater sludge dewatering
Industrial wastewater treatment
Biological sludge processing
Industrial effluent treatment
Food processing waste streams
Chemical process separation
Mining wastewater treatment
Pulp and paper sludge dewatering
Environmental remediation projects
Resource recovery operations

Common Products Processed

Waste activated sludge
Digested sludge
Industrial wastewater solids
Biological treatment sludge
Food processing waste streams
Chemical slurries
Mining tailings
Pulp and paper sludge
Industrial process solids
Organic waste streams

Key Features

Complete turnkey containerized dewatering system
Alfa Laval industrial decanter centrifuge
316 stainless steel wetted components
Hardfaced conveyor for extended wear life
Integrated polymer dosing station
Hydraulic control system
Dual control panel configuration
Transportable 20-foot container installation
Designed for continuous operation
Proven wastewater treatment service

Frequently Asked Questions

What type of centrifuge is included?

An Alfa Laval AVNX 919B-31G solid bowl decanter centrifuge.

What is the maximum bowl speed?

The centrifuge operates at speeds up to 3,250 RPM.

What material are the product contact surfaces?

Product contact areas are constructed from 316 stainless steel.

What auxiliary equipment is included?

The package includes control panels, hydraulic unit, polymer station, discharge conveyor, safety guards, and vibration isolators.

What was the previous application?

The system was previously used in a wastewater treatment application.

Can Aaron Equipment assist with shipping and logistics?

Yes. Aaron Equipment can coordinate dismantling, container transport, domestic and international freight, export documentation, and complete logistics services for centrifuge systems and process equipment.
