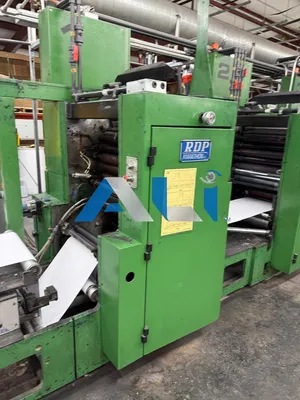

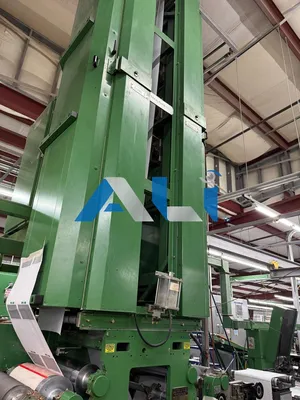

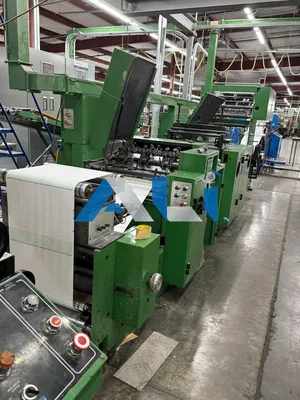

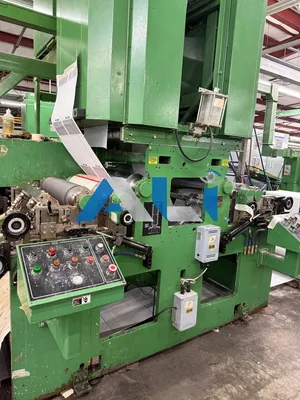

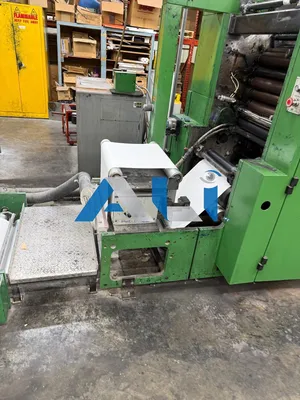

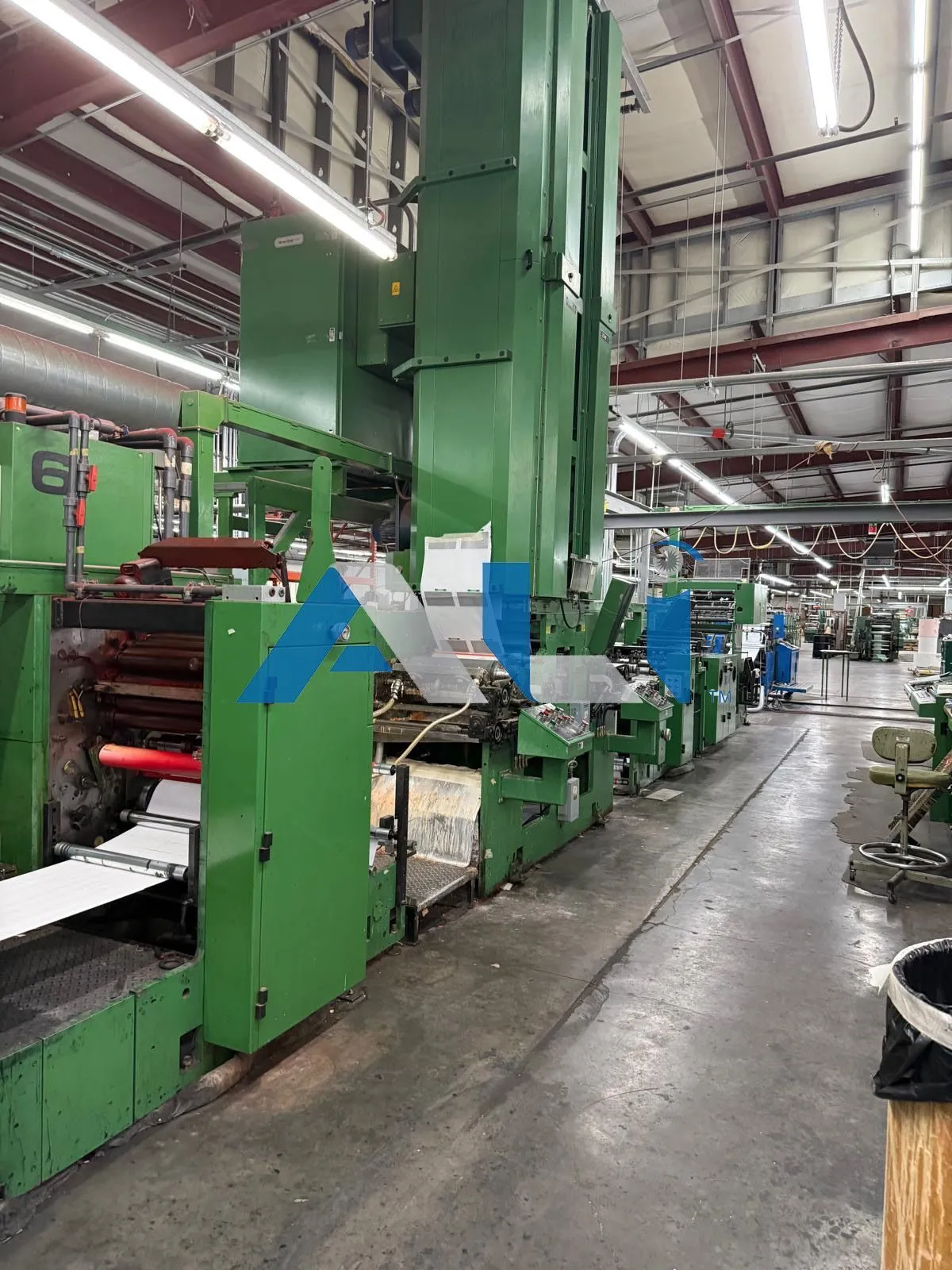

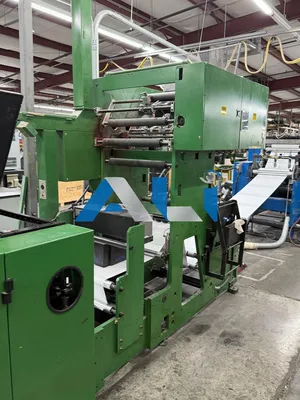

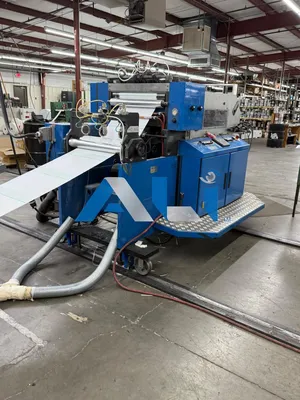

USED 1992 RDP RDP 200 6 Color Pressure Seal Press

General
Speed - Mechanical Drive -50fpm to 1200fpm
Gear Lubrication - Continuous Oil bath
Drive Train - Shaft with flexible steel disk couplings at gear boxes
press Drive - Electric DC Drive
Max web width - 20 1/2"
Max print width - 20"
Cylinder Size - 17", 22", 28"
Web Break Detectors - Electric eye style mounted over the web
Frames - 1.25" Steel (2P inside frames)
Unwind

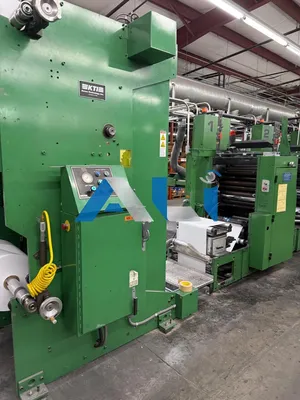

KTIMode11.S2150.BAutomaticLapSplicer
Max web Width - 21"
Max roll Diameter - 50"
Sized to lift 21 web width (50" diameter)
Inside core diameter - 3", 5"
Programmable decurler
Doyle two-sided web cleaner
E & L Electronic web guide

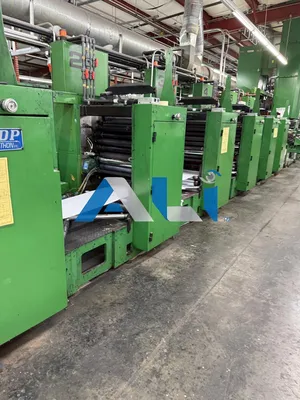

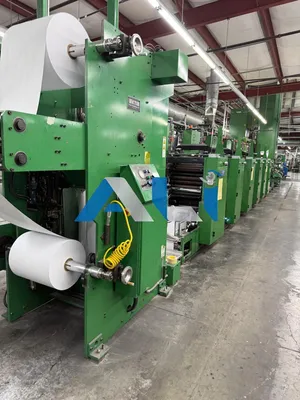

Print Units
NO. print Towers 6
Print Insert Sizes - 17", 22", 28" (6 of each size)
Four form roller system
Reel-in Blankets
Motorized Circ. Register with remote control Motorized plate side lay with remote control plate cylinder skewing and form roll adjustment Auxiliary Unit drive motors
360 deg circumferential gear boxes
Centralized, refrigerated recirculator
Chilled oscillators
Dahlgren dampening system
Chilled vibrators (Tri Service Chiller)
Ink Agitators • Auto ink roll wash-up
Numbering Inserts
One each Of 17” , 22” and 28” - used in last print tower
Two 6” marginal sleeves of each size.
Back Printing
Turn bars between units I & 2, 2 & 3, and 3 & 4
UV Dryers
Prime UV 400-600 watt curing system
Prime Smart system control
Inter-station drying
Coater/Dryer
IDC Model* SFC-205 (2 coating heads for front & back)
proctor Strayfteld two-sided Radio Frequency Dryer
Cylinder sizes - 17", 22", 28"
Web Viewer
BST Promark Eagle two-sided web viewer
Other in-line features
Linehole punching (one)
Provision for die insert
Vertical perfs (2 Shafts)
Double filehole unit (Can substitute magnetic diecut cylinders)
Two cross perf inserts (Can substitute magnetic diecut cylinders)
Automatic Register Control & Console
Ink Key Control & Console

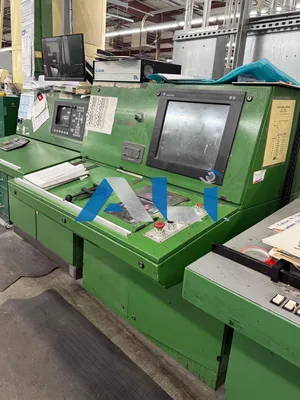

Press Contorl Console

Rewind
50” Rewinder
Folder
Fordyce Folder
Sheeter
ESS Pantec sheeter (Starwheel type)
