USED 1999 Chevalier FSG-618M, 1999, 2X DRO, ROLLER BEARING TABLE,

6" Width 18" Length Chevalier FSG-618M, 1999, 2X DRO, ROLLER BEARING TABLE, SURFACE GRINDER, PMC, "VACUGUARD" WHEEL GUARD FOR DRY GRINDING

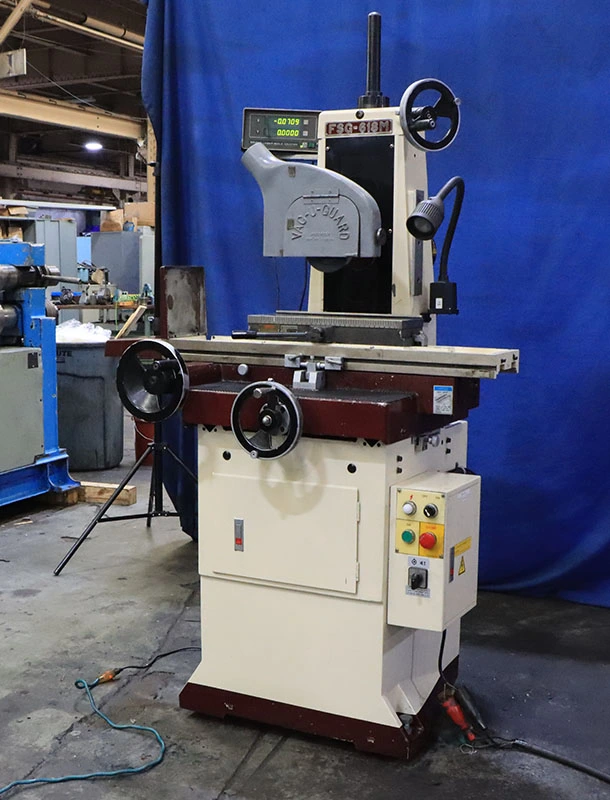

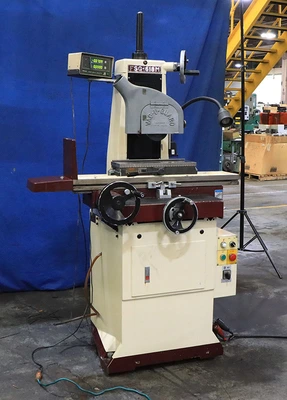

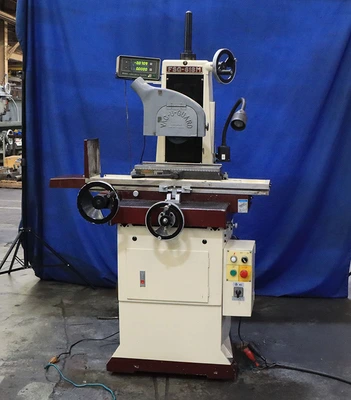

 6" x 18" Chevailer Hand Feed Surface Grinder

    with MITUTOYO 2-Axis Digital Readout

Model: FSG-618M       S/N: A3886017      New:1999

Maximum grinding length: ....... 18"

Maximum grinding width : ....... 6"

Maximum table travel,

  longitudinal: ................ 19"

  cross: ....................... 7"

Maximum distance from table,

 working surface to spindle

 center: ....................... 18"

Handwheel graduations,

  cross:........................ 0.0005"

  downfeed:..................... 0.0001"

Spindle speed:.................. 3300 RPM

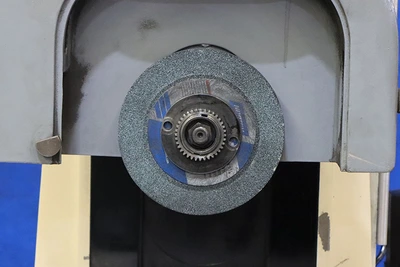

Wheel size:.......... 8"dia. x 1/2" width x 1-1/4" bore

Approximate weight: ........... 1,500 lbs

Approximate Dimensions:  55" L-R, x 42" F-B x 68" H

Equipped with:

All meehanite cast iron construction

Hardened and ground table guideways with steel balls

Double V Guideways laminated with Turcite-B for saddle travel

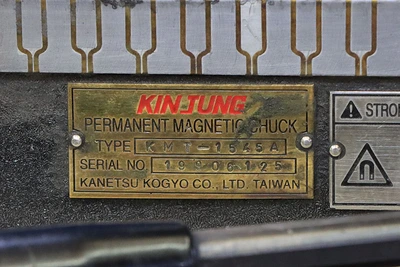

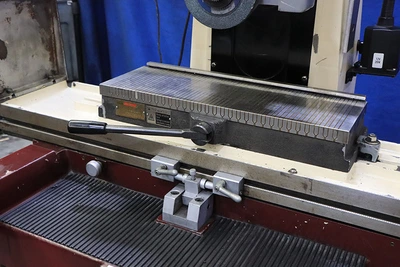

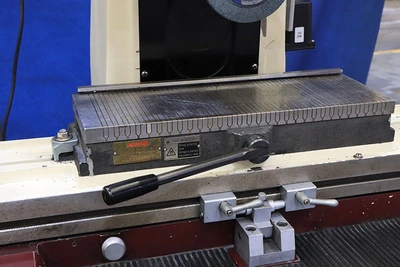

6" x 17-3/4" Kanetsu permanent magnetic chuck

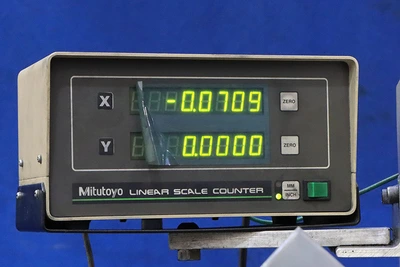

Mitutoyo 2-Axis Digital Readout

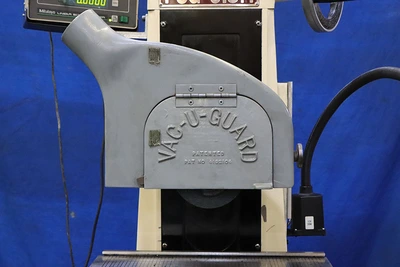

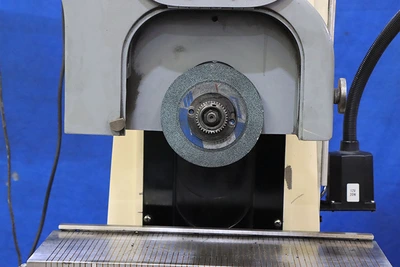

"Vortex" Wheel Guard, for Dry Grinding

Work light

Automatic lubrication of leadscrews and ways

1-1/2 HP 3/60/230-460 volt spindle motor and electrical controls

Machine is wired for 230 volt operation

Link to video: https://youtu.be/JXY78NWct3I?si=rmagFqel2ca5gjP0

** Inspect Under Power in our Harrison, NJ Warehouse **

** Excellent Condition & Appearance **

FOR MORE INFORMATION: Call Andy at 973-497-7600
