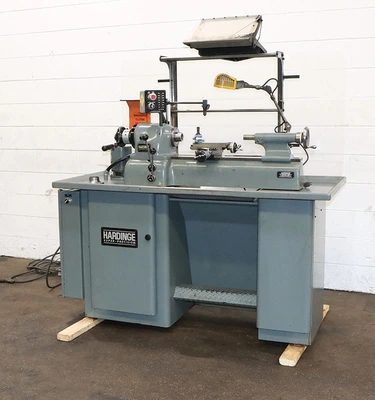

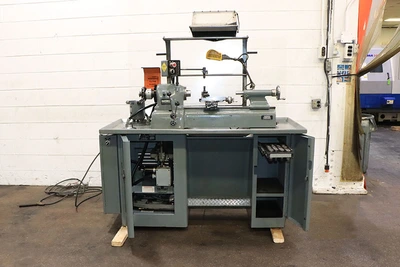

USED 1987 Hardinge DV59, 5C Collet, Compound & Tailstock, Vari-Speed

9" Swing 18" Centers Hardinge DV59, 5C Collet, Compound & Tailstock, Vari-Speed PRECISION ENGINE LATHE, Vari-Speed, 5C Collet Closer, Compound & Tailstoc

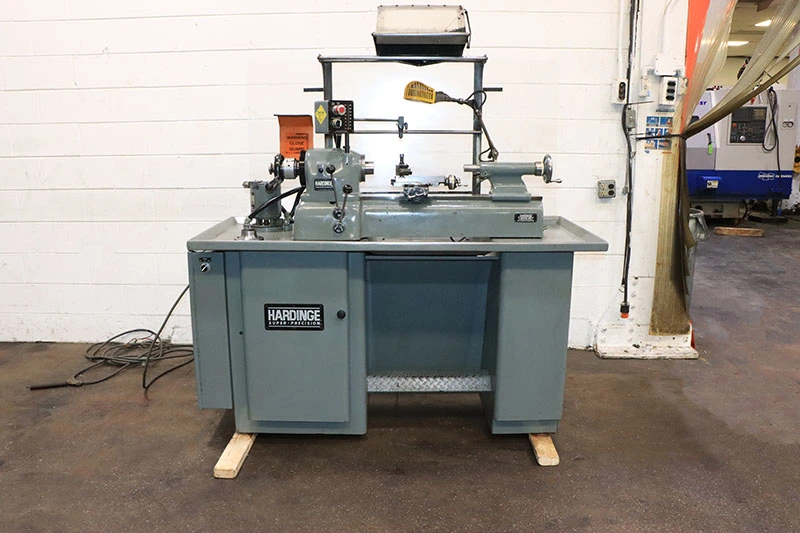

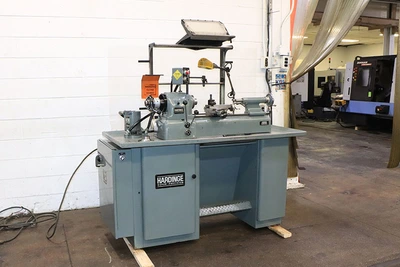

HARDINGE SUPER PRECISION FIRST OPERATION LATHE

MODEL: DV-59,  S/N: DV-59-18747,  NEW:  1987

SPECIFICATIONS:

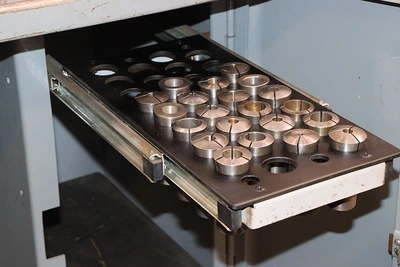

SPINDLE CAP. w/ROUND 5C COLLETS ...... 1-1/16"

               HEXAGON 5C COLLETS .... 7/8"

               SQUARE 5C COLLETS ..... 3/4"

               STEP CHUCKS ........... 1-1/16" TO 6"

               JAW CHUCKS ............ 5"

               JAW CHUCKS THROUGH SPINDLE 1-5/32"

SPINDLE TAPER ........................ 2-3/16" - R.H.

SWING OVER BED ....................... 9"

DISTANCE BETWEEN CENTERS ............. 17"

TRAVEL OF TOP SLIDE .................. 4-1/4"

TRAVEL OF BOTTOM SLIDE ............... 5"

TRAVEL OF TAILSTOCK SPINDLE .......... 3-1/2"

TAILSTOCK SPINDLE TAPER .............. #3MT

VARIABLE SPINDLE SPEED RANGE ......... 230 TO 3500 RPM

APPROX. WEIGHT ....................... 1,150 LBS.

EQUIPPED WITH:

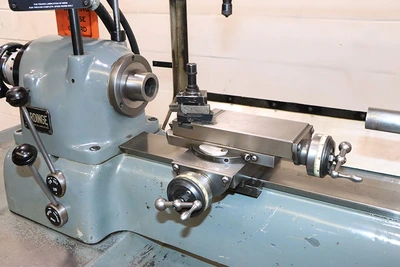

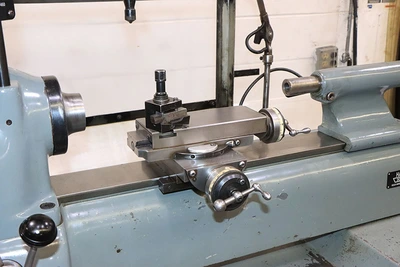

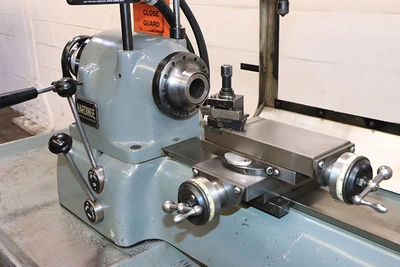

  - HARDINGE TOOLMAKERS COMPOUND

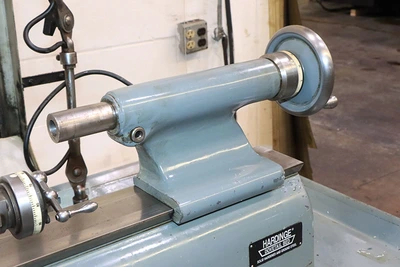

  - HARDINGE FULL BEARING TAILSTOCK

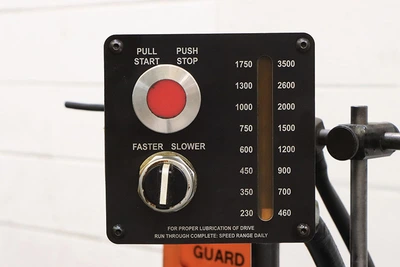

  - PUSH BUTTON CONTROL FOR VARIABLE SPEED

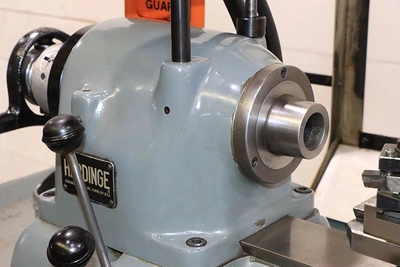

  - BALL BEARING LEVER TYPE 5C COLLET CLOSER

  - COOLANT SYSTEM

  - 3/60/230 VOLT TWO-SPEED DRIVE MOTOR& ELECTRICAL CONTROLS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
