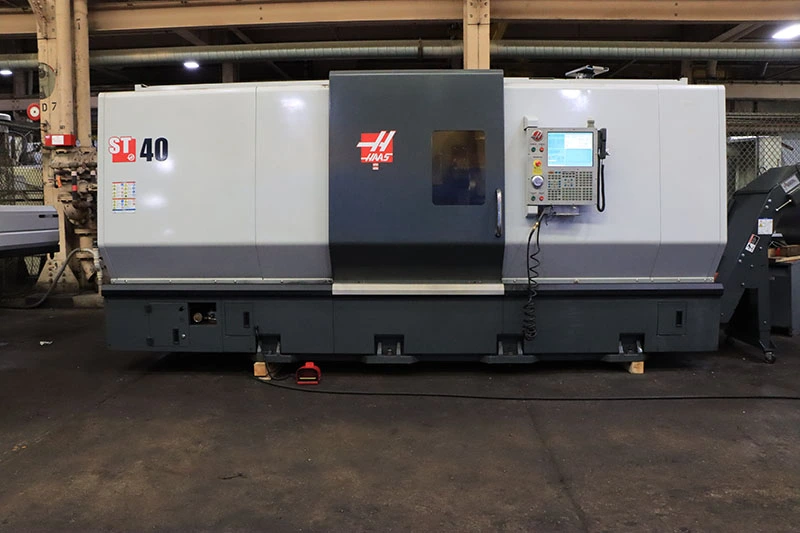

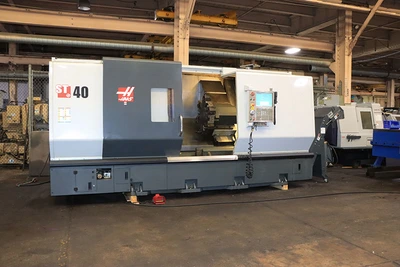

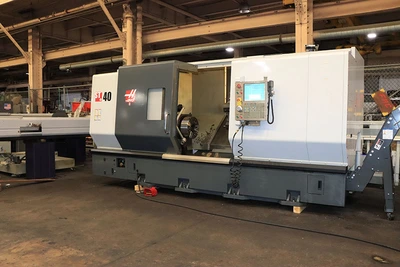

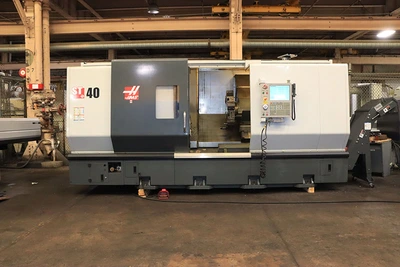

USED 2012 Haas ST-40 CNC Chucker

35.5" Swing Haas ST-40 CNC Chucker CNC LATHE, 15" 3-Jaw Chuck, 4" Bar Cap., Chip Conveyor

HAAS ST-40 CNC CHUCKER

NEW: 2012

Specifications:

Chuck Size                                     15.0"

Max Part Swing                               35.5"

Max Cutting Diameter (with BOT turret)       30.00"

Max Cutting Length (varies with workholding) 44.0"

Bar Capacity                               4.00"

X Axis                                     20.00"

Z Axis                                     44.00"

Rapids on X                                     710 ipm

Rapids on Z                                     710 ipm

Spindle Nose                               A2-8

Max Rating                                     40.0 hp

Max Speed                                     2400 rpm

Spindle Bore                                4.62"

EQUIPPED WITH:

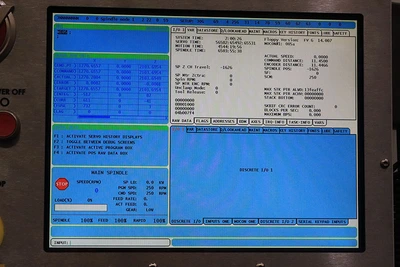

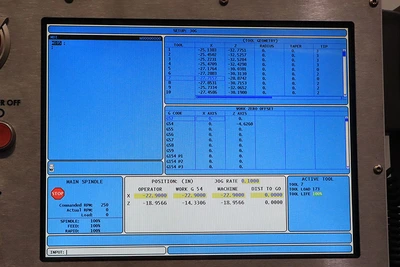

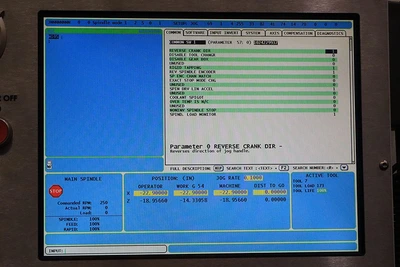

 - HAAS CNC CONTROL

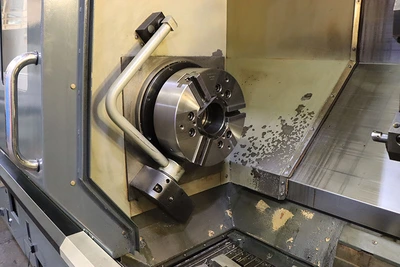

 - 15" 3-JAW HYDRAULIC CHUCK

 - TOOLSETTER

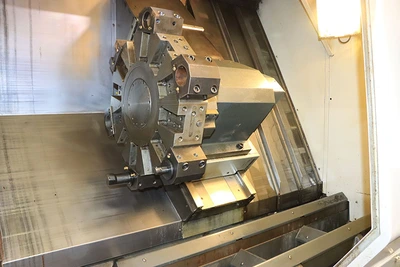

 - 12 POSITION TURRET

 - CHIP CONVEYOR

 - ALL AVAILABLE TOOLHOLDERS

FOR MORE INFORMATION: Call Mike at 973-497-7540
