USED 2006 Southwest Ind. 1840SX,, SLX Control, CSS, 3-Jaw, Indexable Turret
Overview
Description

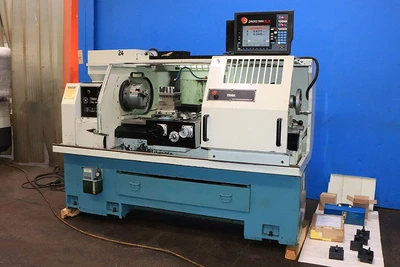

18" Swing 40" Centers Southwest Ind. 1840SX,, SLX Control, CSS, 3-Jaw, Indexable Turret CNC LATHE, SLX Control, CSS, 3-Jaw, Indexable Turret, Steady
Specifications

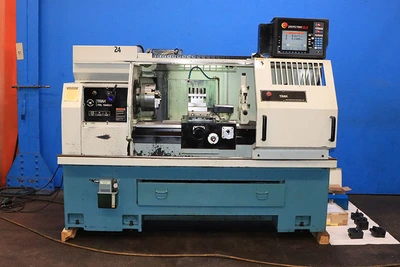

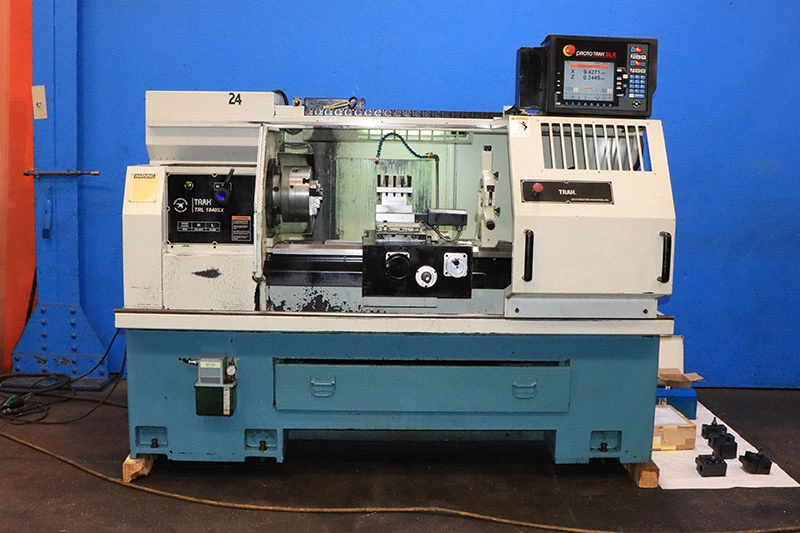

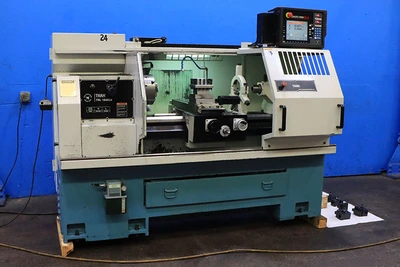

18" X 40" SOUTHWESTERN INDUSTRIES
PROTOTRAK 2-AXIS CNC/MANUAL FLAT BED LATHE
MODEL: TRL 1840SX, S/N: 062CQ14439, NEW: 2006
SPECIFICATIONS:
SWING OVER BED ............................. 18-1/2"
HEIGHT OF CENTERS .......................... 9"
SWING OVER CROSS SLIDE ..................... 9"
SWING OVER SADDLE WINGS .................... 17"
MAX DISTANCE BETWEEN CENTERS ............... 40.2"
CROSS SLIDE TRAVEL (X) ..................... 13"
LONGITUDINAL TRAVEL (Z) .................... 40"
SPINDLE TAPER, CAMLOCK, SIZE ............... D1-6
SPINDLE SPEED RANGE (2), INF VAR ........... 50 - 2500 RPM
SPINDLE BORE ............................... 2.36"
TAPER IN HEADSTOCK SPINDLE ................. #6 MT
TAPER IN HEADSTOCK SPINDLE REDUCTION SLEEVE. #4 MT

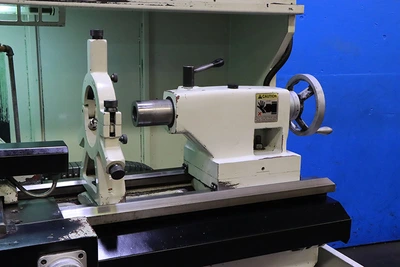

TAILSTOCK QUILL TRAVEL ..................... 6.3"
TAILSTOCK QUILL DIAMETER ................... 2.95"
TAILSTOCK QUILL TAPER HOLE ................. #5 MT
APPROX WEIGHT .............................. 4,500 LBS
APPROX DIMENSIONS .......................... 94" X 53" X 70"
EQUIPPED WITH:

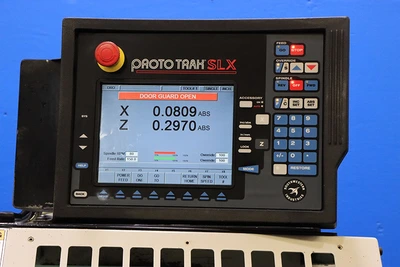

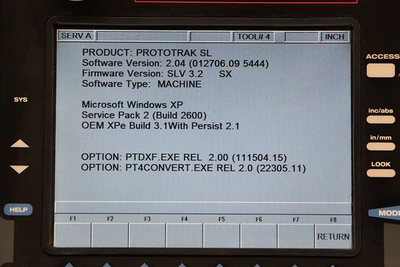

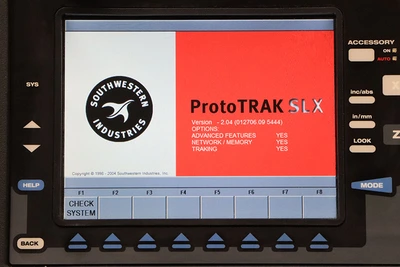

- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: SLX CNC CONTROL
- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION
- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
- SERVO MOTORS & GROUND BALLSCREWS
- AC SPINDLE DRIVE
- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE
- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS
- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS

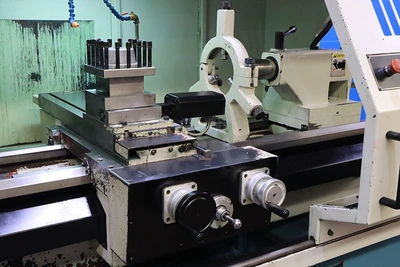

- FOUR STATION PROGRAMMABLE STAR INDEXABLE TOOLPOST

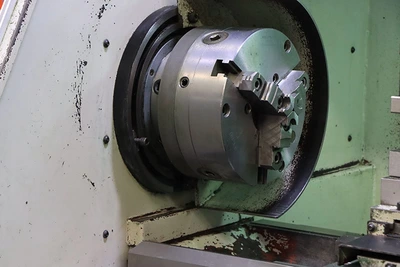

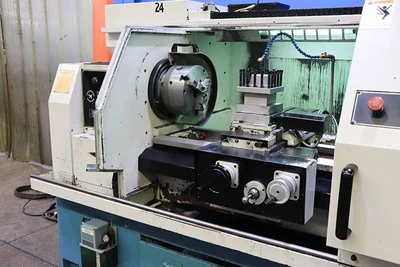

- 10" 3-JAW CHUCK

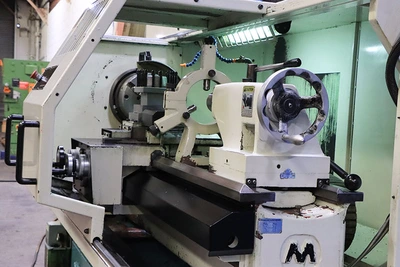

- STEADY REST
- HARDENED & GROUND BED WAYS
- AUTOMATIC LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- COOLANT SYSTEM
- 10 HORSE POWER 3/60/220 VOLT SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
