USED Cincinnati 2EA, S/N: 2M2H1P-836, Std. Machine,

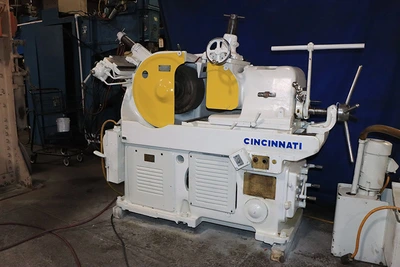

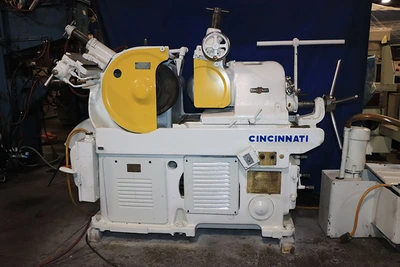

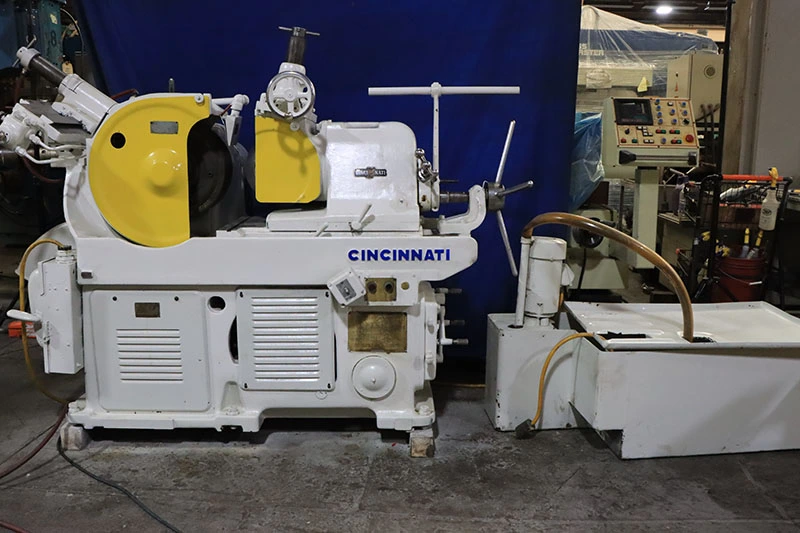

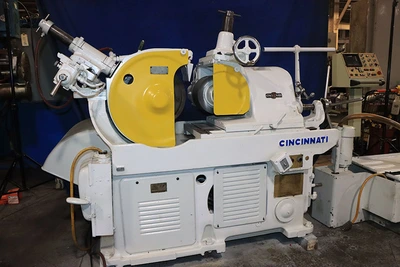

#2EA CINCINNATI CENTERLESS GRINDER

S/N: 2M2H1P-836

STANDARD CATALOG SPECIFICATIONS:

CAPACITY:

Standard work rest ...... 1/16" to 3- 1/2" Diameter

Low thru-feed work rest ... 2" to 4- 3/4" Diameter

Bar work ...(18' Long) .... 1/8" to 2" Diameter

GRINDING WHEEL:

4", 6", or 8" Width - 12" Hole

20" Maximum Diameter

14" Minimum Diameter

Speed - 1200 RPM

REGULATING WHEEL:

4", 6", or 8" Width - 5" Hole

12" Maximum Diameter

9" Minimum Diameter

Range of speeds - 12 to 300 RPM

MOTOR DRIVES:

Grinding wheel......... 15 H.P.

Regulating wheel....... 1- 1/2 H.P.

Hydraulic pump......... 1- 1/2 H.P.

Cutting fluid.......... 1/4 H.P.

Floor space............ 53" x 86"

Weight................. 6,400 lbs.

EQUIPMENT FEATURES:

Filmatic Bearings

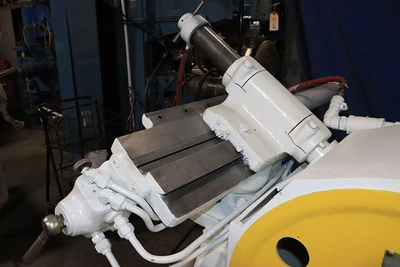

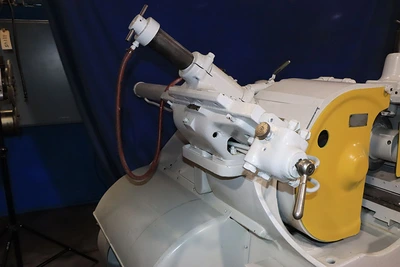

Hydraulic contour truing on grinding wheel

Screw type truing on regulating wheel

Grinding wheel mount for straight side wheel

Regulating wheel mount for straight side wheel

Coolant pump and tank

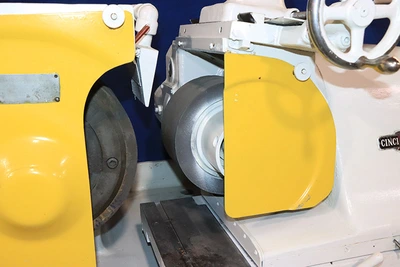

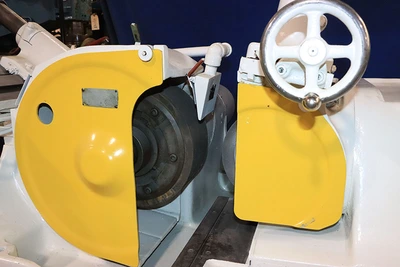

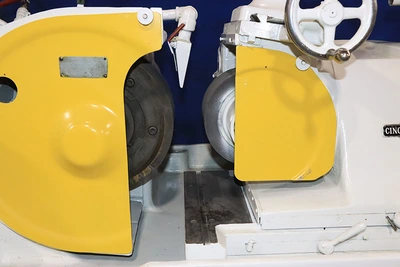

Presently Machine has 6" Wide Grinding & Reg Wheels

Machine is Wired Presently for 220 Volts

** Cleaned, Painted, Serviced & Cycled **

** In Stock, Excellent Condition **

FOR MORE INFORMATION: Call Andy at 973-497-7600
