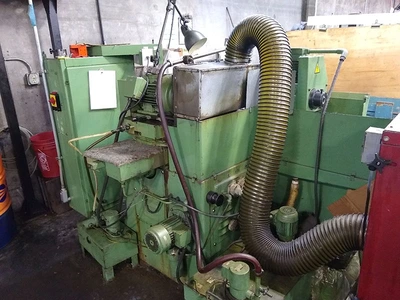

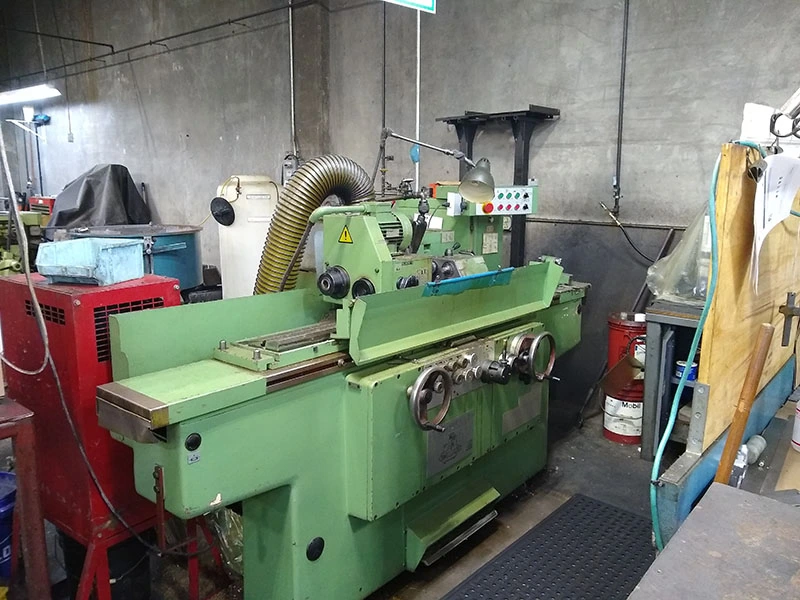

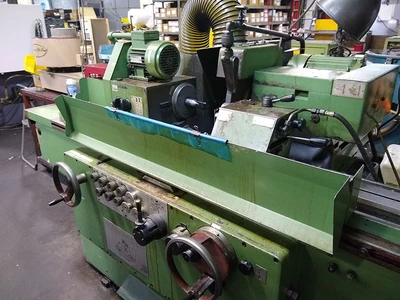

USED Erwin Junker BUAJ 28/100

       11" X 39.4" ERWIN JUNKER

    UNIVERSAL CYLINDRICAL GRINDER

MODEL: BUAJ28/1000         S/N: 229045     NEW: 1994

MAX. GRINDING DIAMETER ................. 11"

DISTANCE BETWEEN CENTERS ............... 39.4"

MAX TABLE TRAVEL .................. .... 51"

TABLE SWIVELS .......................... +/ 7°

HYDRAULIC TABLE TRAVERSE ............... 2" TO 276"

ROUGHING INFEED COARSE FOR PLUNGE

 CUT GRINDING .......................... 0.06"

FINE INFEED COARSE FOR PLUNGE

 CUT GRINDING .......................... 0.006"

AUTOMATIC INFEED OF GRINDING WHEEL

 PER TABLE REVERSAL, ROUGH ........... 0.004" - 0.157"

AUTOMATIC INFEED OF GRINDING WHEEL

 PER TABLE REVERSAL, FINE ............ 0.0006" - 0.04"

HYDRAULIC RAPID TRAVERSE (STROKE) ...... 1- 5/8"

WHEELHEAD SWIVELS, LEFT & RIGHT ........ +/- 45°

GRINDING WHEEL DIMENSIONS .......... 16" x 1.5"W  5"B

MINIMUM GRINDING WHEEL DIAMETER ........ 10"

MAX. WIDTH OF GRINDING WHEEL ........... 2.5"

GRINDING WHEEL SPEEDS .................. 2,560 RPM

WORKHEAD SPINDLE TAPER ................. #4 MT

WORKHEAD SPINDLE SPEED RANGE ........... 22.4 TO 710 RPM

SWIVEL OF WORKHEAD ..................... 90 DEGREES

WHEELHEAD MOTOR ........................ 5.5 H.P.

TAILSTOCK SPINDLE TAPER ................ #3 MT

TAILSTOCK SPINDLE TRAVEL ............... 1"

APPROX. FLOOR SPACE REQUIRED ........... 108" X 63"

APPROX. MACHINE WEIGHT ................. 5,500 LBS.

MACHINE FEATURES:

HYDRAULIC TABLE TRAVERSE

AUTO INFEED AT TABLE REVERSALS

AUTO PLUNGE INFEED

POWER RAPID WHEELHEAD ADVANCE & RETRACTION

DUAL LIVE/DEAD WORKHEAD SPINDLE

HYDRAULIC TAILSTOCK

EQUIPPED WITH:

COOLANT SYSTEM WITH ,MAGNETIC SEPARATOR

BRAND NEW EXTRA GRINDING WHEELS

BRAND NEW EXTRA CENTERS

COLLET ATTACHMENT

3-JAW CHUCK

MACHINE IS WIRED FOR 3/60/220-440 VOLT ELECTRICS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
