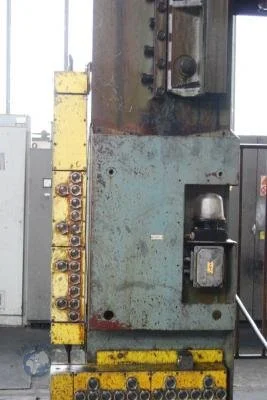

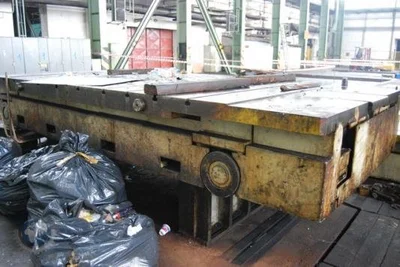

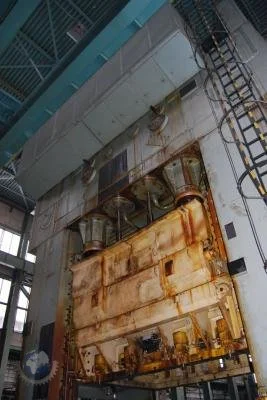

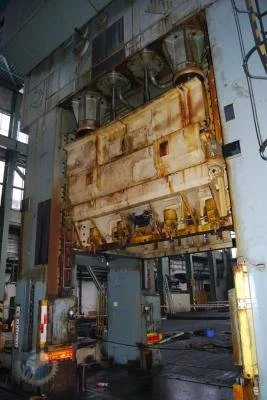

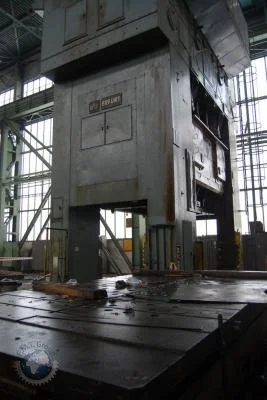

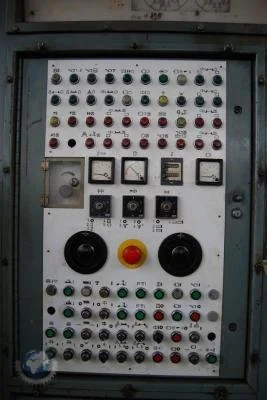

USED 1984 WMW ERFURT PD 4-HH-630+400TS
Overview

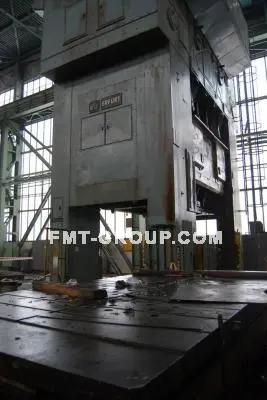

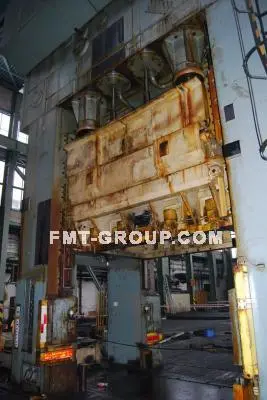

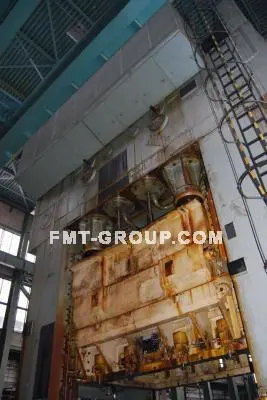

Double-action mechanical press with ejectable table, inspection after previous agreement.
Specs
Nominal forming force of drawing ram: 630 t
Drawing ram stroke: 900 mm
Nominal forming force of blank-holder ram: 400 t
Blank-holder ram stroke: 700 mm
Number of strokes at idle: 9-18 /min.
Min./Max. shut height of drawing ram tool: 1300/1800 mm
Min./Max. shut height of blank-holder ram tool: 1200/1700 mm
Die cushion in table – force (blank-holder/ejector): 150 t
Die cushion in table – stroke: 250 mm
