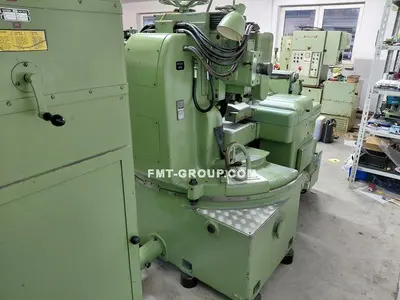

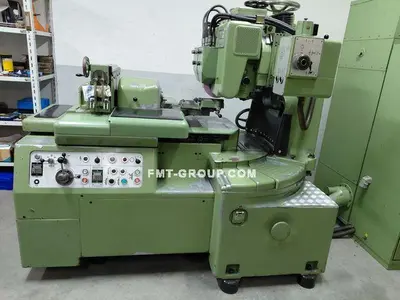

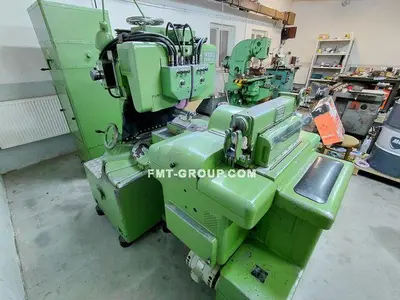

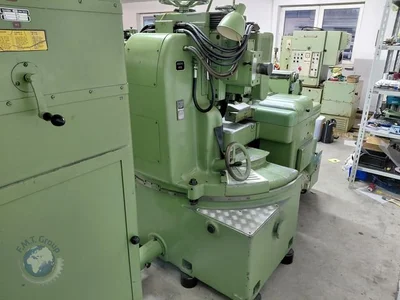

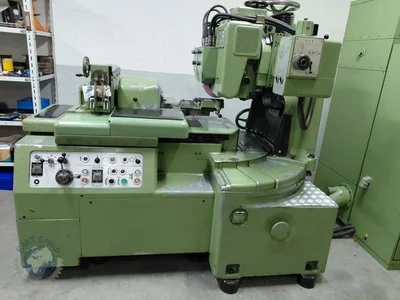

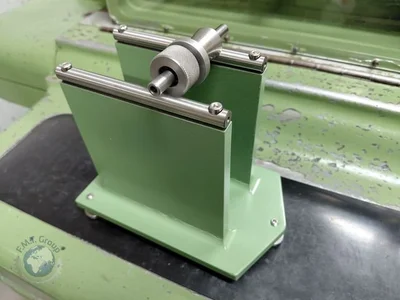

USED 1961 MAAG HSS 10
Overview
Gear grinding machine is in good technical conditin, connected under power, possible to test it.
Specs
Number of teeth: 10-75
Module: 1- 5
Maximum helix angle: 45 degrees
Maximum wheel diameter:: 150 mm
Wheel width:: 100 mm
Minimum wheel diameter (base):: 28 mm
Arbor diameter:: 19 mm
Arbor length:: 290 mm
Distance between centres: 205 - 332 mm
Grinding wheel diameter: 165 - 220 mm
Table bore diameter:: 90 mm
Indexing disc diameter:: 120 mm
Stroke: 120-440 min⁻¹ (15 ranges)
Machine footprint: 1820 x 1550 mm
