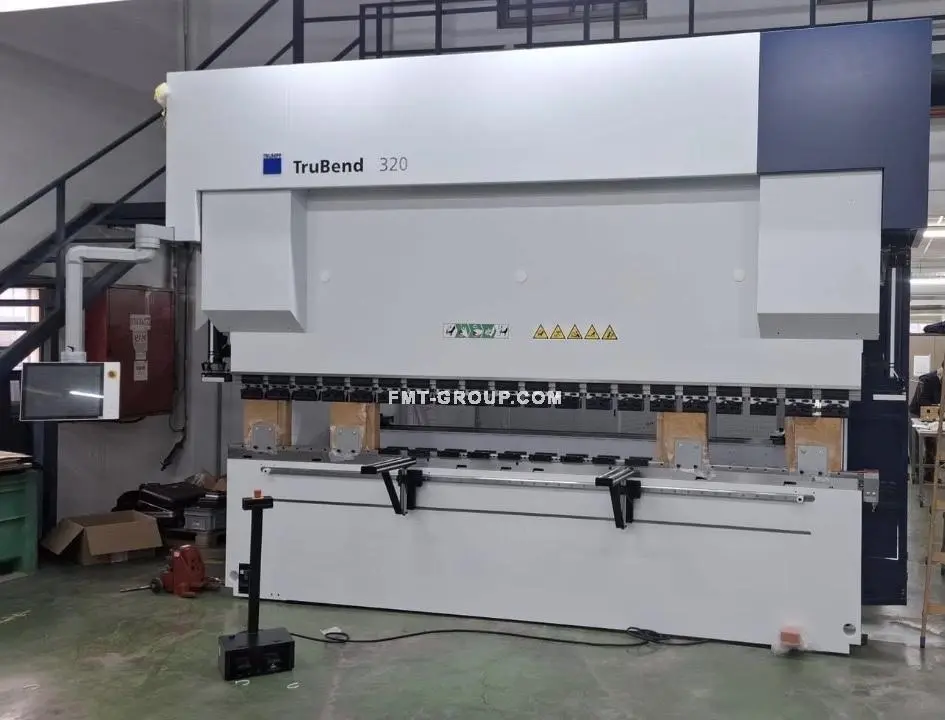

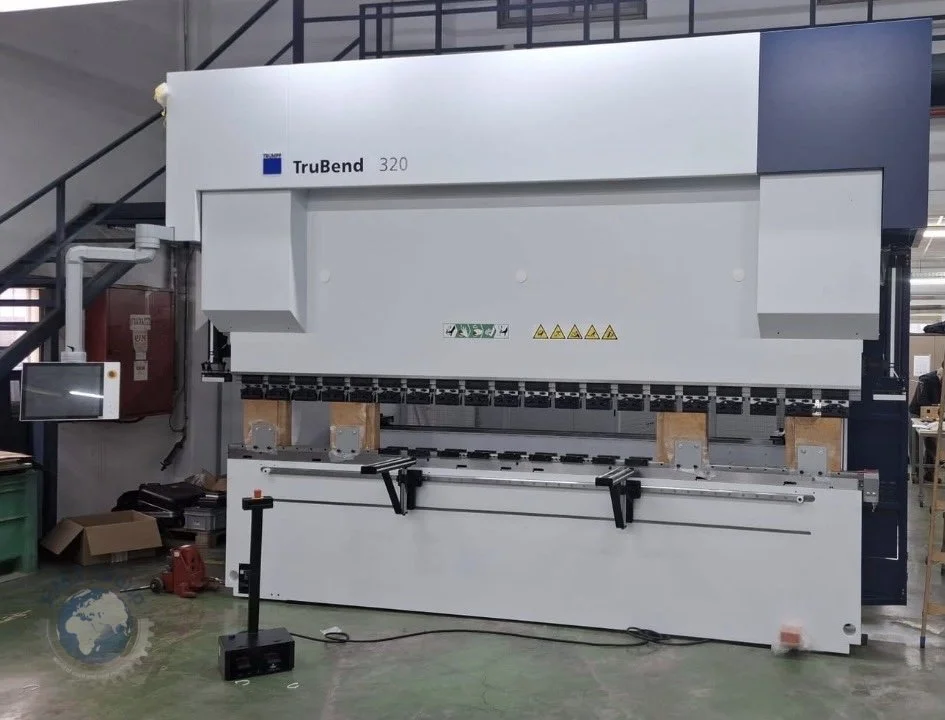

USED 2026 TRUMPF TRUBEND 320/4100
Overview
This is a new machine with a warranty.
Basic technological and technical equipment of the machine:
C-frame, Press ram, Spherical mounting of the press ram, Hydraulic upper drive, Stroke measuring system (Y-axis), Hydraulic oil filling, Oil cooler, CNC crowning, Backgauge (2 units), Machine control with 19" touchscreen, Integrated TRUMPF technological data,USB port,RJ-45 network connection,Remote Support via internet, Operator unit with foot pedal, CE marking, Standard safety equipment, Upper tool OW202/K R1 28° H=120 mm L=1500 mm, Lower tool EV004 W12 30° R1 H=100 mm L=1500 mm
Machine advantages:
4-axis backgauge
Hydraulic clamping of upper tools, Manual clamping of lower tools, CNC crowning, Storage consoles for workpiece support, Workspace lighting, Network support and DXF drawing import, BendGuard optical laser safety system, Machine operation and programming training, Press brake tooling package
Specs
Pressing force: 3200 kN
Bending length: 4,100 mm
Clear space between side frames: 3700 mm
Rapid traverse of Y-axis downward / return stroke: 110 mm/s / 100 mm/s
Usable working height: 505 mm
Dimensions L x W x H mm: 4800 x 2320 x 3410
Weight: 20800 kg
