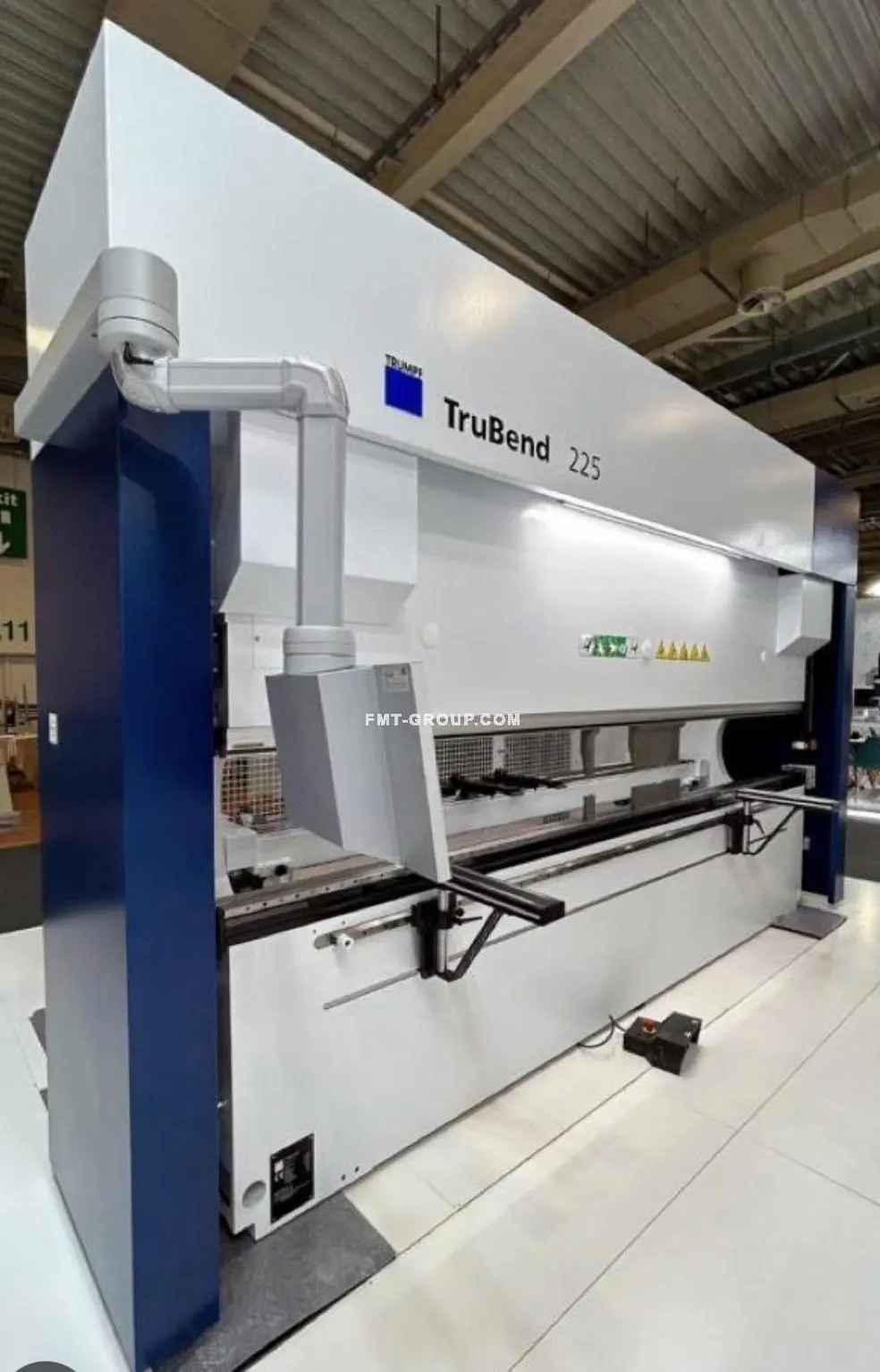

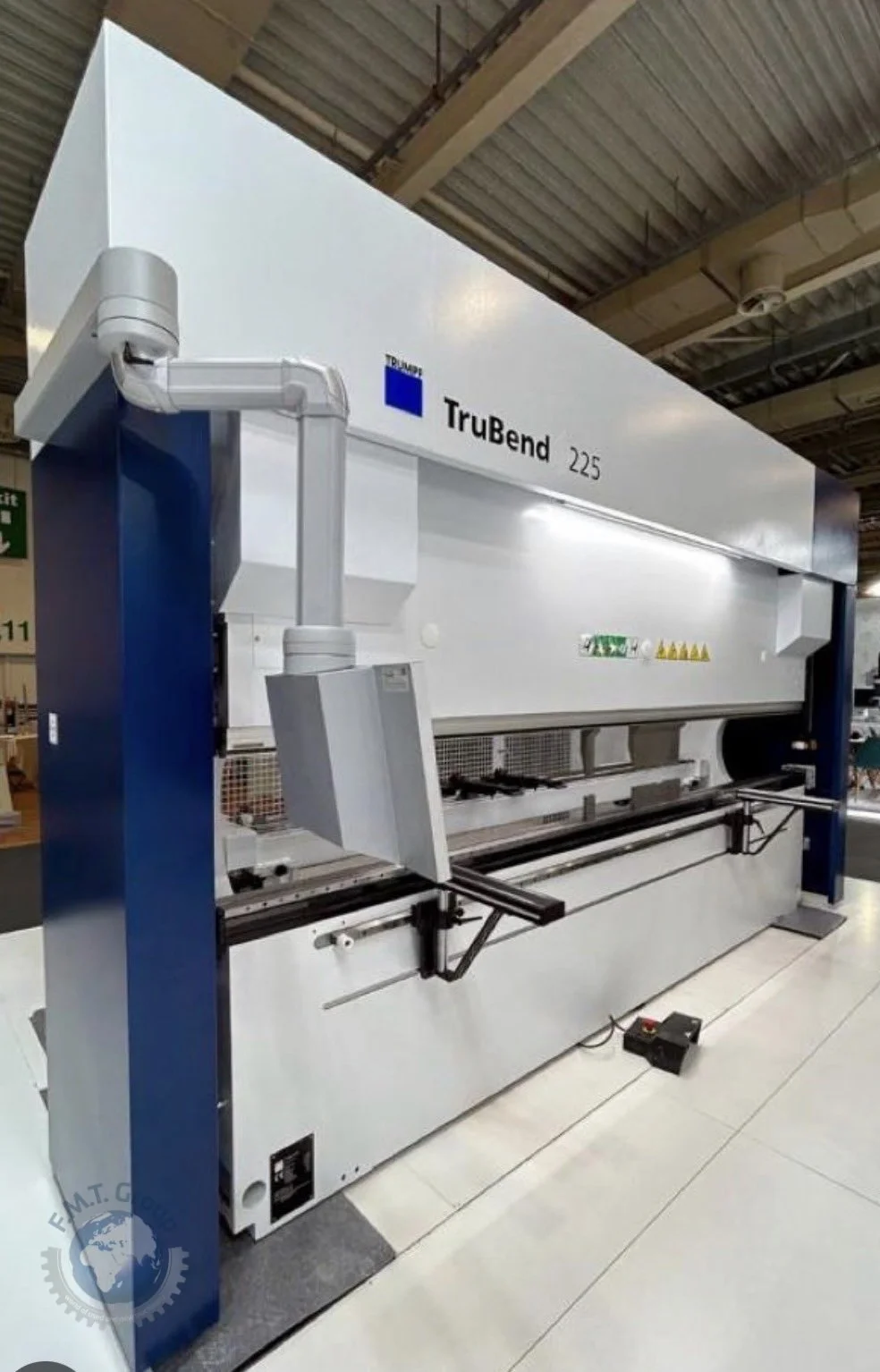

USED 2024 TRUMPF TRUBEND 225 / 4100
Overview
Press in great technical condition, under power, possibility to test.
Basic technological and technical equipment of the machine:
C-frame, Press ram, Spherical mounting of the press ram, Hydraulic upper drive, Stroke measuring system (Y-axis), Hydraulic oil filling, Oil cooler, CNC crowning, Backgauge (2 units), Machine control with 19" touchscreen, Integrated TRUMPF technological data,USB port,RJ-45 network connection,Remote Support via internet, Operator unit with foot pedal, CE marking, Standard safety equipment, Upper tool , Lower tool
Machine advantages:
4-axis backgauge
Hydraulic clamping of upper tools, Manual clamping of lower tools, CNC crowning, Storage consoles for workpiece support, Workspace lighting, Network support and DXF drawing import, BendGuard optical laser safety system, Machine operation and programming training, Press brake tooling package
Specs
Pressing force: 2250 kN
Bending length: 4,100 mm
Clear space between side frames: 3700 mm
Usable installation height: 400 mm
Outreach: 410 mm
Inclined position of the pressing ram: ± 10 mm
Working height: 950 mm
Rapid traverse downward: 170 mm/s
Y-axis stroke: 205 mm
Hydraulic oil quantity: 460 l
Dimensions l x w x h: 4800x2080x2900 mm
Weight: 15000 kg
