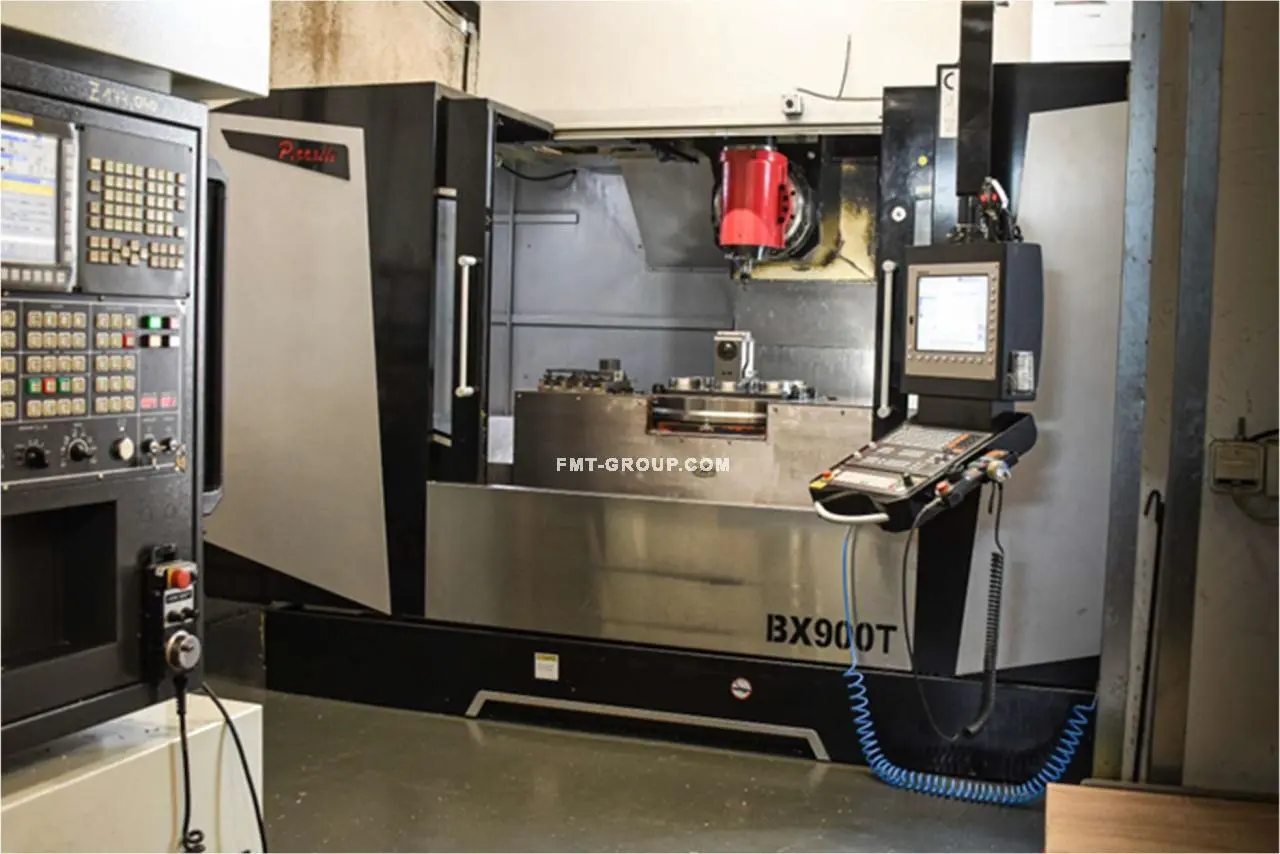

USED 2019 PINNACLE BX900T - 5 OSÉ
Overview

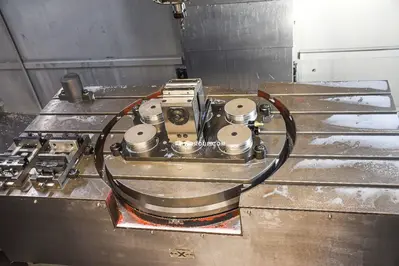

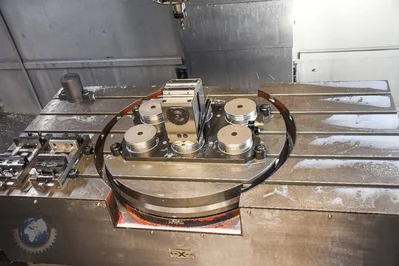

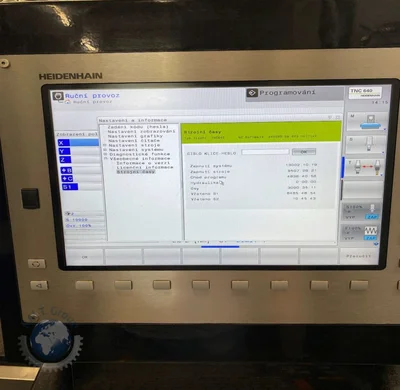

The machine is in excellent technical condition. Included accessories: clamps, tools, Heidenhain workpiece and tool probe, 2 vices with VERO clamping system by Schunk, and tool holders.
Specs
Upínací délka stolu : 1700 mm
Upínací šířka stolu : 850 mm
Osa X : 1500mm
Osa Y : 900 mm
Osa Z : 1000 mm
Max nosnost stolu /kg/ : 1200 kg
T-drážka (Š x H x V mm) : 18x150x5
Kužel vřetena : HSK63T
OTÁČKY VŘETENA (ot./min) : 15000
Jmenovitý točivý moment osy C (Nm) : 533
zásobník nástrojů : 60
ROZMĚRY (DxŠxV mm) : 4300x3260x4030
Hmotnost stroje : 15000 kg
Krútiaci monent na vretene : 93 /239 Nm
