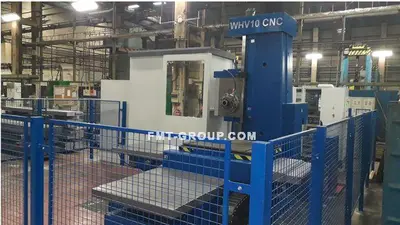

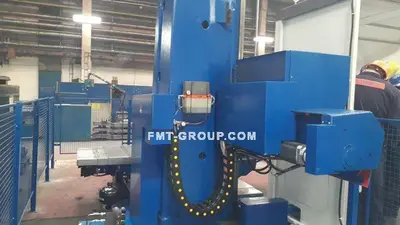

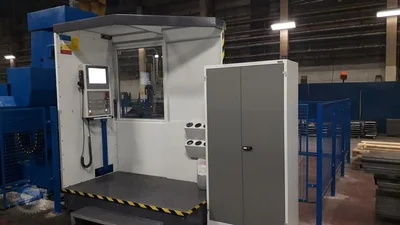

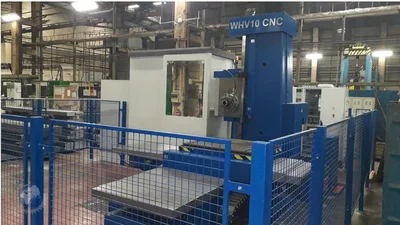

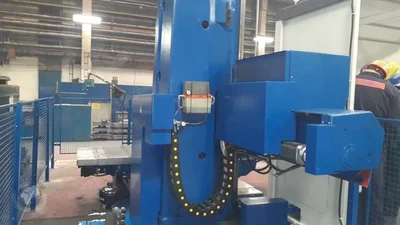

USED TOS VARNSDORF WHV 10 CNC
Overview
CNC control system Heidenhain 620
Specs
Working spindle diameter:: 100 mm
Spindle taper: ISO 50
Working spindle extension, W-axis: 540
Max. spindle speed: 2500 rpm
Vertical adjustment of working spindle axis Y: 1030
Transverse table travel – X-axis: 1250
Longitudinal column travel – Z-axis: 900
Table clamping surface: 1000 x 1120
Maximum table load (workpiece weight): 3000 kg
Electric motor power for spindle drive, C-axis: 1PH... SIEMENS
Power output: 24 kW
Control system: HEIDENHAIN TNC 620
