USED 2011 MÜLLER OPLADEN RB 1150/5
Overview

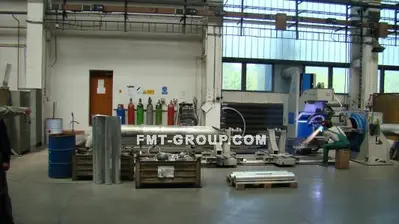

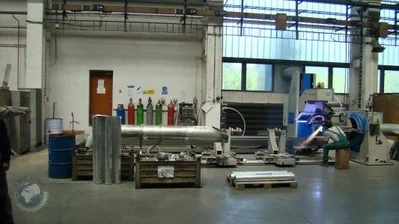

It is a 3D flamecutting machines for steel and Al tubes. Can be inspected full functional under power at present.
Specs
Clamping range: 50-1150 mm
Oscillation range for welding phase: +45°/-45°
Torch rotation: 380°
Min. cutting range in front of chuck: 300 mm
Max. cutting range in front of chuck: 6000 mm
Chuck speed range: 0-10 /min.
Max. static load in chuck: 7500 N
Cutting carriage speed: 0-15000 mm/min.
Total power consumption: 13 kVA
Machine dimensions L x W x H: 7000x4000x3000 mm
Total weight: 5000 kg
