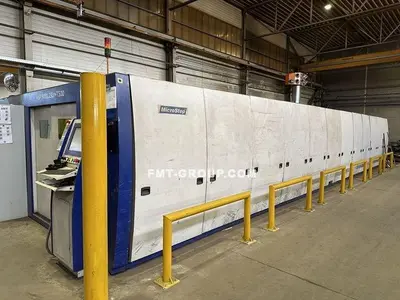

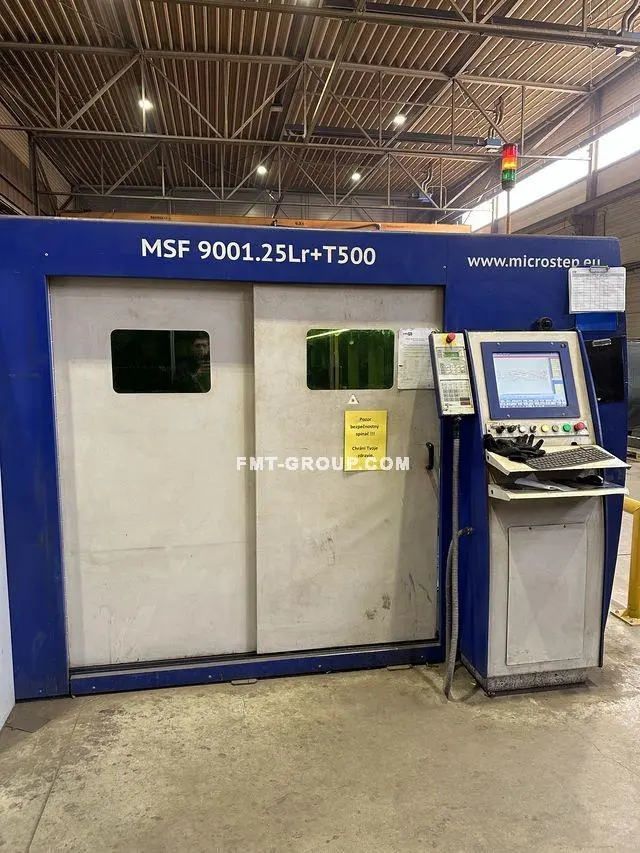

USED 2015 MICROSTEP MSF 9001.25LR+T500

The machine in a good technical condition, in operation. Inspection and testing after previous agreement.

Production 2015 → General maintenance April 2022
- working area 9000 mm x 2500 mm (sheet 9x2.5 m)
- time of cutting 24000 mth
- Lubrication system: automatic
- Beam guidance: via light cable

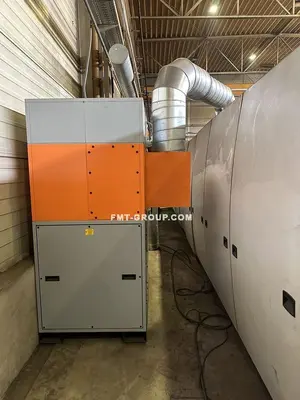

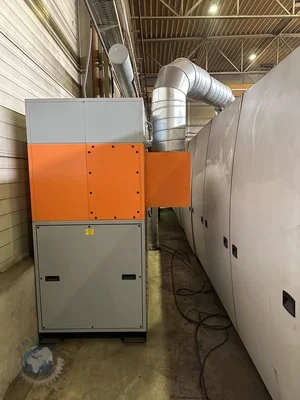

- Extraction: Donaldson DFPR08 – R, Voltage 3X400V/11KW, frequenz 50Hz/ph3, net weight 1300kg

Source power: 10kW

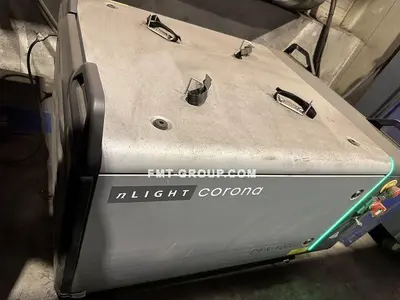

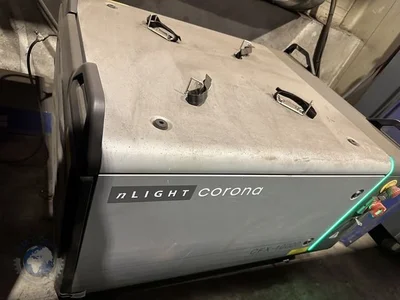

- Source: nLight CORONA-CFX-10000
- Head: Thermacut EX-TRABEAM-Pro-360 komplet
- Positioning speed: up to 130m/min when moving in the direction of one axis 140m/min when moving in both axes
The maximum cutting capacity of the source with a power of 10kW:
- Up to structural steel of 25 mm

MACHINE EQUIPMENT:
• Automatic lower slag conveyor
• 1x slag drawer
• Suction segments under the grate
• Pallet table changer 2 tables
• Calibration station for bevel cut rotator
• Automatic nozzle cleaning
• Touch LED panel
• Automatic targeting of sheet rotation
• Adaptive cutting – the head adapts itself to the sheet (e.g. corrugated sheet)
• Remote support
• protective glass against lens contamination
• camera in the head
• 0-point laser sight
- Complete technical documentation
- Software for programming the machine 2x Asper license
- Consumable parts, e.g. (nozzles, head glasses, rings...)
-Possible to Bevel cut of rounds, pipes, profiles in separated station near sheet cutting
