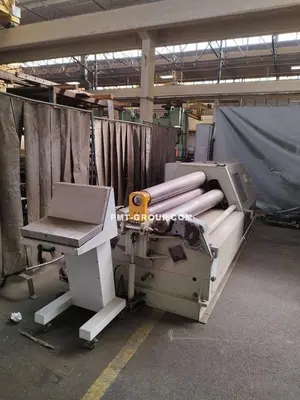

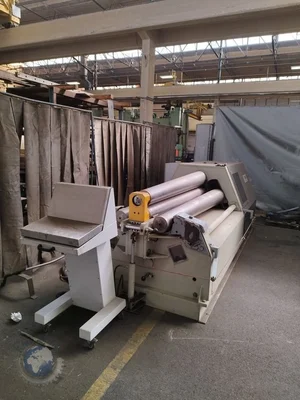

USED 2017 IMCAR 4 RH 4-3 2000X3
Overview
Machine is in good technical condition.
Hydraulic 4 roll plate bending machine with double pre-bending
Fully hydraulic
CNC machined main frame components
Oversized hydraulic cylinders to reduce working pressure and ultimately increase machine longevity and overall durability
Two hydraulic motors with planetary reducers for rotation of lateral rolls

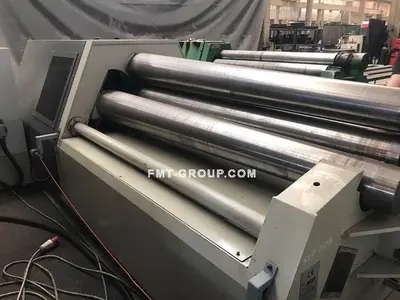

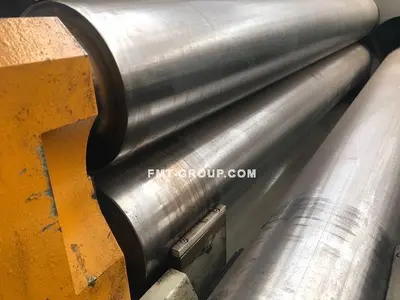

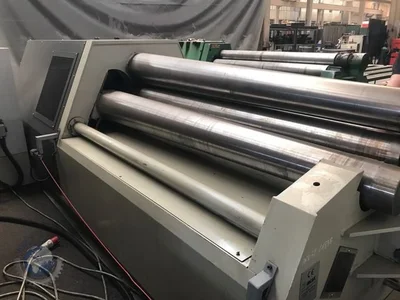

Hardened rolls
Industrial grade mobile control console on wheels
Push buttons controls for parallel movement and rotation of rolls

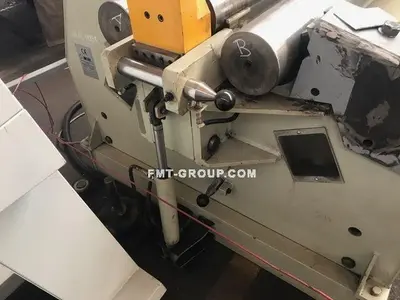

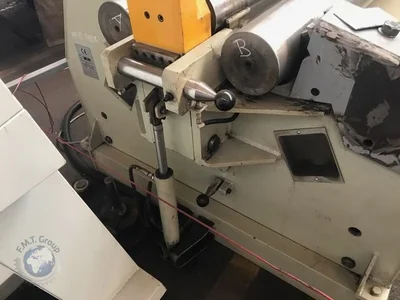

Hydraulic drop end operation from control desk
7yi0ek3l9m
Hydraulic parallelism of lateral and pinching rolls maintained by PLC and proportional valve system
Hydraulic inclination of lateral rolls for conical bending direct from control desk through selector switches
Adjustment of pinch by regulator and pressure gauge with easily adjustable outside switch located on the machine
Siemens OP270 CNC controls for automatic production and repeatability
Specs
Table length: 2050 mm
Max. thickness: 5 mm
Drive type: hydraulic
Machine weight:: 5200 kg
Machine dimensions: 4785 x 2265 x 1550mm
Diameter of upper and middle rolls: 248.5 -170 mm
Diameter of side rolls: 248.5 - 166.94 mm
