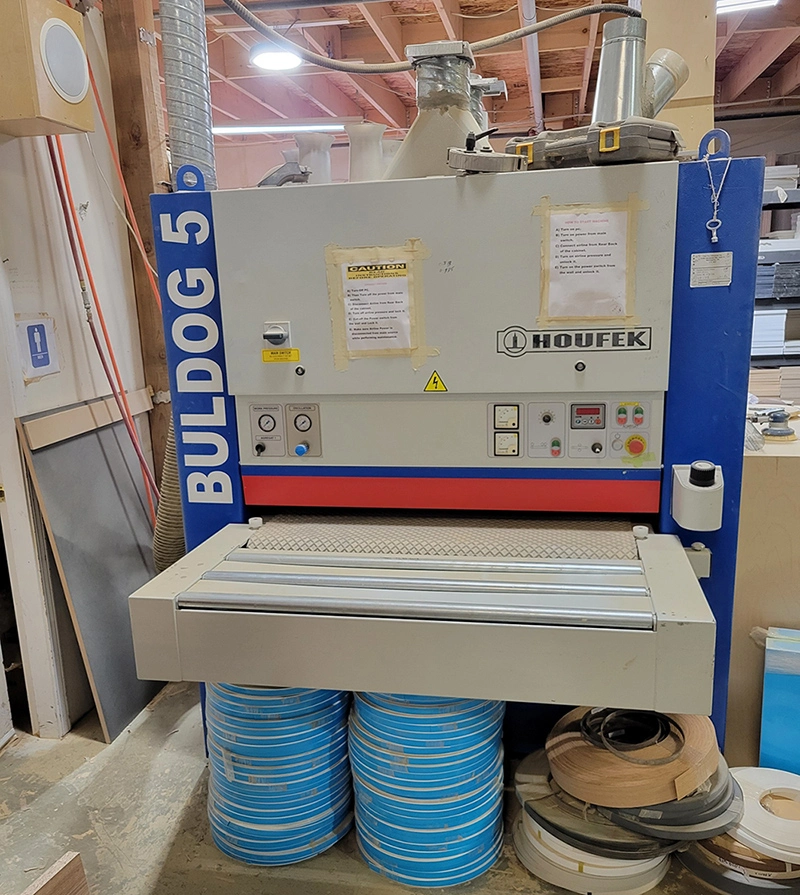

USED 2014 HOUFEK BULLDOG 5-2M-1100-RC HOUFEK BULLDOG 5-2M-1100-RC
Overview
Frame is welded out of mild steel profiles with 5 ? 6 mm side width. Flanged drive motors for drive of working units are hung at the bottom of frame. Hanging of motors is managed in vertical slots of support frame plates.
Control Panel ? Right Front
2 Amperage meters
Feed speed control
Digital setting for table
Joy stick for table rise/fall
Start/Stop buttons for sanding heads
Control Panel ? Left Side
Control switch for pneumatic rise/lower front contact roll
Pressure control for oscillation control of sanding belts
1st sanding unit ? Steel Grooved Roll @ 160mm dia.
2nd sanding unit combination ? Rubber roll @ 45? Sh @ 160mm dia. + Polish pad 50mm wide
Motorized work table height adjustment
Star-Delta switch

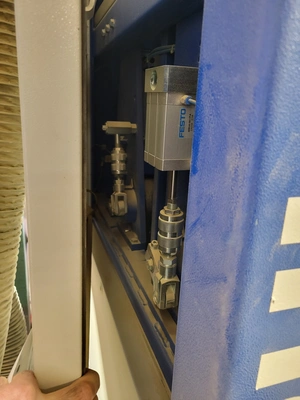

1st roll pneumatically lifting from control panel
2nd roll pneumatically lifting from control panel
Mechanically adjustable polish pad
INFRA sensor for sanding belt centering
LED display for table position
Workpiece thickness measuring ? positioner
Rubber pressure rolls @ 55mm diameter
Electromagnetic pneumatic disc motor brake
CSA components
Provincial electrically inspected
