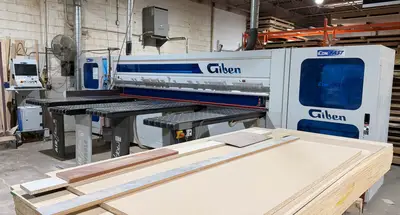

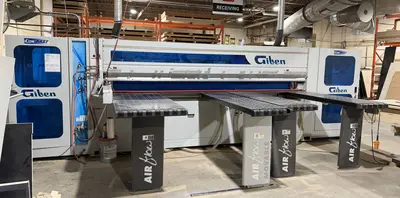

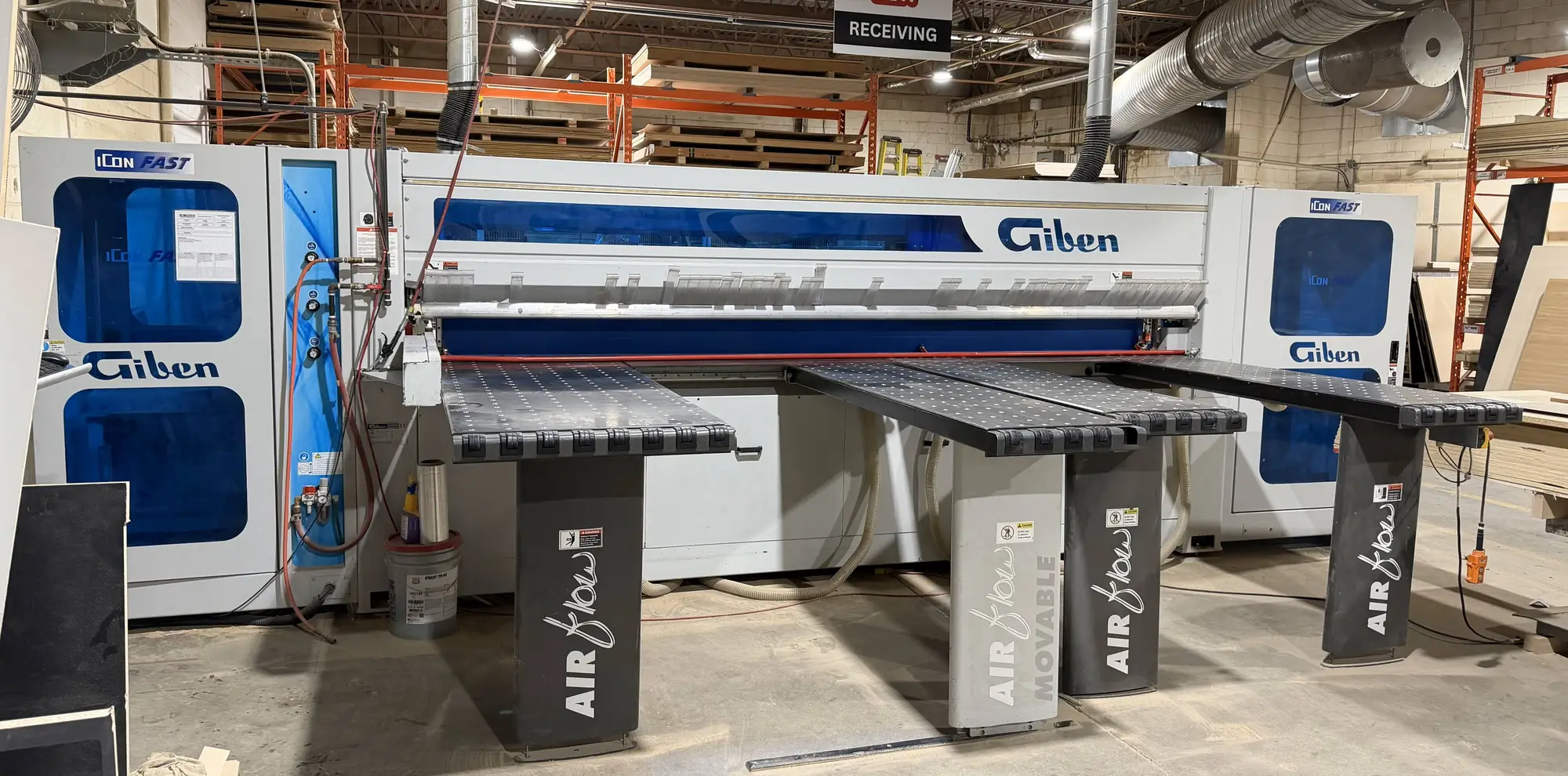

USED 2017 GIBEN ICON FAST SPLM XY
Overview
Maximum cutting length: 3800mm
-Pusher stroke: 4100mm
-Working table standard height: 950mm
-Saw blade projection: 150mm
-Main motor: 40 HP
-Scoring motor: 2 HP
-Main blade diameter: 530mm
-Scoring blade diameter: 215mm
-Saw carriage forward speed: 1-240 m/min
-Saw carriage return speed: 240 m/min
-Saw carriage traverse motor: linear
-Double pressure beam

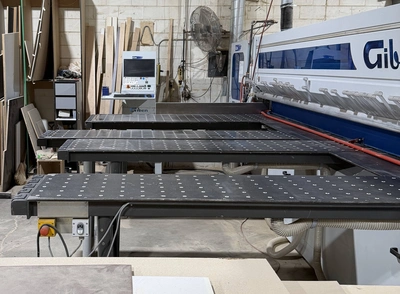

-Four (4) 2000 x 510mm air tables, one (1) second from the fence) is moveable

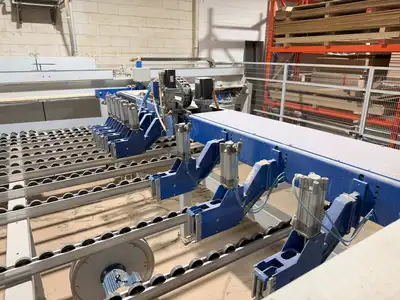

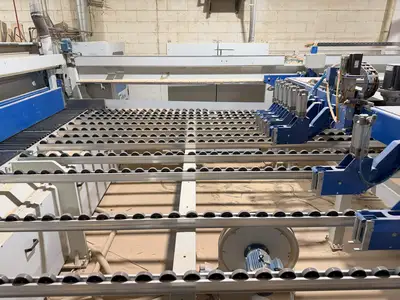

-Ten (10) roller profiles
-Y cut with linear drives
-Blade cooling by air jet
-Inverter on main blade
-Remote scoring adjustment
-Remote start/stop on rip side
-Automatic saw blade projection
-Pusher travel: 3850mm
-Pusher forward speed: 1-80m/min
-Pusher return speed: 80m/min
-Pusher motor: brushless
-Side aligner stroke: 70-2200mm
-Minimum strip width: 70mm
-G-Vision controller on Windows 7 operating system
-G-Vision on-board optimizer on the machine controller
