Used 2004 GIBEN ONIX 105 SPT Single-Line Beam Saws Ontario CA | Aldan Woodworking Machinery #1252748
Used

USED 2004 GIBEN ONIX 105 SPT

Ontario, Canada

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Aldan Woodworking Machinery
148Listings|10Followers
View seller profile
Overview
Single-Line Beam Saws
GIBENONIX 105 SPT2004

-LIFT TABLE SPECIFICATIONS
-Lift table dimensions 3800 X 1600mm (149.5" X 63")
-Lift table stroke 800mm (31.5")
-Prepared for loading from the side (rip cut end)
-Idle table rollers
-Maximum stack height without a pit or raising the machine is 680mm (27")
-Raising and lowering speed is 700mm/min (27.6"/min)
-2 front aligners behind the cut line
MACHINE BASE SPECIFICATIONS
-Cutting length 3800 mm (12.5 ft.)
-Saw blade projection 105mm (4.14")
-Grippers opening 105mm (4.14")
-Maximum depth of clean cut 93mm (3.7")
-Main saw blade diameter 380mm (15")
-Main saw motor 13.2Kw (18Hp)
-Scoring saw blade diameter 180mm
-Scoring saw motor 1.1Kw (1.5Hp)
-Pneumatic quick change for main and scoring blades
-Automatic main blade projection control depending on book height being cut
-Saw carriage traverse drive: Inverter
-Saw carriage feed speed, variable 5 to 100m/min (16 to 328ft/min)
-Saw carriage return speed 100m/min (328ft/min)
-Double roller side aligner
-Automatic positioning of side aligner
-Pneumatic locking mechanism of side aligner
-Overall stroke of side aligner 1250mm (49")
-Minimum strip width that can be aligned 70mm (2.75")
-Pneumatic quick saw blade release
MACHINE PUSHER SPECIFICATIONS
-Pusher drive AC brake motor driven by inverter
-Pusher guidance by rack and pinion with plus round guide bar
-Pusher forward feed speed (recommended at 25m/min for safety (82ft/min))0.8 to 60m/min (1 to 196ft/min)
-Pusher return speed 60m/min (196ft/min)
-Support rollers in pusher area: Nine (9) roller profiles rails
-Number of floating grippers: Seven (7)
AIR FLOTATION TABLE SPECIFICATIONS
-Four (4) 510 x 2000mm (20 X 79") air flotation tables
-Melamine sliding shelf between the first 2 tables fence side
-Grooving option
-CE safety fencing

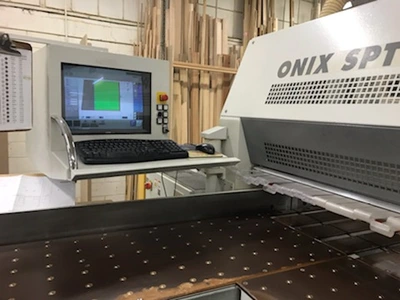

-CONTROLLER
-Based on Windows XP or Windows 2000
-G-VISION is the IBM PC based computer controller with graphic operator guidance, automatic and absolute operation and customizable diagnostics for easy troubleshooting
-On board G-Vision pattern planner
-Label printing (Printer not included)
-Program downloading from an office computer to the machine controller (G-Vision) via disk or network
-CSA approved for operation in Canada
