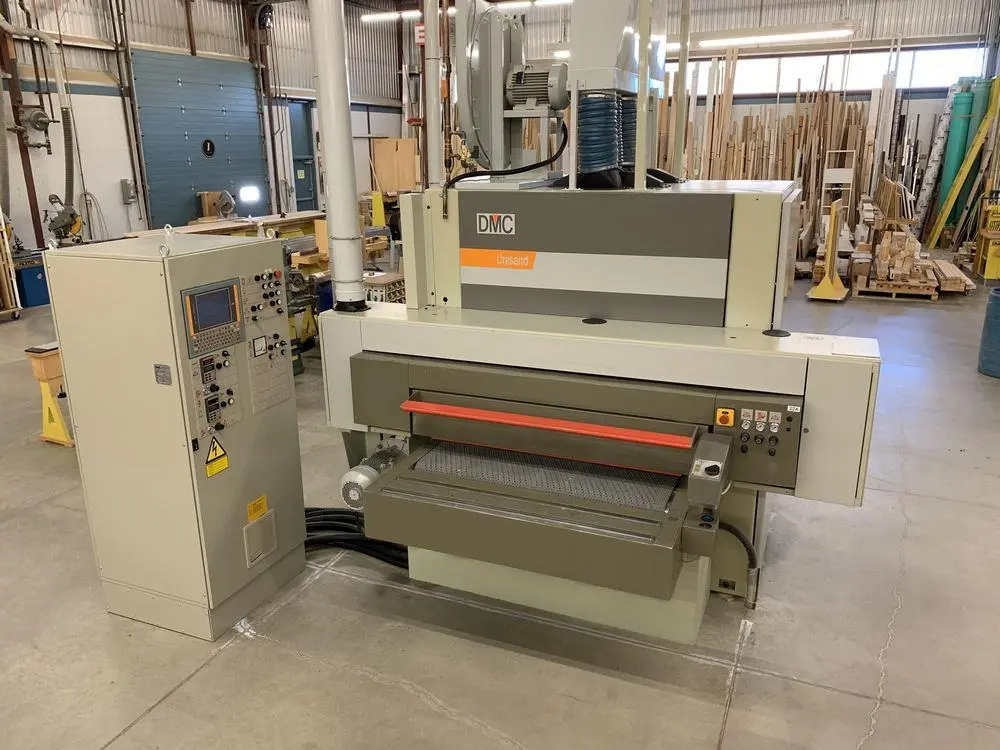

USED 1996 DMC UNISAND

-DMC Unisand panel sanding machine with cross grain station
-Working width: 1300 mm (51")
-Minimum working thickness: 3 mm (1/8")
-Maximum working thickness: 180 mm (7")
-Voltage: 600 Volts / 3 phases / 60 cycles

Feed mat:
-Made of perforated rubber
-Equipped with a vacuum system
-Forward speed from 4 to 19 meters / minute
-4 Kw motor

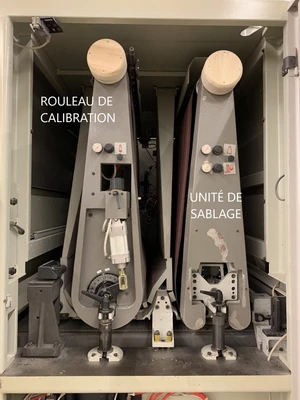

Sander with three (3) stations:
-Horizontal chevron belt (stroke) electronic segmented - 13 Kw motor, 152 x 6045 mm (6 x 238"), variable speed control 0 to 18 meters / min.
-300mm diameter roller with calibration - 18 Kw motor, 1321 x 2616 mm (52 ​​x 103"), 2 winding motor (2 speeds)
-Longitudinal sanding unit with pneumatic electronic segmented pad - 13 Kw motor, 1321 x 2616 mm (52 ​​x 103"), variable speed control 0 to 18 meters / sec.

Inclusions:

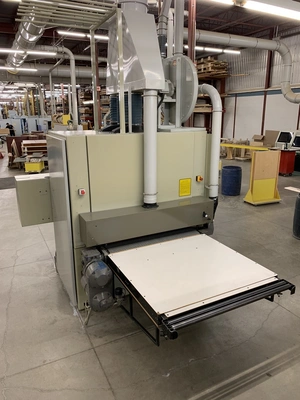

-Extendable table made to measure and integrated into the outlet. Closed dimension: 127 x 129 cm (50" x 51"). Open dimension: 127 x 198 cm (50" x 78")

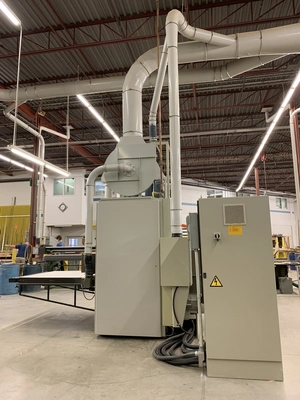

-Custom piping and adapter for dust collector
