USED 2005 HEESEMANN LSM-8/3-OSR

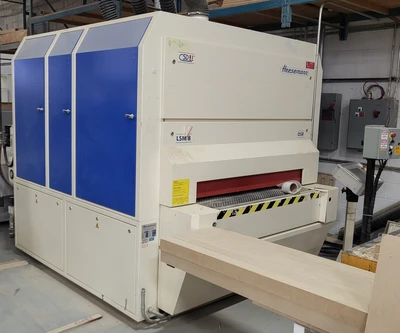

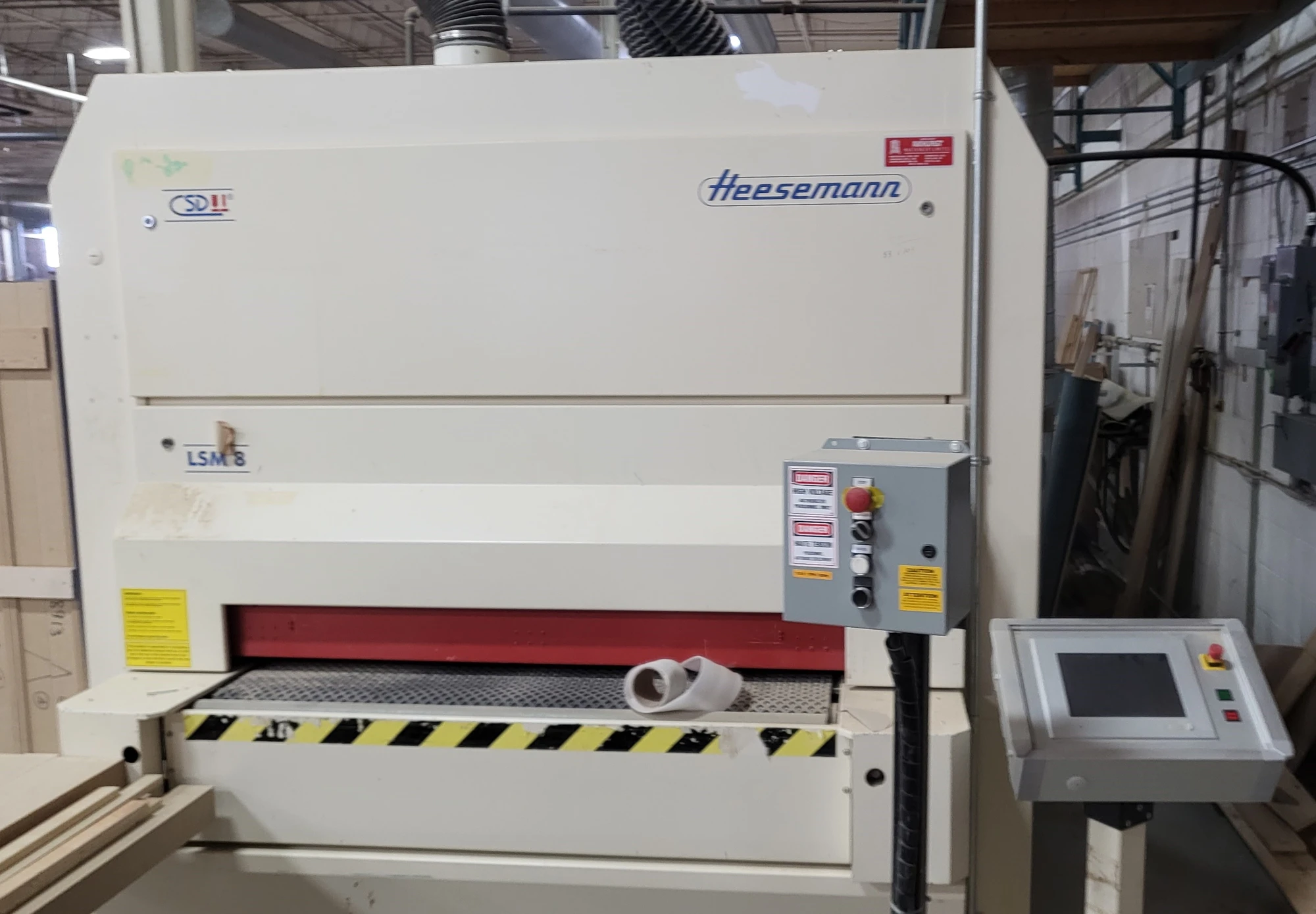

HEESEMANN LSM-8/3-OSR Wide Belt Finishing Sander
-52"
-(3) Heads; Equipped with: (1) longitudinal segmented platen head and (2) Orbital Platens
? 1st Head: Longitudinal segmented platen head. Segmented Polishing Platen, 20 & 27 HP dual speed motor, electronically controlled segments to conform to panel size,.2620 x 1350 mm (91.4 x 53.2") Sanding belt.
-Equipped with HEESEMANN`s patented "CSD" selective pressure adjustment
system, sensors placed every 16 mm (5/8") sense part configuration; pressure for each segment, to eliminate sand through, can be pre-programmed to provide less pressure on the outer edges or more in the center if desired. The "CSD" computer control will hold a maximum of (20) programs.
? 2nd & 3rd Heads: OSR Dual orbital action head with (1) high-speed orbit
on sanding pad, powered by 3 kW (4.5 HP) motor. Secondary oscillation movement of platens powered by 1.5 HP motor. Upstream and downstream vacuum chutes on each head for dust localized dust pickup. - Platens feature "quick change" abrasive material; Both orbital heads with variable speed inverter drives.
? Outfeed Rotary Brush with cleaning brush loading with single end adjustment , 6" max. dia., 3.4 HP motor.
? Variable feed speed from 13 to 82 FPM, 6.5 HP feed drive.
? Infeed and outfeed Ssissor Lift and Control box shown are not included.
? Motorized thickness opening 1/4" to 3-5/32" max. -
? Power Consumption: 63 KW, 75 Amps.
? Separate display console for CSD control.
