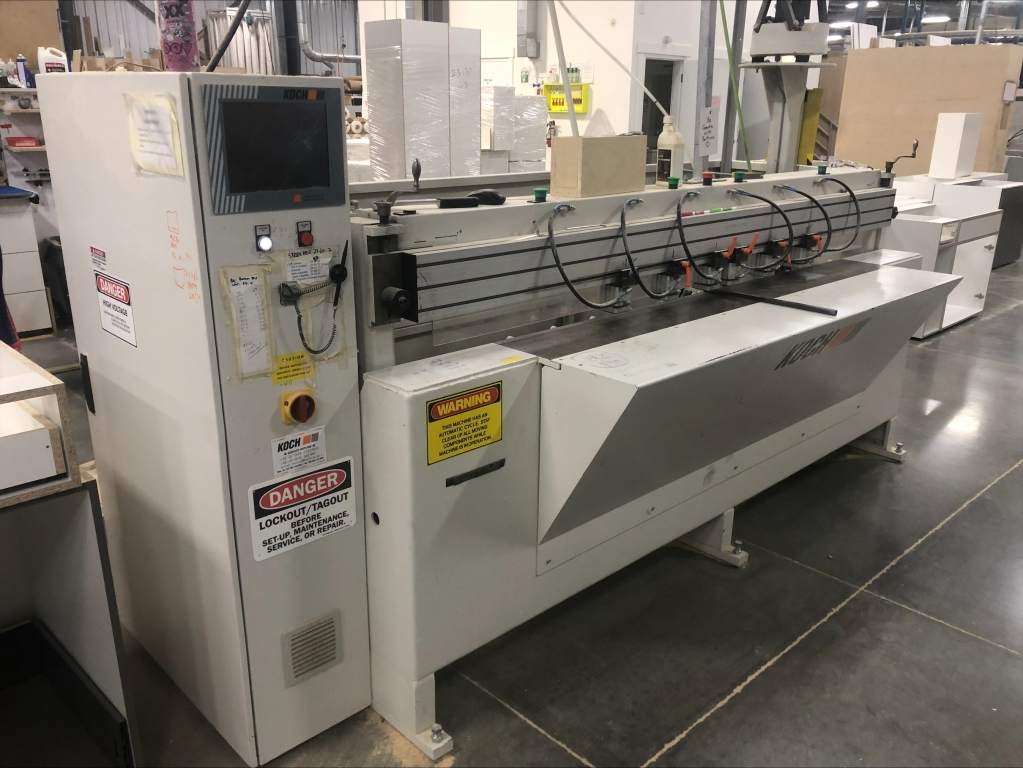

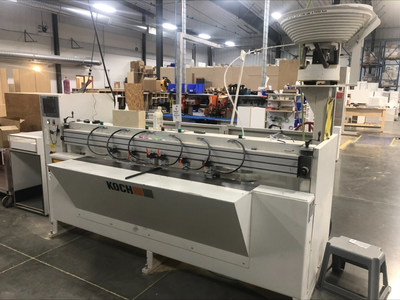

USED 2008 KOCH SPRINT PTP-3/1800
Overview
-Working field: 1800mm / 2x 900mm

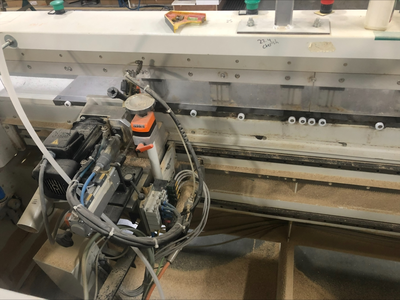

-1x horizontal drilling station 0,9 kW , drill speed 7200 rpm
drilling depth 30 mm
-Drill holder 10 mm, total drill length 85 mm
-2x glue application and dowel insertion station
-2x dowels 10x40mm, dowel projection 15-20mm
-Dowel center distance 96mm
-Workpiece support table 1700 mm
-6x workpiece clamping cylinder
-Central lubrication with hand pump for grease lubrication
-NC positioning of the height adjustment of the drilling and doweling station (z-axis)
-Axis with position control, travel speed 12m/min
