USED 2009 HOMAG WEEKE BHP VANTAGE 43M HOMAG WEEKE BHP VANTAGE 43M

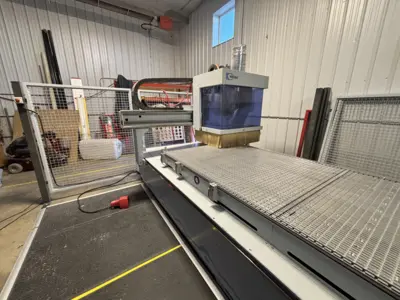

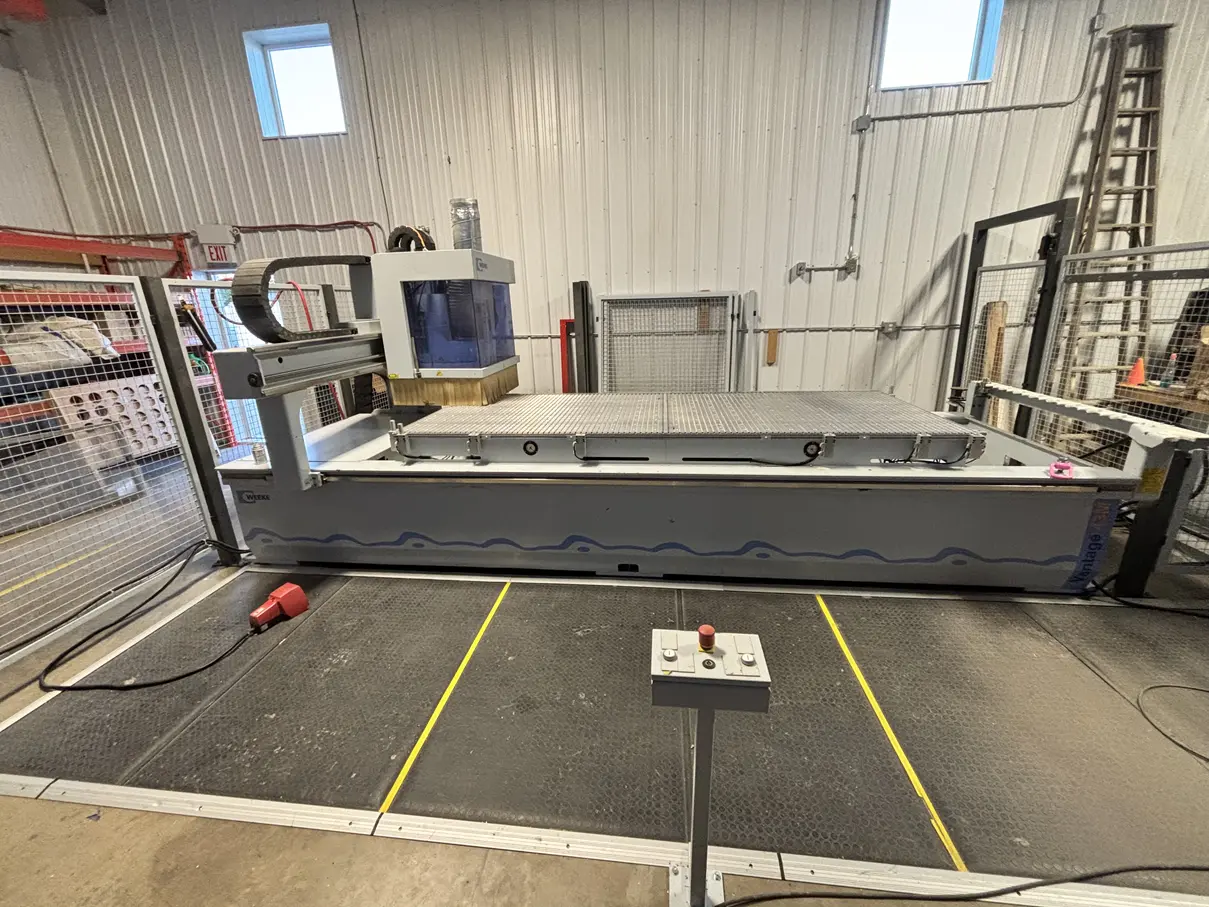

2009 Weeke Homag Vantage 43M
4 x 10 Nested base cnc machining centre

WEEKE Optimat BHP Vantage 43M machining center, CE marked,
with Auto tool changer and Multi drill bank
1 milling spindle (12 kW) HSK with liquid cooling, speed up to 24,000 rpm, 8-station rotary tool changer,
8-station pickup tool changer,
drilling head with 6 (4 in X + 2 in Y) horizontal spindles and 12 (7 in X + 5 in Y) vertical spindles, pivoting grooving saw unit, axis travel X, Y, Z, 3,130 x 1,250 x 125 mm, control with Woodwop software 6.0, vacuum pump 300 m?, aluminum grooving/grid table, crosshair laser for positioning, central suction connection, safety mat system, support table LxWxH 3,130 x 1,250 mm, travel X 3,945 Y 1,970 Z1/Z2 325/185 mm, space requirement LxWxH 6,330 x 4,100 x 2,240 mm, More info and pics available upon request

Spindle rotational speed:
24,000 rpm
X-axis travel:
3,130 mm
Y-axis travel:
1,250 mm
Z-axis travel:
125 mm
Power:
12 kW
Current frequency:
50 Hz
Voltage:
400
Number of phases:
3
Manufacturing country:
Germany
Type:
horizontal
Overall dimensions:
6,330 m ? 4,100 m ? 2,240 m
