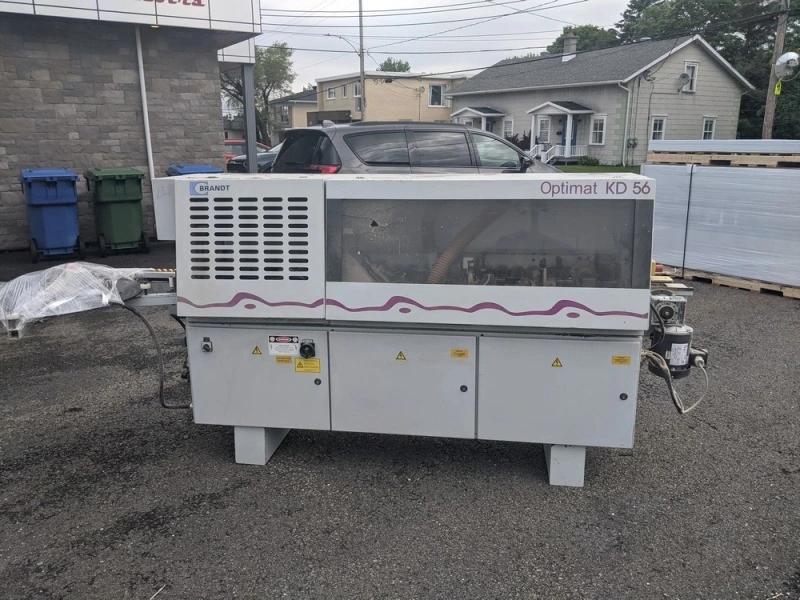

USED 2001 BRANDT OPTIMAT KD-56

-Edge thickness capacity: .04-3mm (1/8")
-Automatic coil and strip feed magazine
-Guillotine for 3mm PVC banding
-No limit switches, electronic line control.
-Compact size "Hot Melt" glue tank, with fast start-up and reversible rotation glue applicator roller.
-Pressure section: one (1) drive and two (2) idle roll, pneumatically controlled.
-Vertical travel double motor front and rear end trim
-0.25 HP (12,000 RPM) motors
-Top and bottom flush/bevel trimmers, 0? to 15?, 0.35 HP (12,000 RPM) motors. Digital readouts for vertical & horizontal adjustments.
-Top and bottom PVC scraping unit for up to 3mm radius with digital readouts for setup adjustments. (Currently off the machine. Must be reinstalled)
-Top and bottom buffing unit, 0.15HP (2,750 RPM) motors
-Feed speed: 30 FPM
-Rubberized chain link pads
-Digital height indicator on hold down beam
-Operator control panel
-Electronic motor brakes on trimmers
-200 Hz electronic frequency inverter
-Sound and safety enclosure with window
