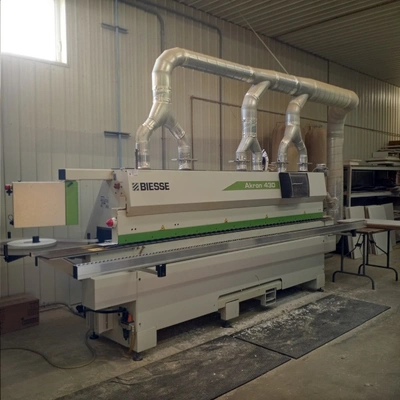

USED 2014 BIESSE AKRON 430

-600V integrated transformer
-One-sided edgebander with glue pot

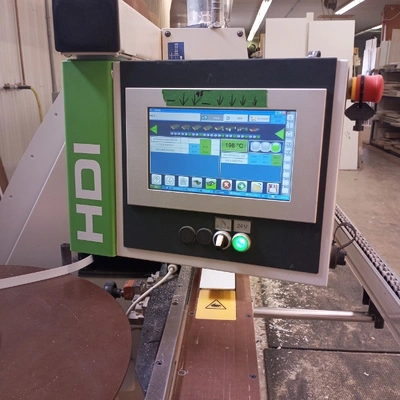

-CN control and command system with TS10 digital controller, 10`` touch screen LCD graphic display, WINDOWS CE operating system, USB port
-Chain drive and upper presser
-Group of pressure rollers

Workstation :
-Pre-milling
-Gluing unit with pellet pot
-Adjustable pneumatic pressure unit
-End cutting unit 2 tilting saws 0-15˚ for bevel cutting motor 0.50Kw
-Fine trimming top and bottom trimming unit, 0.65Kw motor
-Radius scraper unit for 3mm pvc finishing
-Polishing brush unit, 0.37Kw motor

Specifications:
-Minimum & maximum thickness of the part: 10 to 60mm
-Minimum room width: 85mm
-Minimum piece length: 140mm
-Tape thickness in roll: 0.4 to 3mm
-Thickness of the pre-cut wooden strip: up to 8mm x 45mm high
-Variable training speed: up to 12m/min
-Weight: 1350 kg
-Automatic start of the groups and motors foreseen in the program.
-2nd pass direct selection key.
-Management of 8 digital axes
-Lists of programs with manual and/or automatic launch.
-Diagnosis of errors with codes and comments.
-Statistical production data.
