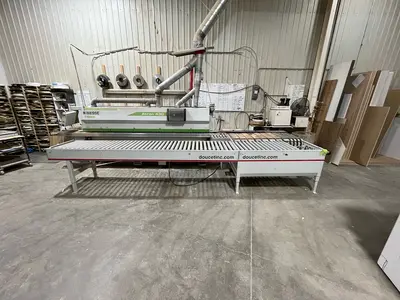

USED 2013 BIESSE AKRON 430

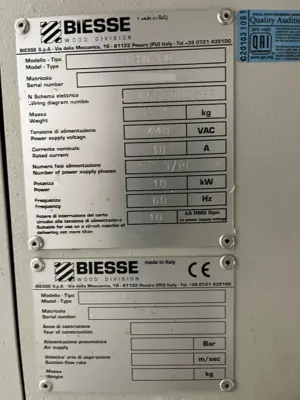

600 volt integrated transformer

Description :

One-sided edgebander with glue pot

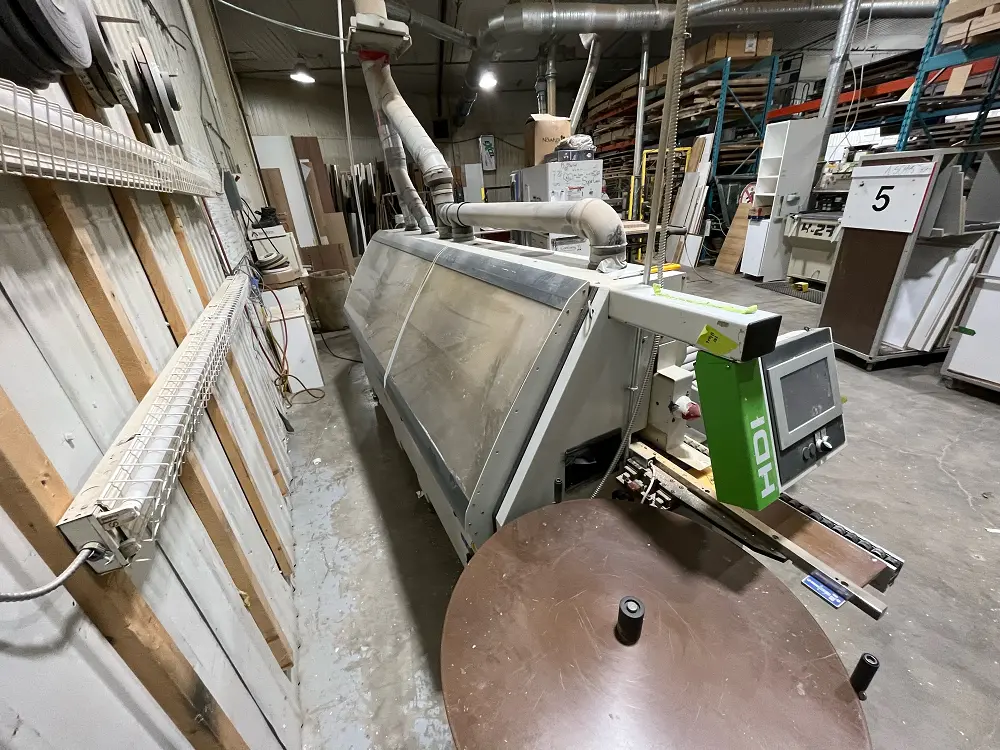

CN control and command system with TS10 digital controller, 10`` touch screen LCD graphic display, WINDOWS CE operating system, USB port

Chain drive and upper presser

Group of pressure rollers

Workstation :

Premilling

Gluing unit with pellet pot

Adjustable pneumatic pressure unit

End cutting unit 2 tilting saws 0-15˚ for bevel cutting motor 0.50Kw

Fine trimming top and bottom trimming unit, 0.65Kw motor

Radius scraper unit for 3mm pvc finishing

Polishing brush unit, 0.37Kw motor

Specifications:

Minimum & maximum thickness of the part: 10 to 60mm

Minimum room width: 85mm

Minimum piece length: 140mm

Tape thickness in roll: 0.4 to 3mm

Thickness of the pre-cut wooden strip: up to 8mm x 45mm high

Variable training speed: up to 12m/min

Motorized 400Volts 50Hz 3 Phases

Edgebander length 11`

Weight: 1350 kg

Automatic start of the groups and motors foreseen in the program.

2nd pass direct selection key.

Management of 8 digital axes

Lists of programs with manual and/or automatic launch.

Diagnosis of errors with codes and comments.

Statistical production data.

This device is mounted on an adjustable suspended control panel

NOT INCLUDED RETURN CONVEYOR
