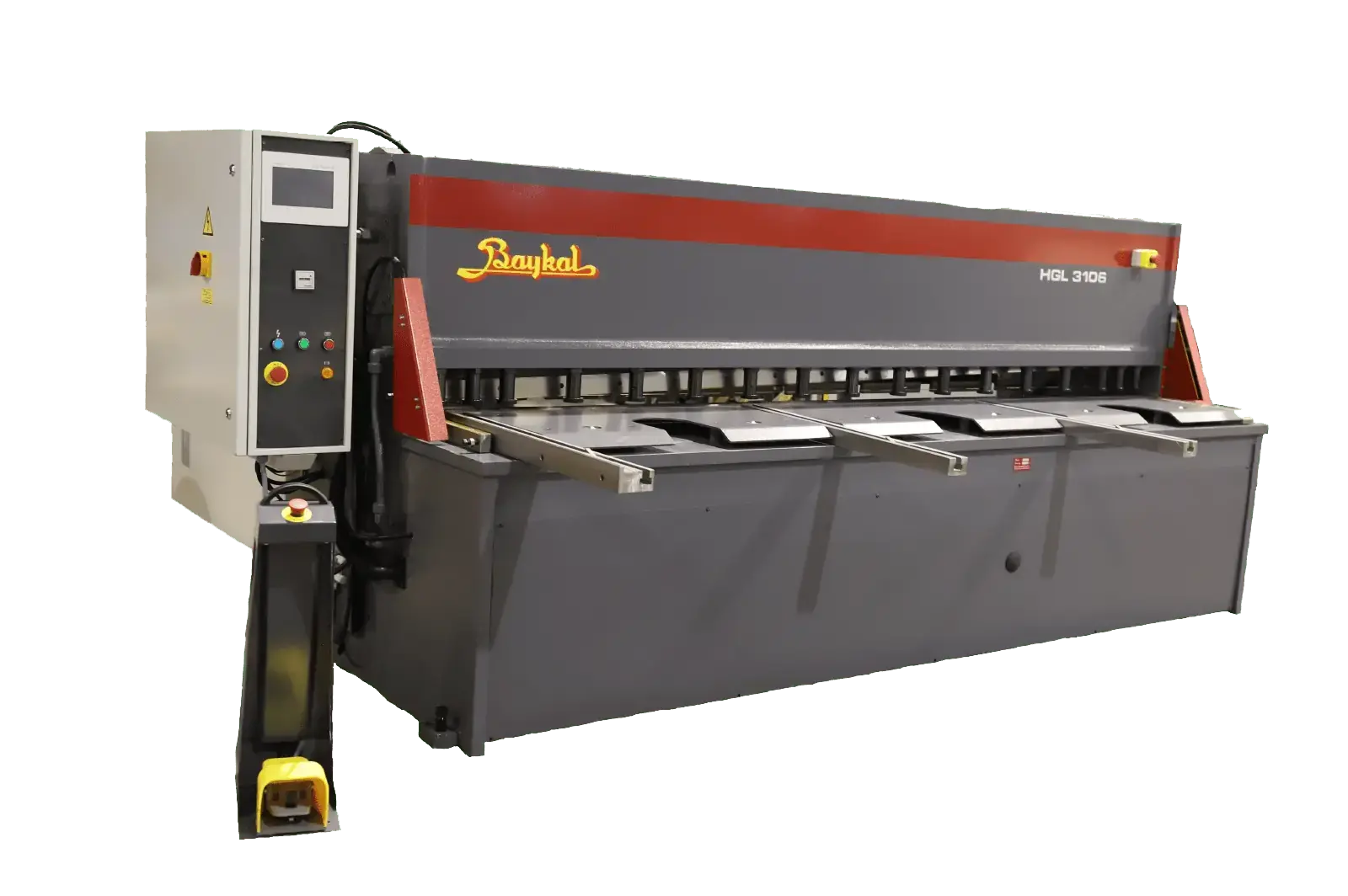

NEW FAB-LINE HGL 3106

HGL Hydraulic Swing Beam Shear

The HGL hydraulic swing beam design shear is a very economical shear with all of the features typically required. The pull down design provides the ability to have a low profile hydraulic shear that is easy to operate by any operator. Shearing capacity is 1/4-inch and shearing length is 6, 8, 10 and 13 foot.

Product Highlight

MAIN FEATURES:
All welded design providing maximum rigidity and cutting accuracy
CYBTOUCH 6 touch screen controller for easy programming of the back gauge position and keeping stroke counts. You can use it as a “GO TO” function or program a full part with separate cuts
30 inch power back gauge which is ballscrew driven with swing up function
Full hydraulic holddown system
Top beam and work table of boxtype construction
Cylinders are mounted below the bed for a pull down of the upper beam providing short height to see easily behind the shear machine for safety
Rear safety guarding to prevent access to the back of the shear during operation Shadow line cutting
Digital stroke counter
Large quantity of holddowns for maximum holding strength
Two flat support arms 40 inch in length (Three on 13 foot machines)
Work table with filler plates, hand slots, and ball transfers
Back gauge retract function
Squaring arm of 40 inches with scale, t-slot, and flip stop
Compact low maintenance hydraulics located underneath the work table
Foot pedal operation with emergency stop
Adjustable stroke length for higher speeds when not cutting full length
Fixed finger light guard

OPTIONS:
Manual Lubrication
Squaring arms 10 foot or longer
Pneumatic rear sheet support system
Angle gauge for trapezoid cuts
Powered blade gap adjustment
