NEW FAB-LINE MGH 3110

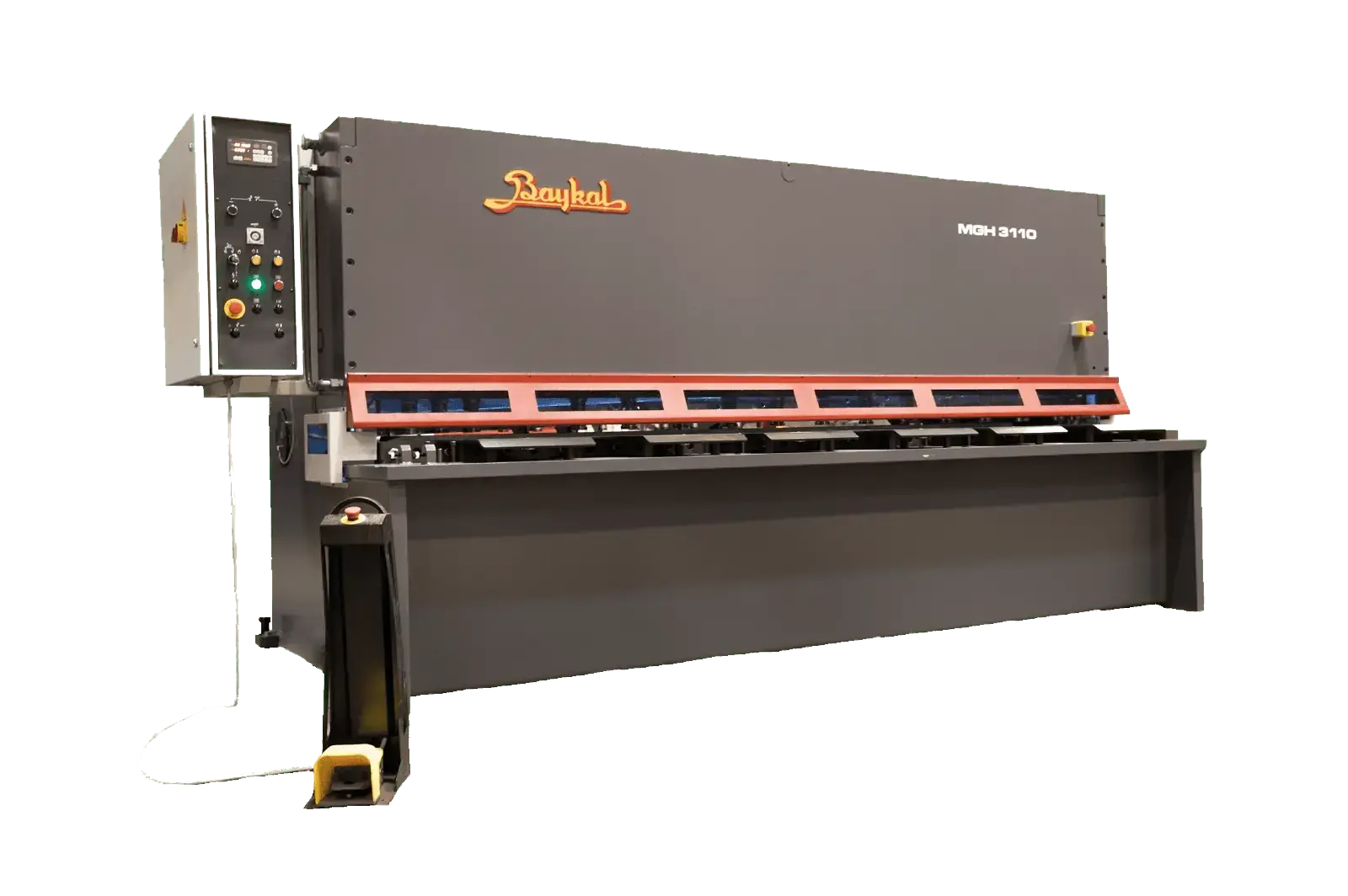

MGH Hydraulic Swing Beam Shear

The Baykal model MGH shear is available capacities ranging from 1/4” to ¾” and lengths of 10’ and 13’. The MGH goes through an extensive manufacturing process. The frame members are made of Certified ST44-2 steel which are all cut, roll straightened along, and stress relieved prior to any welding so that all the components are of the highest quality. This assures that machined tolerances remain stable throughout the life of the machine. All the MGH model machines are machined in one handling on large bridge style CNC mills to assure exact tolerances.

Product Highlight

MAIN FEATURES:
Rigidly welded steel frame construction
Swinging top beam working on high precision and self aligning roller bearings
Rapid blade gap adjustment mechanism
Swing up back gauge for shearing longer pieces than back gauge range
Back gauge retract function
Cyb Touch control mounted on machine and equipped with an emergency stop
40-inch ball screw driven back gauge
Adjustable stroke length to increase short stroking
Compact low maintenance hydraulics
Foot pedal control with emergency stop
Hydraulic overload protection
Worktable with filler plates, ball transfers, and hand slots
Shadow line for precision cutting
9.8” throat for slitting
3 Emergency stops for best in safety
Rear light guard for safety
Two flat support arms 40 inch in length
40-inch squaring arm with scale, t-slot, and flip stop
Digital stroke counter

OPTIONS:
Extended length squaring arm
Power blade gap adjustment
Pneumatic rear sheet support
Finger light guard
Angle gauge
