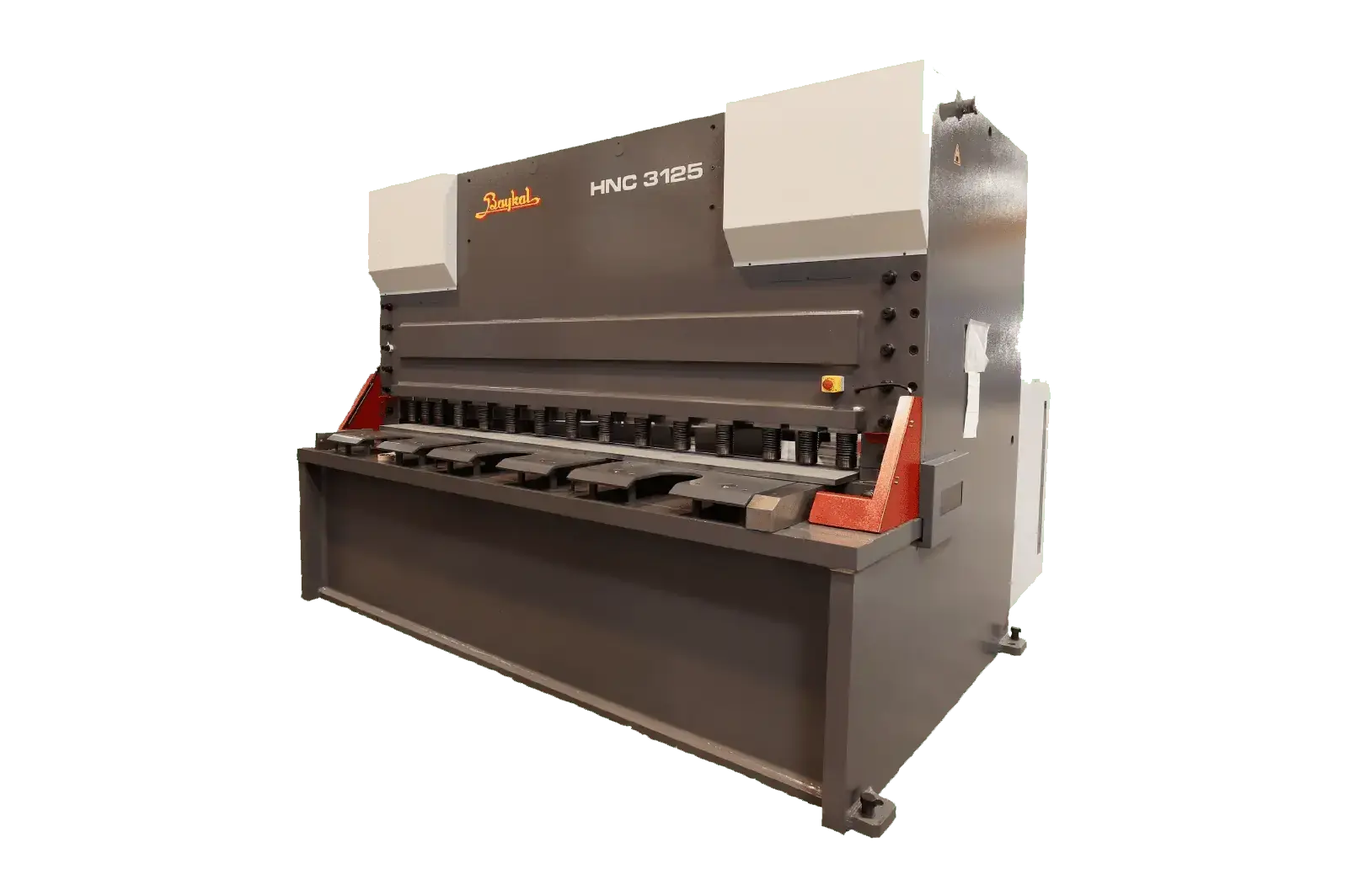

NEW FAB-LINE HNC 3125
Overview
Description
HNC Hydraulic Guillotine Shear
The HNC hydraulic shear is for those who require a full CNC controlled heavy duty shear, with feature rich options which provides shearing performance that no other CNC controlled shear can accomplish.
Shearing capacity is 1/4-inch to 1-inch and shearing Length of 10, 13 and 20 foot, with longer sizes available upon request.
Product Highlight
MAIN FEATURES:
Rigidly welded steel frame construction
Fully programmable Rake and Blade gap
Cylinders that are ground and hard chrome plated
Siemens KTP 700 control for adjustment of all machine functions on a pendant arm with emergency stop
40-inch ball screw driven back gauge
Adjustable stroke length to increase stroking speed
Compact low maintenance hydraulics
Foot pedal control with emergency stop
Hour Meter
Hydraulic Overload protection
Worktable with filler plates, ball transfers, and hand slots
Centralized manual lubrication system
Shadow line for precision cutting
Side throat guards
13.7” Throat for slitting
Two flat support arms 40 inch in length
40-inch squaring arm with scale, t-slot, and flip stop
Digital stroke counter
OPTIONS:
Pneumatic sheet support system
Extended length squaring arms
Anti twist device
Hydraulic swing up back gauge
Back gauge extended to 48”
Angle gauge
