NEW FAB-LINE APHS C 31200

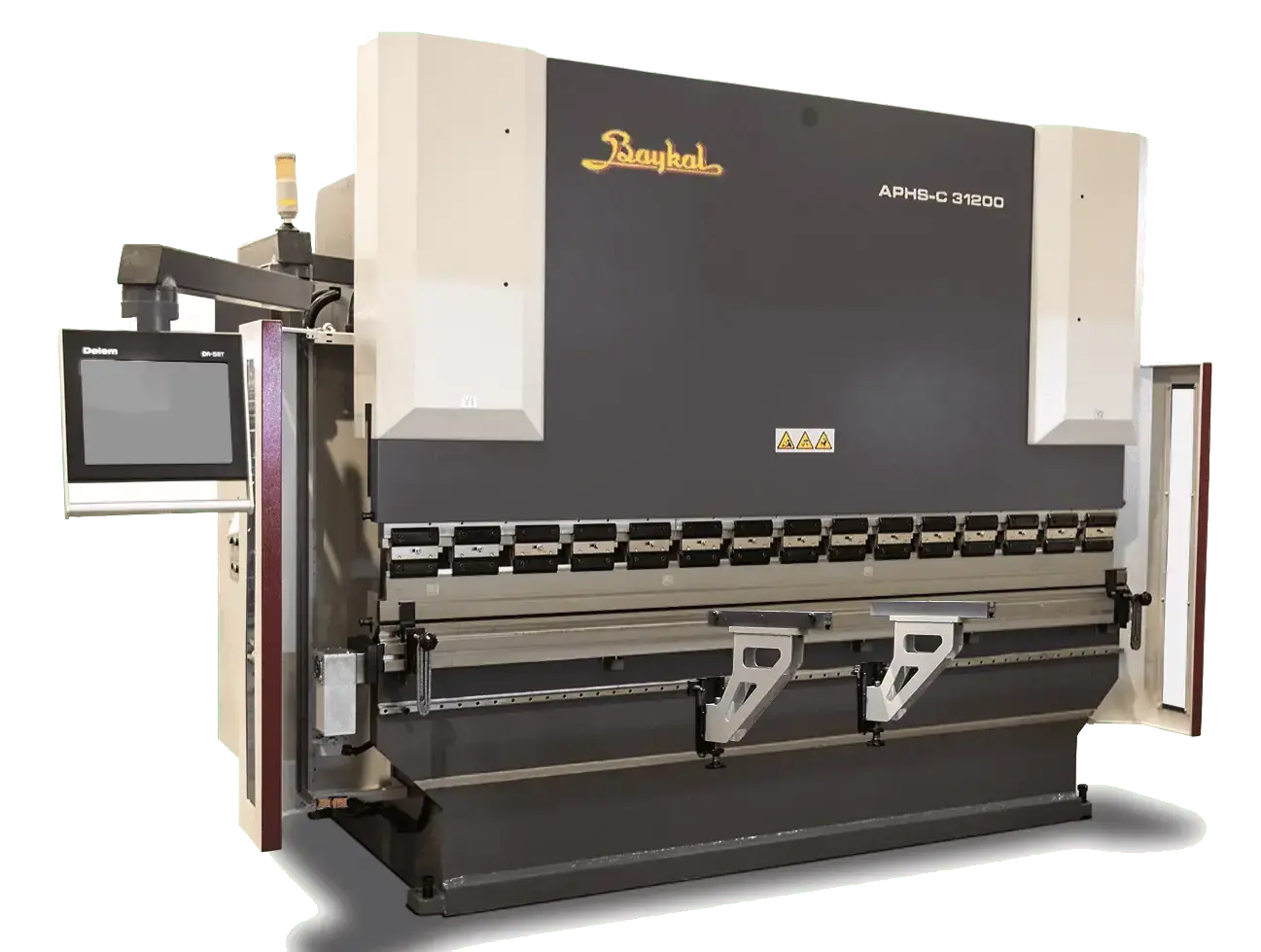

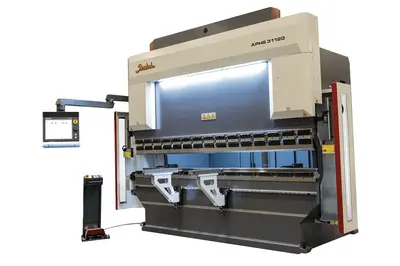

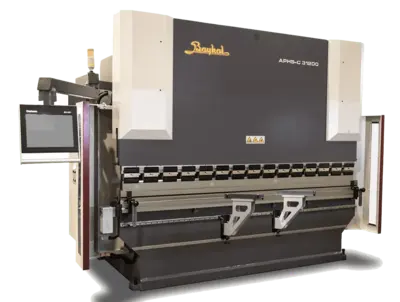

APHS C Hydraulic Press Brake

The APHS C Servo Hydraulic Press Brake is a competitively priced Servo Hydraulic Press Brake. With up to a four-axis capability, plus the ability to have CNC crowning as an option, it is our most popular press brake. The APHS C Press Brake standard models can handle 44 tons to 330 tons and lengths from 4 foot to 13 foot.
Those looking for a competitively priced Servo Hydraulic Press Brake will find it right here at Fab-Line Machinery. The APHS C has up to a four-axis capability plus the ability to have CNC crowning as an option. The APHS C Press Brake standard models can handle 44 Tons to 330 Tons and lengths from 4 foot to 13 foot.This Model is loaded with Standard features like a 16” to 19” throat depth, support arms on linear guides, to only mention a few. Almost all manufacturers only offer these as options.

Product Highlight

MAIN FEATURES:
X Backgauging System
Ram repeatability of +/- .0004″
Downstroke synchronized cylinders which are fully supported in low friction slideways and roller gibs
Rigid welded monoblock steel frame for minimum deflection under load
Full electronic synchronization with proportional valve technology
One piece forged cylinders precision machined and honed for accuracy
Maximum bend accuracy and repeatability assured through constant monitoring and correction of beam parallelism by the CNC system
Precision CNC controlled X axis back gauge precision ball screw driven with AC servo motor providing high speed and accuracy
Two slotted support arms on linear guides for easy positioning both along the bed and vertically via acme screw and handle along with being able to lock (on 13 foot machines you have 4)
Stroke depth measured by high precision GVI Misure linear scales which are bed referenced
Cartridge valves(HOWE mounted in a single steel manifold to reduce heat and wear
Standard Baykal Mechanical Crowning System
Compact Electrical cabinet with ventilation
Dual Footswitch with Emergency stop
ANSI B.11 compliable
Large stroke and open heights to provide maximum bending flexibility

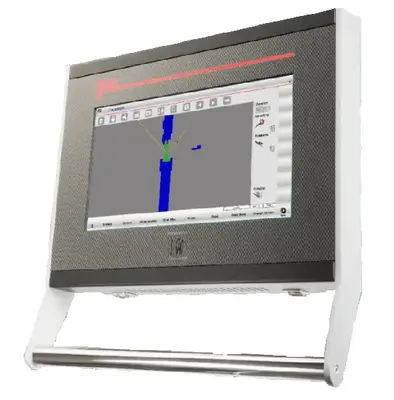

ESA 640 touchscreen 4 axis color graphic 2D programable control
Off-Line Programming software is included with ESA controllers
Electronically Interlocked swing away throat guards with space for mounting most brands of light curtains
Electrically interlocked rear sliding door prevents access to the back of the machine during operation

CNC SYSTEM:
2D ESA 640 4 Axis controller for programming the Y1, Y2, X, and optional R axis
USB Memory port for memory stick
Silicon hard disk for more than 7,000 part programs
2D Graphic editor for program and tool data entry
Calculation for optional CNC crowning system
Safety PLC communications (PILZ)
Complete off-line programming software with ESA controllers for a standard PC

OPTIONS:
CNC Crowning
AKAS Laser Safety System manual or motorized adjustment
Hydraulic Clamping
V bend for scribe line work
Starter Tool Package consisting of an upper segmented ground punch and a lower multi-vee die
All Compact machines come with a variety of options for crowning, XR back gauge, hydraulic tool clamping, and safety guarding
