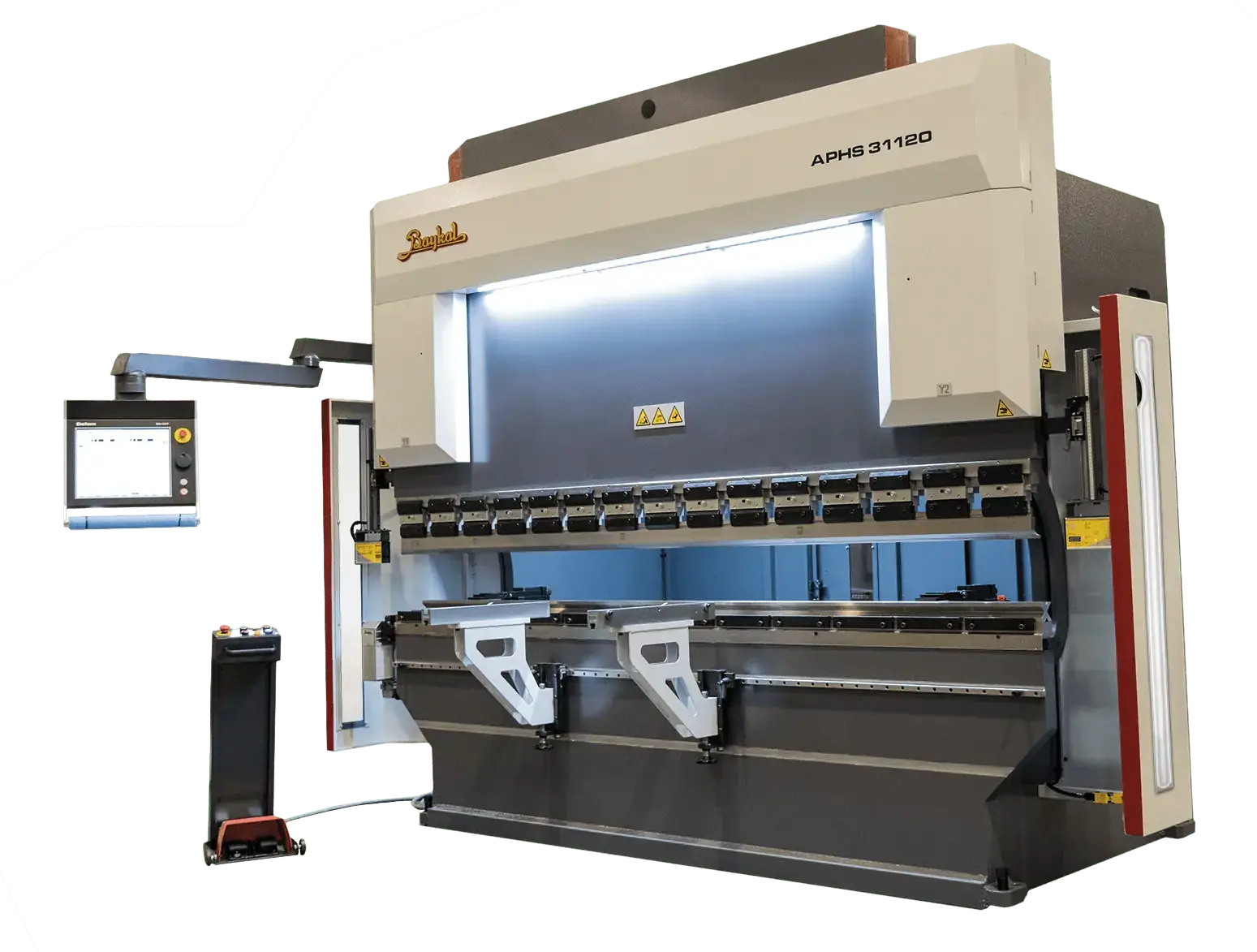

NEW FAB-LINE APHS 31120

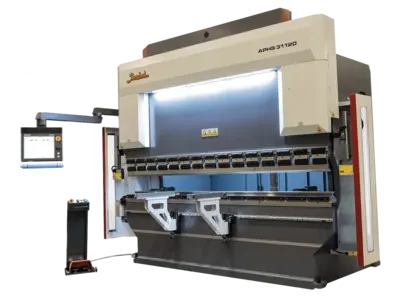

APHS Hydraulic Press Brake

The APHS Hydraulic Press Brake is a servo hydraulic machine, offering up to a 6 axis back gauge, 2D or 3D touchscreen graphical control, CNC crowning, sheet followers, automation, safety, and more. Although the standard machine range is 44 tons to 660, and bed lengths of 4’ to 20’, Baykal and Fab Line don’t shy away from special applications that might require extra open height, longer stroke, deeper throat, tandem, triplet or even a quad arrangement. Special designs are also available with capacity up to 6600 tons and bending lengths up to 60 feet. Bring us your standard or custom need, and allow Fab Line to offer the best solution.

Product Highlight

CAPACITY RANGE:
Bending Tonnage: custom Press Brake Models 44 to 660 ton. Larger tonnages up to 6000 tons available upon request
Bending Length: 4 feet to 20 Feet as standard sizes with larger bending sizes available upon request

Standard Features:

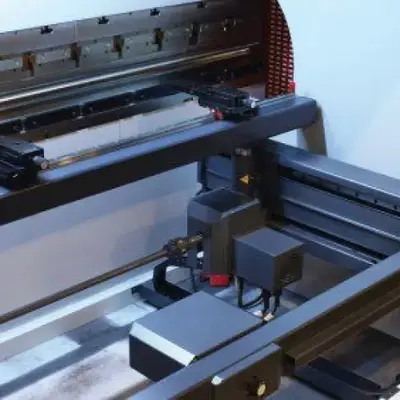

XR Backgauging System
Delem 66T or ESA 875 multi-axis 2D graphical Touchscreen controller is standard (3D is optional)
Full programmability of ram speeds, crowning, back gauge position, and any optional axis selected.
Full ability to program up to 8 axis (Y1,Y2, X1, X2, R1, R2, Z1, Z2)
USB interface for easy connection of external devices
Real time Windows system for multi-tasking and file management
Built in Error system and help texts to warn you of faulty programming

OPTIONS:

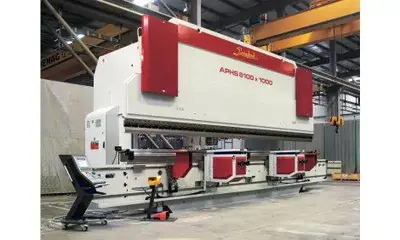

Tandem, Triplet, or Quad configuration
Longer Stroke
Extended Open Height
Deeper Throat Depth
Hydraulic Clamping
Up to 9 axis with CNC crowning
4,5 or 6 Axis Backgauge
Programmable sheet following arms
AKAS Laser Safety System manual or motorized adjustment

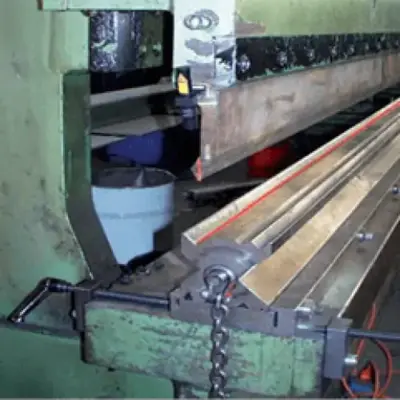

V bend for scribe line work
