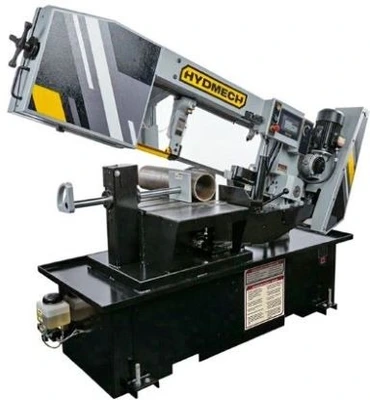

NEW HYDMECH S-20NG

HYDMECH (NEW) MODEL S-20NG MITER BANDSAW

CAPACITY AT 90 DEGREES
- 13" X 18" RECTANGLE, 13" ROUND
CAPACITY AT 45 DEGREES
- 13" X 10.9" RECTANGLE, 12" ROUND
CAPACITY AT 30 DEGREES
- 13" X 7.3" RECTANGLE, 8" ROUND

1" X 14' 10" BLADE
3 HP BLADE DRIVE
45 - 375 SFM VFD BLADE SPEED
17-3/4" BLADE WHEEL DIAMETER
MANUAL FULL STROKE BRAKE CAM LOCK VISES
MANUAL HEAD LIFT
VARIABLE RATE GRAVITY DRIVEN FEED SYSTEM
MANUAL POSITIONED GUIDE ARM
480 VOLT, 3 PHASE
33" TABLE HEIGHT

STANDARD MACHINE FEATURES
- EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
SWINGS 90 DEGREE - 30 DEGREE
- 3 HP TRUE DIRECT BLADE DRIVE - NO BELTS OR PULLEYS
- VFD VARIABLE BLADE SPEED - 45-375 SFM
- MANUAL FULL-STOCK VISE WITH BRAKE CAM LOCK
- GRAVITY-FED VARIABLE RATE DOWN-FEED
- MANUAL BLADE TENSION
- CARBIDE BLADE GUIDE INSERTS
- MANUAL POSITIONED GUIDE ARM
- CAST IRON BAND WHEELS
- MIST LUBRICATION SYSTEM (SOLENOID ACTIVATION
64 OZ RESERVIOR WITH LOW LEVEL DETECTION - SHOP AIR REQUIRED 60-100 PSI)
- 7" HMI TOUCHSCREEN WITH DIGITAL ANGLE DISPLAY
- LASER LIGHT
- WORK LIGHT
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- SAFETY DOOR INTERLOCKS
- BLADE BREAKAGE SWITCH
- BUILT IN MATERIAL IN-FEED ROLLERS AND OUT-FEED TABLE

OPTIONS AVAILABLE - PRICE ON REQUEST
- MATERIAL WORK STOP
- POWER TRANSFORMERS
208 VOLT, 240 VOLT, 575 VOLT
- IDLER CONVEYORS
Power: 480 (3-Phase)
