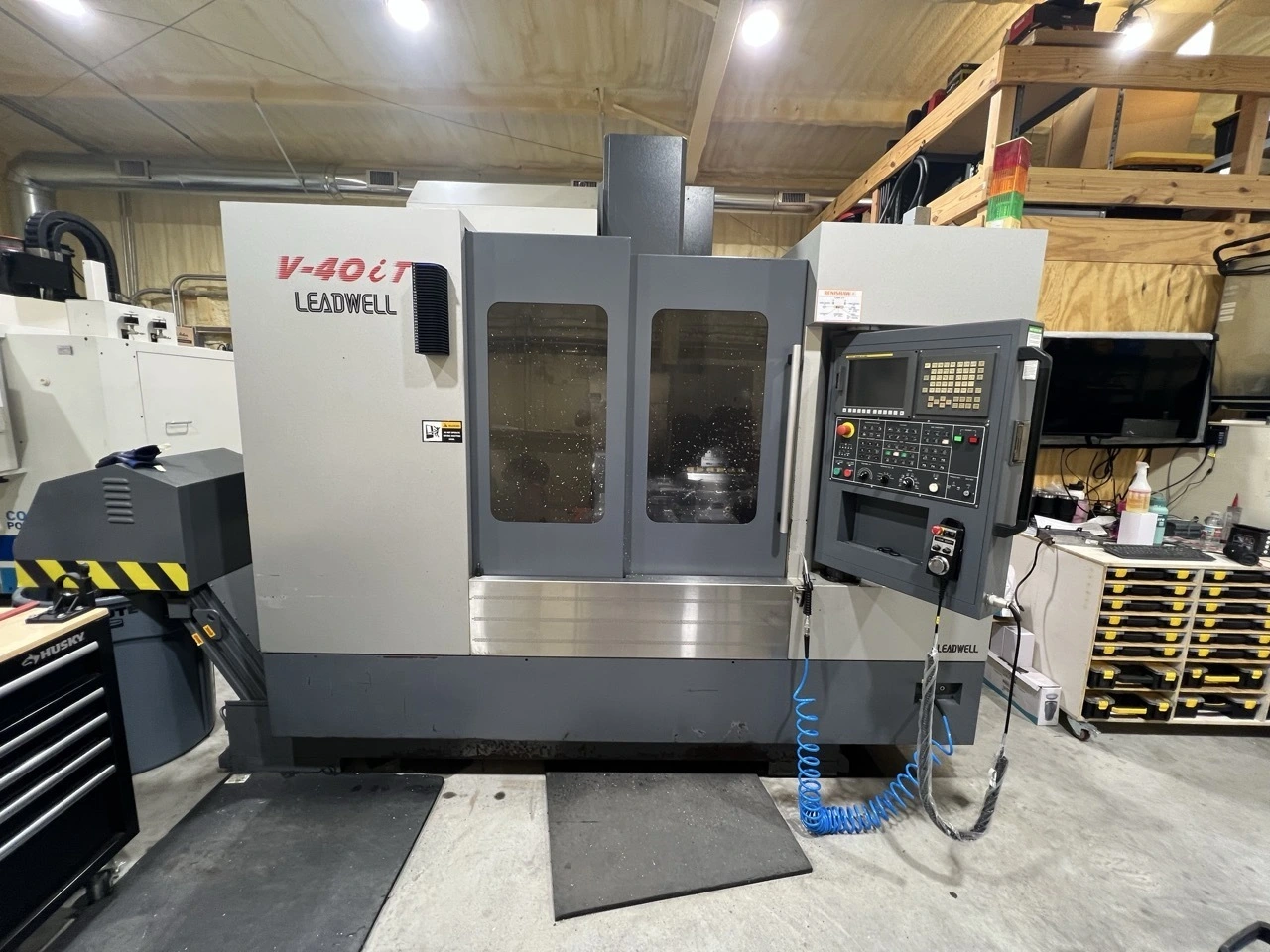

USED 2011 LEADWELL V-40IT
Overview
Used Vertical Machining Center, 5-axis, 12,000 RPM, 24 ATC, trunnion table. Features high pressure coolant, chip conveyor, and cooler. X/Y/Z travel at 40"/25"/21".
Specs
Spindle Speed: 12000 RPM
Number of tables / pallets: 1
Table size: 22″ X 13.3″
Weight on table: 440 / 220 LBS.
Integrated nc rotary table size: 13.8″ ROUND
Spindle nose to table: 1.9″ – 21″
Main spindle speeds: 12,000 RPM
Main spindle taper: 40 CT
Main spindle horse power: 24.8 HP
X – axis travel: 40″
Y – axis travel: 25″
Z – axis travel: 21″
A – axis travel: + – 90 DEGREES
B – axis travel: .001 DEGREE
Rapid traverse x, y, z: 1417, 1417, 1417 IPM
Cutting feed rate: 394 IPM
Automatic tool changer: 24 ATC
Tool diameter: 3.7″ / 5.2″
Tool length: 9.8″
Machine weight: 15,432 Lbs.
Equipped With
Trunnion Table
High Pressure Coolant
Chip Conveyor
Cooler
