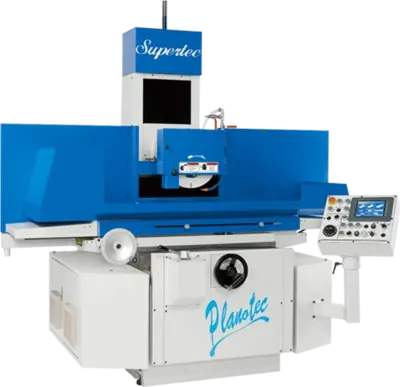

NEW SUPERTEC PLANOTEC 1224NC

- All essential castings are rib reinforced to provide a rigid machine structure for long lasting accuracy and stability.

- The precision cartridge spindle equipped with 4 pieces of preloaded class 7 (p4) super precision angular contact ball bearings to ensure high accuracy and superior grinding finish.

- Spindle, couplings, and spindle motor (5HP) are precisely balanced for low vibration and powerful output to achieve precision grinding accuracy.

- Rigid table with box-type structure travels on a cushion of oil with no metal-to-metal contact to provide excellent way longevity.

- Column guideways are Turcite-B coated and precisely hand scraped to provide a smooth movement for better accuracy and longer way life.

- The rigid wheelhead travels on wide contact hardened and ground guideways and is precisely positioned with a stepping motor to ensure better downfeed repeatability.

- Crossfeed mechanism incorporate with a precision ball screw, AC inverter provides smooth accurate crossfeed and allows criss-cross grinding for better grinding surface finish.

- Hydraulic, coolant and lubrication systems are separated from machine to eliminate vibration and dissipate heat. Heat exchange is used on hydraulic system to maintain normal temperature of hydraulic oil.

- All moving surfaces and rotating parts are continuously lubricated by an auto-lube system to ensure long service life and maintain maximum accuracy. An alarm light will illuminate if oil pressure drops below present pressure.

- PLC control uses a menu-driven color LCD touch screen is easy to learn and easy to set. Simply fill in the blanks to set total grinding amount, rough increment, fine increment, spark-out passes, feeding direction, parking position, wheelhead retract distance, and press cycle start to complete automatic grinding cycle. (NC model only).

- Positioning accuracy and repeatability is assured with an AC servo motor and high precision pre-tensioned ballscrew. (CNC model only)
