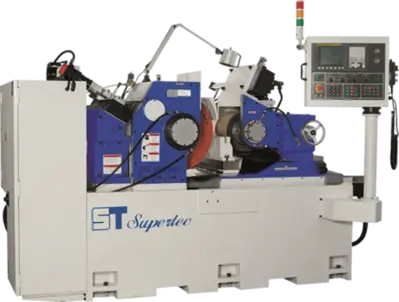

NEW SUPERTEC STC-24S NC

Hydrualic Dressing Unit
A hydraulic dresser is equipped on both grinding & regulating wheels. Various types of from dressing can be achieved with optional template.

Wheel Spindle
The hydrostatic Babbitt type spindle bearing with a 3 point support design and pressurized, filtered , recirculating oil system, eliminates metal-to-metal contact, thus providing a heavy duty grinding capability as well as high vibration dampening performance. A pressure switch interlock prevents spindle start-up until oil pressure is established. The pressure switch interlock also stop the spindle if the oil pressure fails, thus providing a longer spindle life.

Machine Structure
The machine base is made of Meehanite casting, which is normalized and stress relieved, providing maximum rigidity to assure machine stability and vibration free operation.

Hydraulic System
The hydraulic & lubrication system is air cooled to maintain constant oil temperature, and is also separated from the machine to eliminate vibration and dissipate heat.
