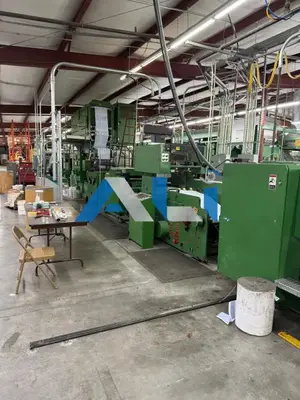

USED RDP RDP 200 6 Color Pressure Seal Press
Overview
1992 / 1997 / 2006 / 2018 RDP 200 6 Color Press with Interflex Double Coater
(6 color double numbering front & bock) 22” x 20.5” web width
Well equipped for:
Pressure sealer mailers
Security envelopes
1099 Forms
Post Cards
Purchased in 1992 with 2 units
1997 2 units rebuilt for UV and UV Dryers. Also Adding 4 more UV Units
2006 modified for pressure seal production. Two cohesive applicators and two RF dryers.
2018 two Interflex coaters we added.
General
• Speed - Mechanical Drive -50fpm to 1500fpm
• Gear Lubrication - Continuous oil bath
• Drive Train - "lilbular drive shaft with flexible steel disk couplings at gear boxes
• Press Drive - Electric DC, Drive
• Max web width - 20 1/2"
• Max print width - 20"
• Print cylinder circumference - 22" Web Break Detectors - Electric eye style mounted over the web
• Frames - 2" thick cast iron (28" inside frames)

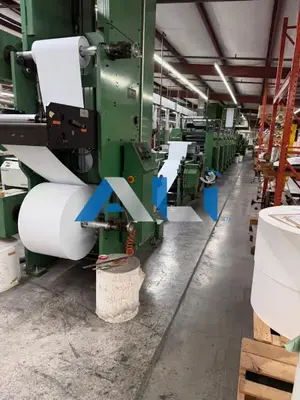

Unwind
• Max web Width — 20.5"
• Max roll Diameter - 50"
• MaxRoll Weight . 1500*
• Inside core diameter • 3", 5" • Programmable decurler

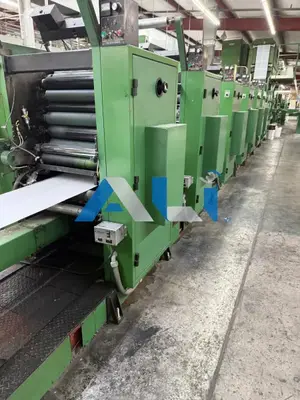

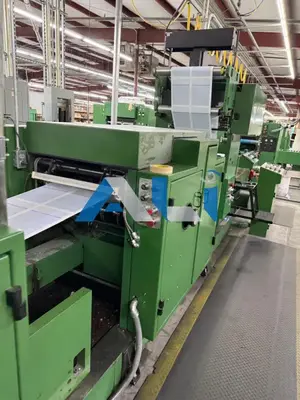

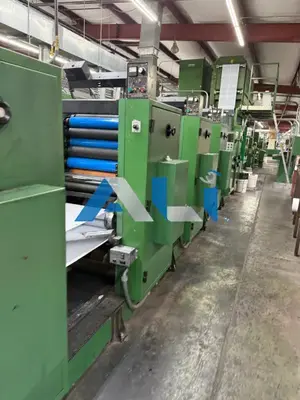

print units
Specs
NO. Units - 6
Reel-in Blankets
Motorized Circ. Register With remote control
Motorized plate side lay With remote control
Plate cylinder skewing and form roll adjustment
Auxiliary Unit drive motors • 360 deg circumferential gear boxes
Dahlgren dampening system
Chilled vibrators each unit (Tri Service Chiller)
Ink Agitators • Auto Ink roll wash-up
Back Printing
Hockey Sticks on units 1 & 2
Turn Bars between units 2 & 3 and umts 3 & 4

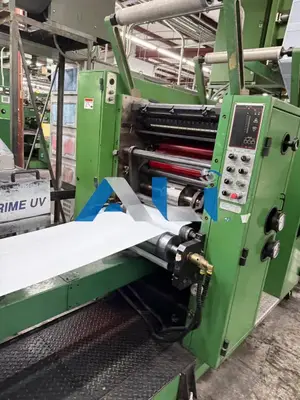

UV Dryers
• Prime UV 400-600 watt curing system
• Prime Smart system control
• Inter-station drying

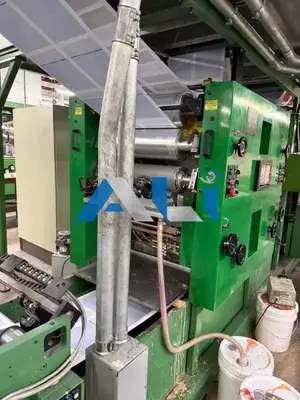

Pressure Seal Cohesive Application Equipment
• Interflex Double Coater (2018) Strayfield Pastron RF Dryer
• ESS magnetic die unit (perf flattening)
• Removable-blade perf cylinders for V, C and eccentric Z

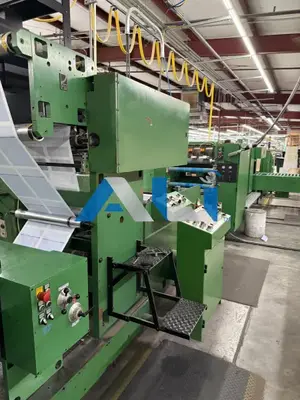

Other In-Line Features
• Interllex double ujater
• Double numbering unit (constructed for arabic numbering, barcoding or marginals)
• Double filehole unit (one fixed and one removable cartridge) Linehole punching (one) provision
for die insert
• Vertical perfs (2 shafts)
• TWO cross perf cylinders
Register Control
• QTI video register control
Rewinder
• Rewinder 50"

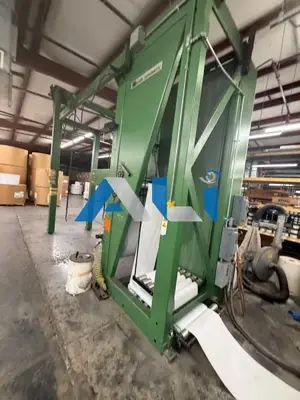

Folder
Fordyce VS 1320 single stream
Max web width - 20 112"
Rewind
• GEC Auto Turret Rewinder
• Max roll diameter 50"
• Shaft for 3", 5", 6" ID core

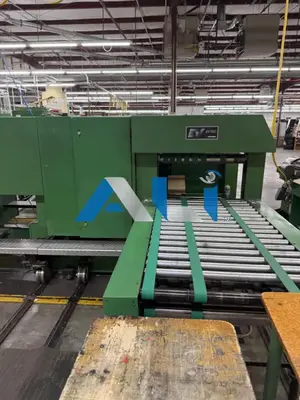

Sheeter
• Evtec Mode 1EC/EB 2028 Sheeter/Batcher Stacker
