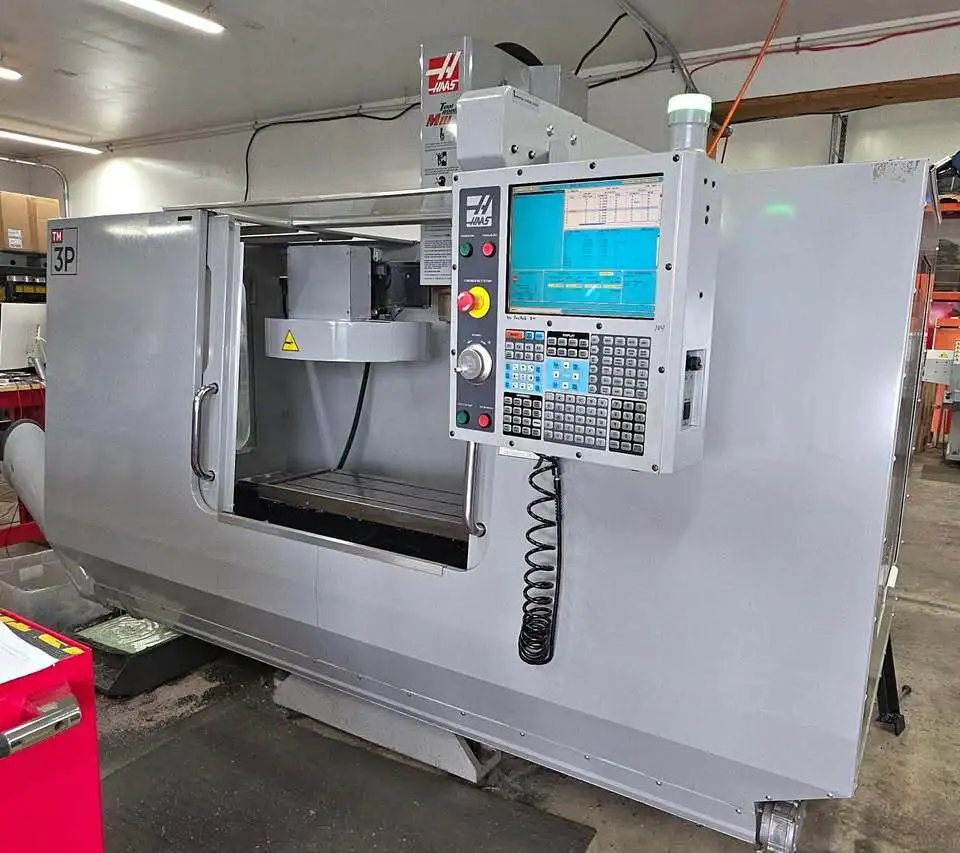

USED 2008 HAAS TM-3P
Overview
Very Low Hour, 4th Axis Ready, easy to use, and offer the precision control of the Haas CNC system. They use standard 40-taper tooling, and are very easy to learn and operate – even without knowing G-code. They are the perfect option for schools and companies transitioning to CNC, or for anyone looking for a large-travel machine on a budget.
Specs
Haas TM-3P ertical Machining Center (2008)
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 16"
Rapid Rate X Axis: 400 IPM
Rapid Rate Y Axis: 400 IPM
Rapid Rate Z Axis: 400 IPM
Max Table Load: 1,000 LBS
Spindle Motor: 7.5 HP
Spindle Speed: 6000 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Cutting 400 ipm
Max Torque 33 ft-lbf
Max Thrust X 2000 lbf
Max Thrust Y 2000 lbf
Max Thrust Z 2000 lbf
Max Tool Diameter (3.5"
Max Tool Weight 12 lbs
Tool-to-Tool (avg) 5.7 s
Chip-to-Chip (avg) 6.5 s
Table Size: 57.8" x 14.5"
Dimensions: 130" x 88" x 98"
Weight: 6,200 LBS
Equipped With
4th Axis Ready
