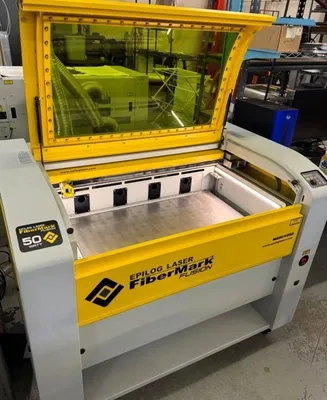

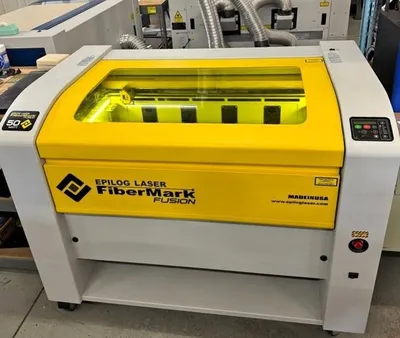

USED 2013 EPILOG FIBERMARK FUSION 13000/FM

EPILOG FIBERMARK FUSION 13000/FM, New in 2013

General Specifications:
32″ x 20″ (812 x 508 mm)
Material Thickness:
13.25″ (336 mm)
Laser Tube Wattages:
10, 20, 30 or 50 watts.
Intelligent Memory Buffer:
Store unlimited files up to 64MB. Rolling buffer allows files of any size to be engraved.
Operating Modes:
Optimized raster, vector or combined modes.
Motion Control System:
High-speed, continuous-loop, DC brushless servomotors using linear and rotary encoding technology for precise positioning.
X-Axis Bearings:
Ground and polished stainless steel bearing system.
Belts:
Doublewide Kevlar (x-axis) and Steel Core (y-axis) belts.
Resolution:
User controlled choice from 75 to 1200 dpi.
Speed and Power Control:
Computer or machine controlled speed and power in 1% increments to 100%.
Print Interface:
10 Base-T Ethernet or USB Connection.
Size (W x D x H):
52.5″ x 33.5″ x 40.75″ (1334 x 851 x 1035 mm)
Weight:
500 lbs (227 kg) Dual Source: 536 lbs (243 kg)
Red Dot Pointer:
Since the laser beam is invisible, the Red Dot Pointer on Epilog’s Laser Systems allow you to have a visual reference for locating where the laser will fire.
Electrical Requirements:
Auto-switching power supply accommodates 110 to 240 volts, 50 or 60 Hz, single phase.
Ventilation:
650 CFM (1104 m3/hr)external exhaust to the outside or internal filtration system required. There are two output ports, each 4″ in diamter.
Laser System Classification:
Class 2 Laser Product – 1 mW CW Maximum 600-700 nm.
