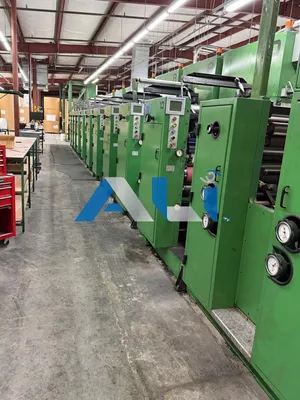

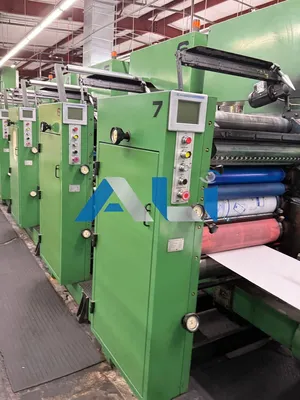

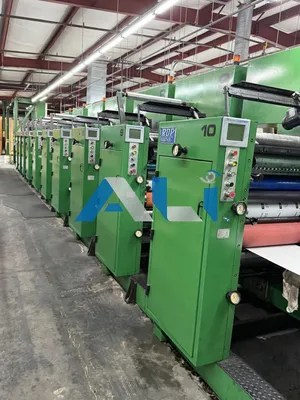

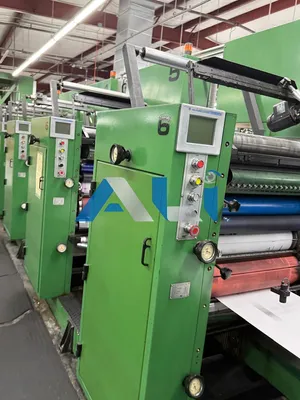

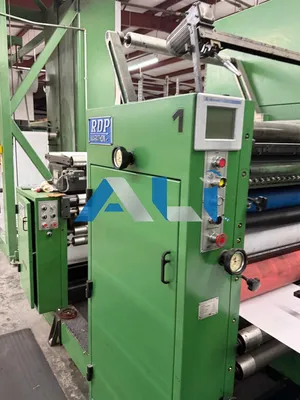

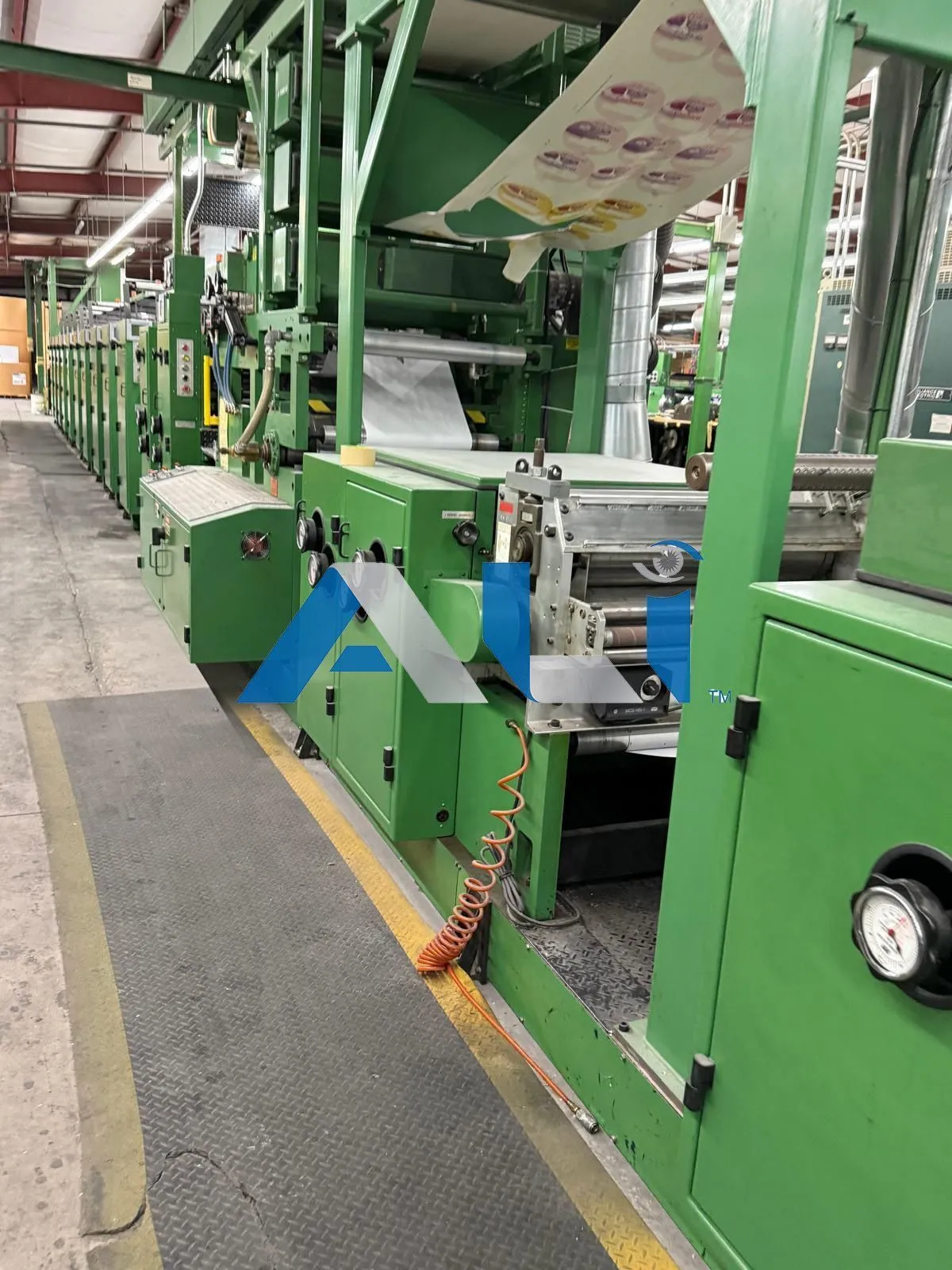

USED 1992 RDP RDP 260 10 Color Scratch Off Press 22” x 26 ½” web width

’92 / ’96 / ‘ 2012 / ‘2013 RDP 260 10 Color Scratch Off Press
22” x 26 ½” web width
Press was used for Presser Sealer Mailers, Lottery Scratch Offs, Number Coupons, Postcards and can be used for more.

Originally 1992 Purchased with 4 units
In 1996 4 original units rebuilt with UV. 6 more units were added for 10 units with UV. Also installed in 1996 was a applying re-moist, scratch off, and varnish, as well as UV and RF drying capabilities.
2012 Hot air drying was added for aqueous coating.
2013 two sided silicone applicator added.

General
Speed - Mechanical Drive -50fpm to 1500fpm
Gear Lubrication - Continuous oil bath Drive Train - Tubular drive shaft with flexible steel disk couplings at gear boxes.
Press Drive - Electric DC Drive 150 HP
Max web width - 26 1/2"
Max print width - 26"
Print cylinder circumference - 22" Web Break Detectors - Electric eye style mounted over the web ET web guide
Frames - 2" thick cast iron (34" inside frames)

Unwind
Martin Model EC Plus- 1526 Automatic Splicer
Max splicing speed - 1500fpm
Max web width - 26 1/2"
Max roll weight - 1800 lbs
Max roll diameter - 52"
Two pneumatic core shafts (3", 5" dia)
Web Cleaner
Doyle Web Cleaner

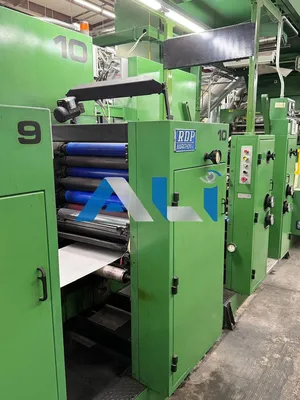

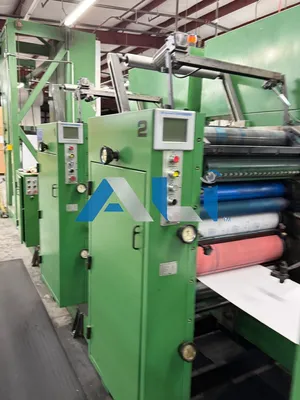

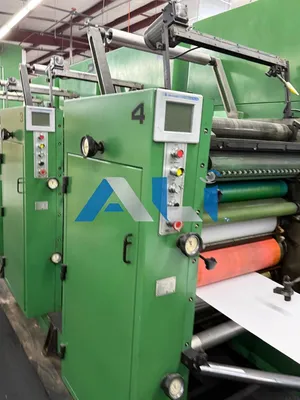

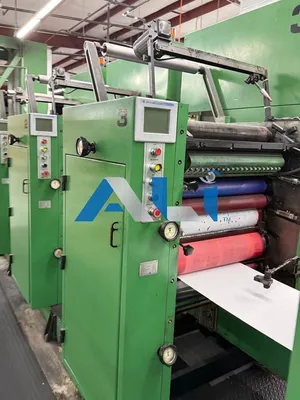

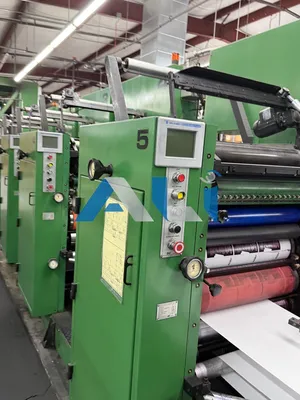

Print Units
No. Units - 10
Reel-in Blankets
Motorized Circ. Register with remote control
Motorized plate side lay with remote control
Plate cylinder skewing and form roll adjustment
Auxiliary Unit drive motors
360 deg circumferential gear boxes
Dahlgren dampening system
Master Flo SFIOO Central Refrigerated circulator for dampening (10 units)
Chilled vibrators each unit (Master Flo Chiller) Ink Agitators

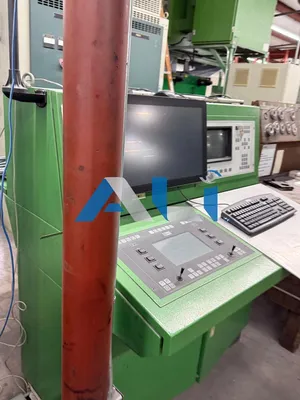

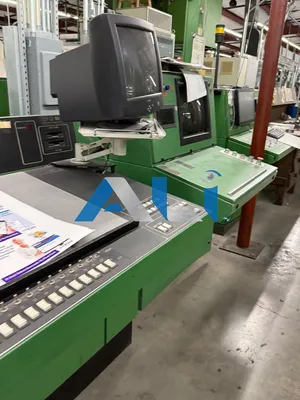

EPG motorized ink key controls with operator console Auto ink roll wash-up

Back Printing
Print units 1-4 are reversible
Hockey sticks on print units 1-6, 9
Turn bars between units 4-5, 5-6

UV Dryers
Prime UV curing system
Prime Smart system control
Three units for positioning after unit l, 4, 5 or 1

Other In-Line Features
Double numbering unit (constructed for arabic numbering, barcoding or marginals)
IDC combination remoist / scratchoff / varnish unit
Prime UV and Proctor Strayfield model SW 25/76 RF dryer for above unit Double filehole unit
DK Hart die cutter with rewind
Processing unit inc. linehole punching, vertical perfs (3 shafts) and two cross perf cylinders

ADDITIONS
In-Line Coating Equipment Additions
Megtec Silicone Applicator (Added June 2012)
ASI Hot Air Drying System for Aqueous Coating
(Added June 2012)
Modified Silicone Applicator to 2 Sided (Added February 2013)
Register Control
Electromat auto register and cut-off control
Electromat inspection system for two-sided viewing

Folder
Fordyce VS 1326 single stream
Max web width - 26 1/2"

Sheeter
Egan (John Brown) Model VB1026LC Sheeter

Batcher Stacker
Date 3/31/92 (Serial No. 100290
Retrofit for 44" pile (Added November 2012)

Rewinder
WTI Turret Rewinder (Mod. No. 50/26.5/1200)
