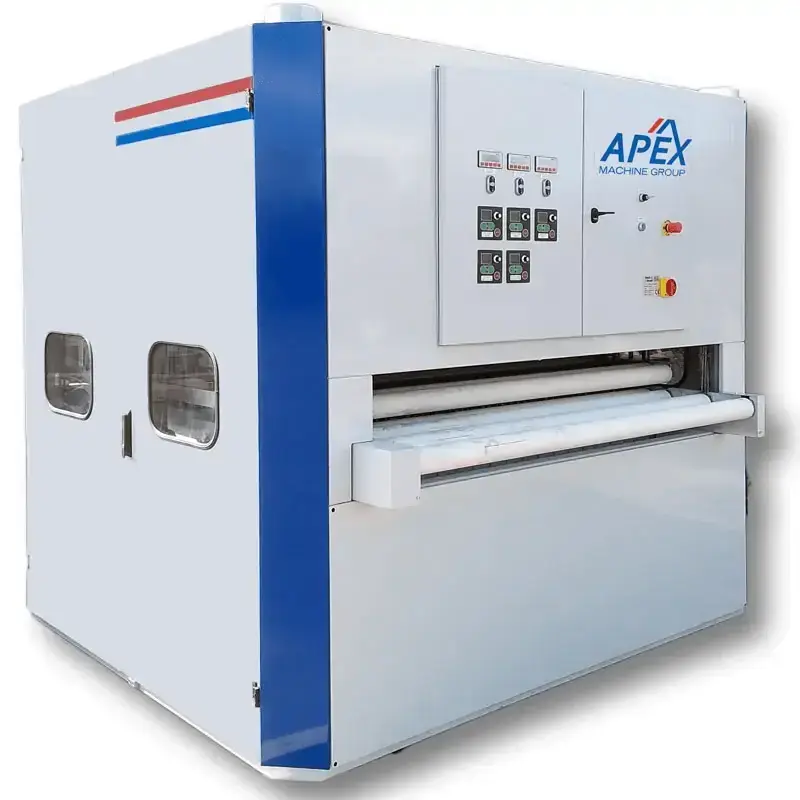

NEW APEX MACHINE GROUP TB-1600

Deburring, Edge Radius, Laser Oxide Removal, Surface Prep

The Apex TB-1600 Top/Bottom machine processes both the top and bottom surfaces of parts in a single pass with 100% uniformity. Every square inch of every part is processed exactly the same over 100% of the machine width. It is equipped with oscillating and rotating sanding discs designed for effective deburring, edge radius, laser oxide removal, weld-point clean-up and surface preparation for powder coating, painting and e-coating. The machine has two single row disc stations on top, with each top disc station consisting of twelve 150 mm (6″) discs. There are two single row disc stations on the bottom, with each bottom disc station consisting of twelve 150 mm (6″) discs for processing the bottom of parts.

MACHINE FEATURES

Machines built in widths from 40″ to 100″, depending on maximum width of parts to be processed
Separate variable speed adjustment for disc rpm and oscillation
Convenient pull-out of disc station on left and right for speedy changing of abrasive sanding strips
Rotation of discs is reversible
Features constant pass-line (900 mm)
Pressure rollers for holding parts down
LED lights mounted inside the machine for clear visibility
Dual infeed and outfeed support pinch rollers to ensure parts feed through machine properly
Heavy duty chain-driven feed rollers
