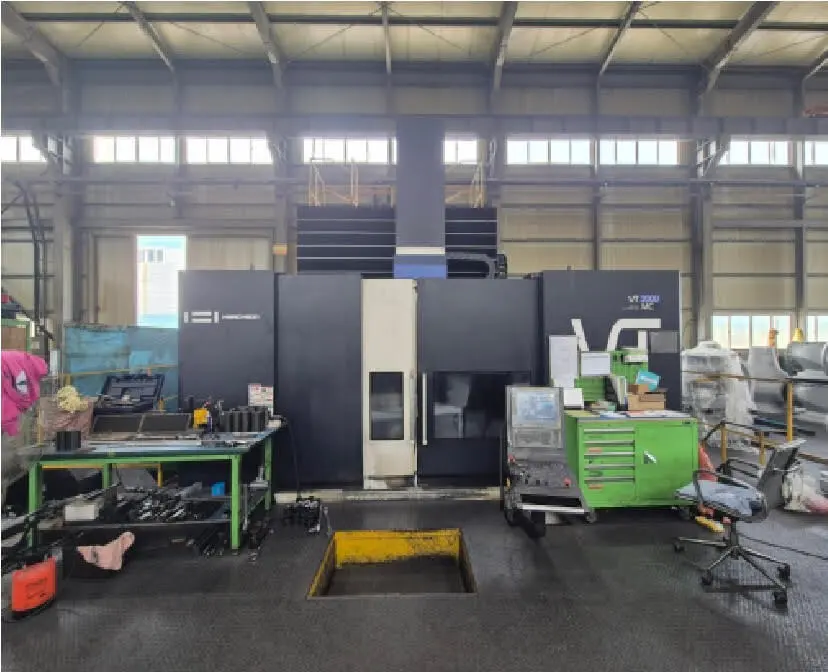

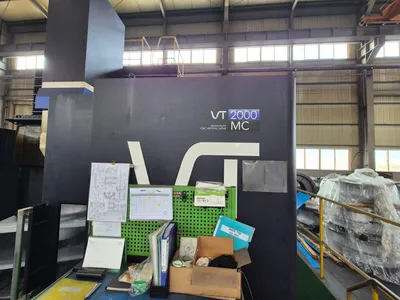

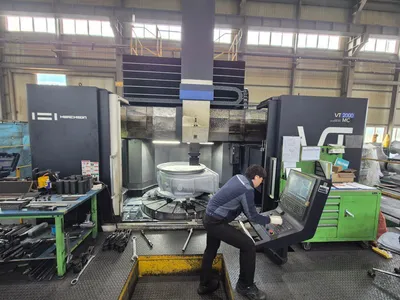

NEW 2024 HWACHEON VT2000M

Capacity & Travel
Maximum Swing: (104.33") (∅2,650 mm)
Maximum Cutting Diameter: varnothing98.43^{"}\) (∅2,500 mm)
Maximum Cutting Length: \(43.31^{"}\) (1,100 mm) standard, up to \(82.68^{"}\) (2,100 mm) on extended models
Maximum Table Loading: 33,000 lbs (15,000 kgf)
X-Axis Travel: \(-12.4^{"}\) to \(+56.5^{"}\) (-315 to +1,435 mm)
Z-Axis Travel (Ram): \(39.37^{"}\) (1,000 mm)

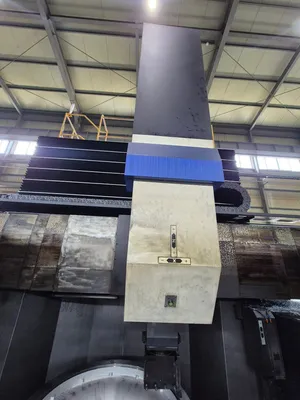

W-Axis Travel (Crossrail): \(43.31^{"}\) (1,100 mm)

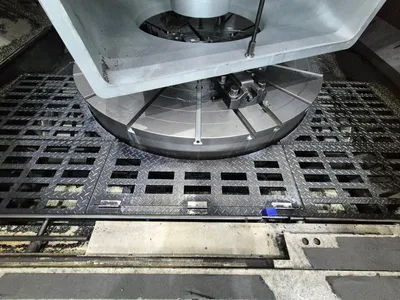

Table & Turning Specifications

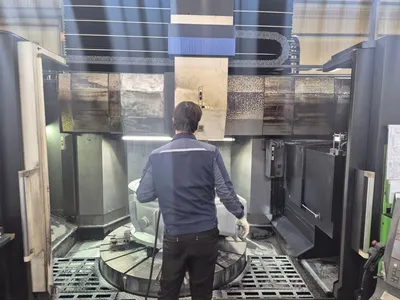

Table/Chuck Size: \(80.0^{"}\) (2,000 mm)
Table Speeds: 1 ~ 240 rpm (2-speed, gear-driven)
Maximum Turning Torque: 36,777 ft-lbs (49,863 N-m)
Table Motor: 100 HP / 80 HP (75 kW / 60 kW)

Milling Spindle & C-Axis (Live Tooling)
C-Axis Contouring: 0.001° minimum indexing angle
Milling Spindle Taper: BT-50 (or BBT-50)
Milling Spindle Speed: Up to 3,000 rpm
Milling Motor Power: 35 HP / 29.5 HP

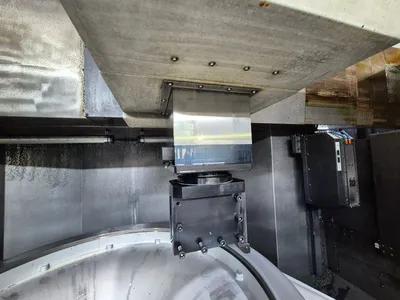

Ram Size: \(9.8^{"} \times 9.8^{"}\) (250 × 250 mm) heavy-duty square ram

Automatic Tool Changer (ATC)
Tool Magazine Capacity: 14 tools standard
Tool Shank: 7/24 Taper BT-50

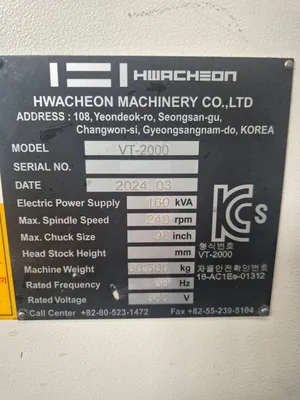

CNC System & Build

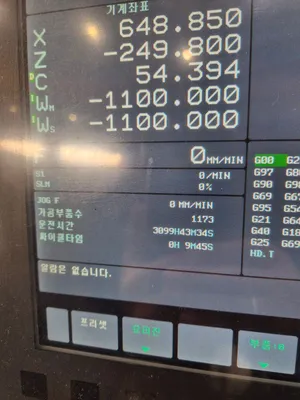

Control Unit: Fanuc 31iA (or equivalent advanced Fanuc series)
Machine Weight: ~ 133,000 lbs (60,500 kg)
Design: Meehanite cast monolithic frame with solid box way guideways
