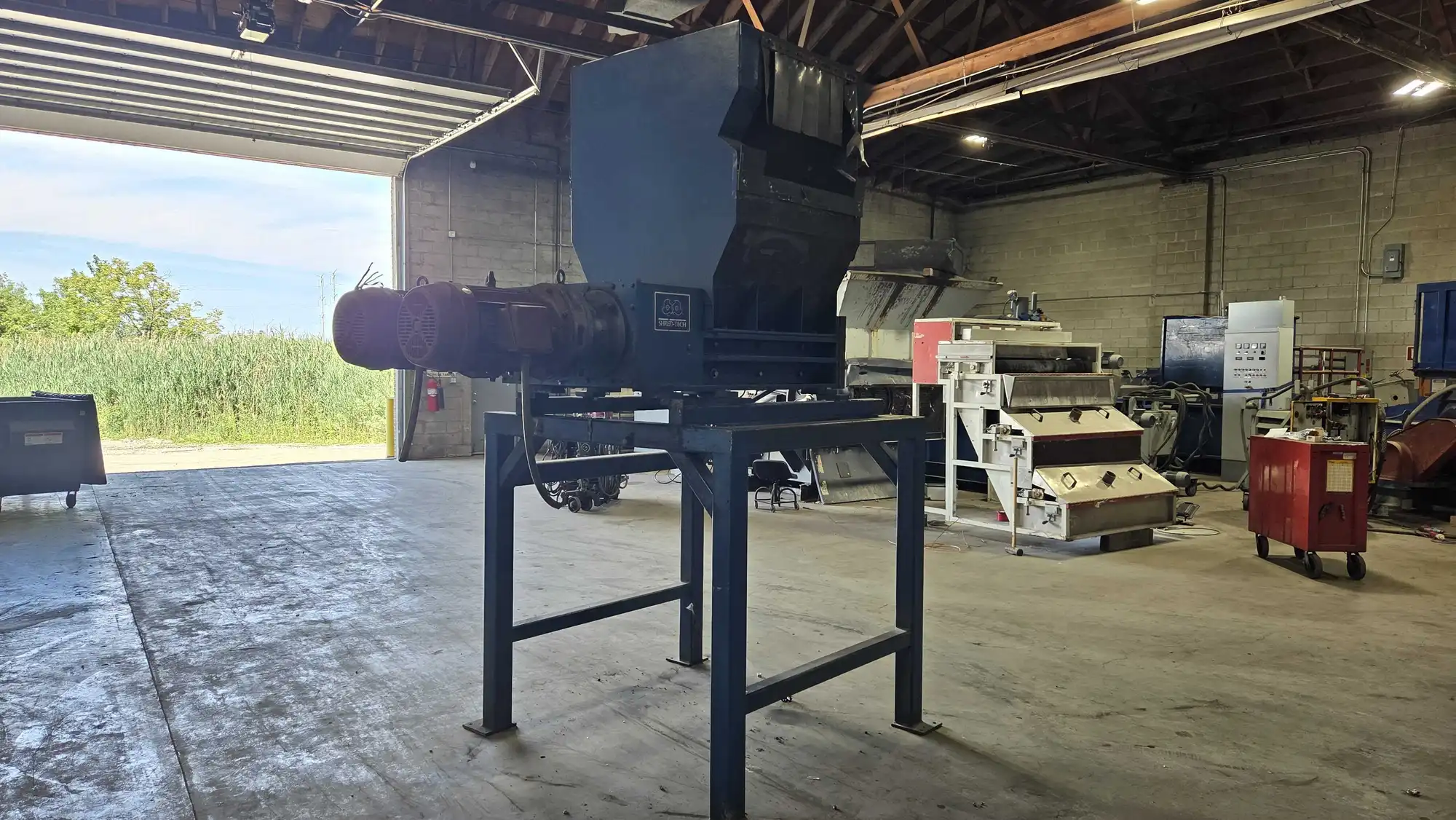

USED SHRED-TECH ST-50ES

Shredder type: Dual-Shaft Shear Shredder
Drive: Electric, 1 or 2 motors
Motors: 1 or 2 Electric Motors
Total motor power: 20–60 HP
Voltage: 208-600V
Frequency: 50/60 Hz
Cutting chamber: 21 in x 30 in
Overall length: 106"
Overall width: 46.5"
Overall height: 98"
Machine weight: Approx. 4,500 lbs
Floor space required: 35 sq. ft.
Stand opening: 21" W × 61" L
Knife diameter: 10 in
Shaft center distance: 7.5"
Throughput: 1–3 TPH (material dependent)
Typical output: Strip-cut material
Hopper opening: 30 in x 40 in
Discharge height: 40 in
Hopper height: 44 in

M/c length: 100 in
M/c width: 45 in
M/c height: 107 in
M/c weight: 4,900 lbs
Floor space: 30 sq ft
Horsepower: 20-50 HP
Knife thickness: 5/8 in, 7/8 in
Number of knives: 48, 36, 24
Hex size: 3 3/8 in
Distance between shafts: 7 1/2 in

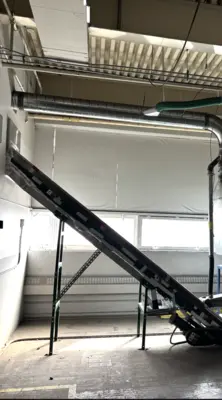

Conveyor Specs:
1) 18x 16ft slider bed
2 in high cleats
3/4 hp

2)
1/2 hp
21x14 ft
