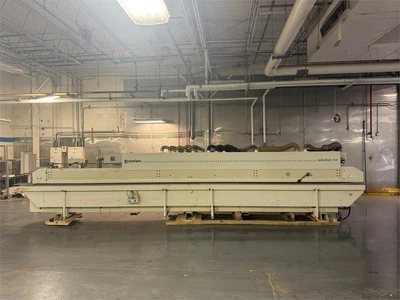

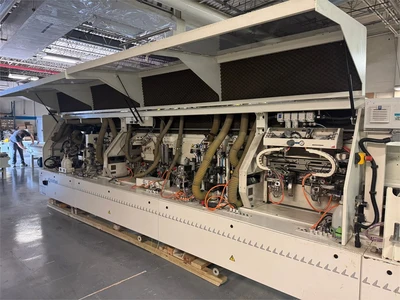

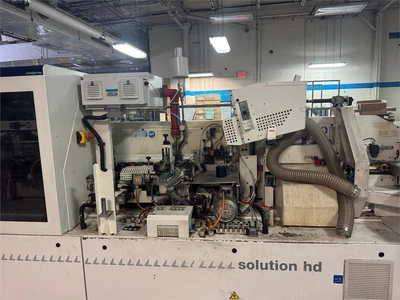

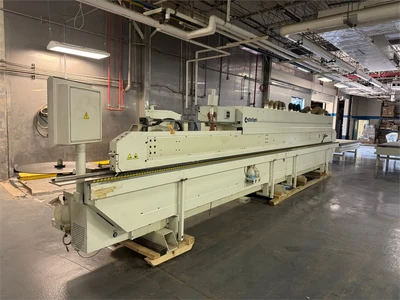

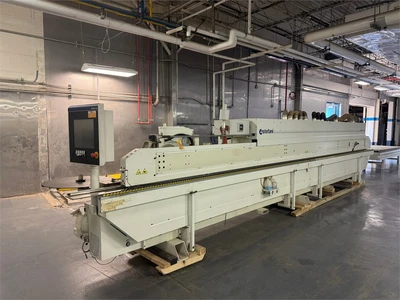

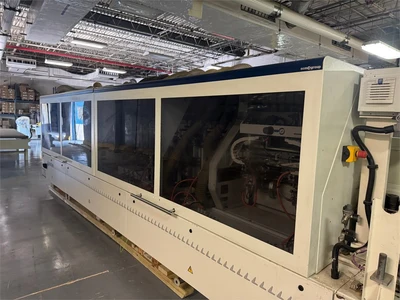

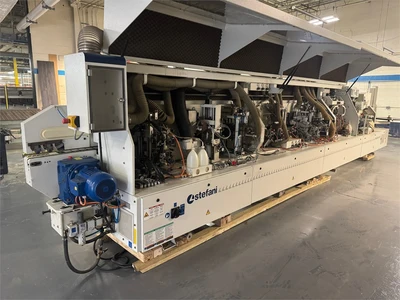

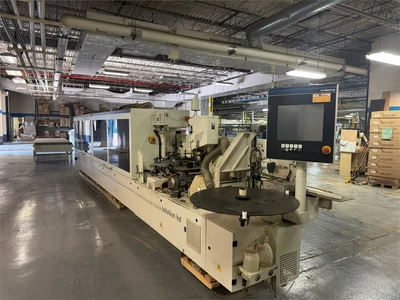

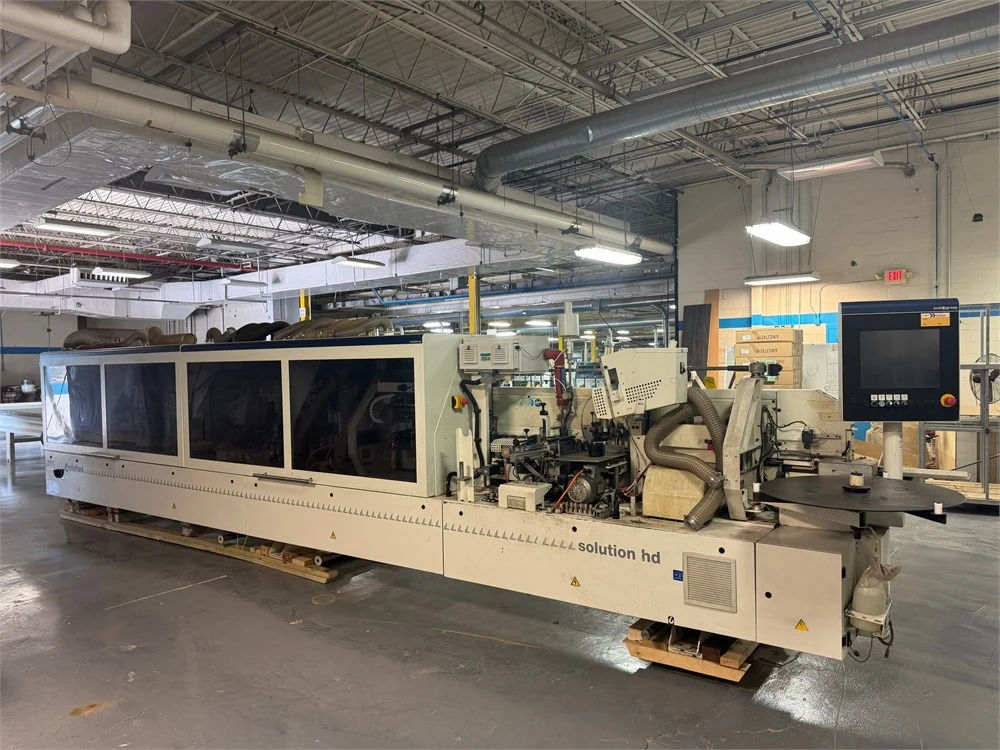

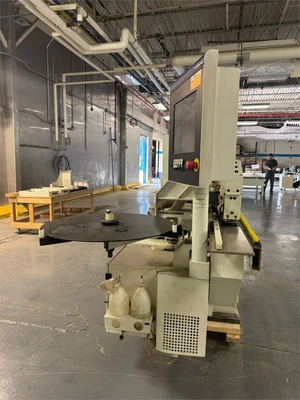

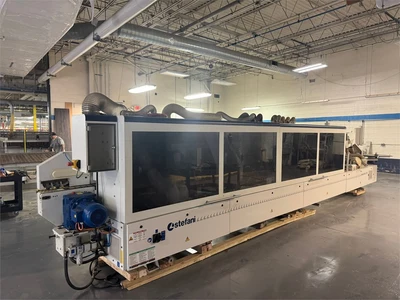

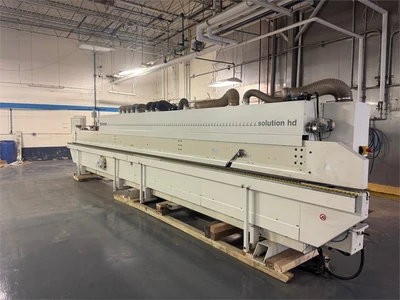

USED 2016 SCMI SOLUTION HD

Lot Closes:: 6/30/2026 7:55:00 PM PT

Minimum Panel Length:  140mm/5.5"
Working Height: 10 mm - 60 mm (3/8" – 2 3/8")
Edge Thickness: 0.4 mm/0.015" - 22 mm/0.87"
Minimum Panel Spacing:  630mm/24.8"
Minimum coil length:  230mm/9.0"
Minimum strips length (solid wood and HPL): 250mm/9.8"
Track speed (depending on edge thickness): 40 - 82 FPM

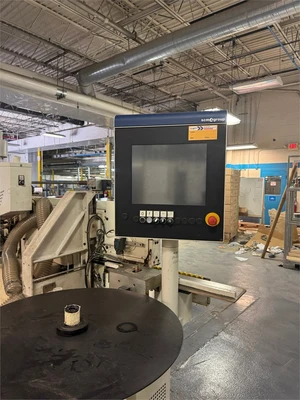

Controller
PC Office Operating system: W XP
Screen: 17" TFT
2 network card ETHERNET
6 USB ports - 2 PS/2 ports
Bar code reader management
Automatic motorized positioning of the top pressure beam from the control.  This system also automatically adjusts all work units to accommodate the new part thickness. Beam height is set in the programs to suit the application.
Panel spacing device
Two position infeed fence
Pneumatic two position of infeed guide
Top pressure belt
Anti-Adhesion Unit
Pre-Milling Unit, 5.4 HP motors operating at 12,000 RPM
Panel Heating Lamps

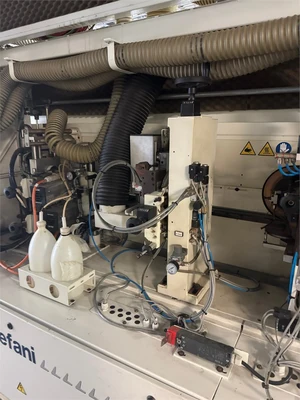

Glue unit with hopper and application roller
Precise control of the amount of glue on the panel edge
Electronic control of the glue temperature
Movement of the glue spreading roller, of the first pressure roller, and of the feed roller by motors
Automatic temperature kick-down to avoid glue scorching
Quick-melt system with pot for melting glue granules. This allows for a fast melt of the glue granules with controlled alimentation into on the spreading basin.  The pump heated by resistors and complete with thermoregulators for the temperature control
A smaller glue pot with electronic glue level monitoring replaces the standard glue pot to improve heating time.
Heavy duty guillotine for automatic tape trimming
Automatic loading of coiled material or strips
Pressure unit with one (1) motorized roller and three (3) idle rollers with opposing tilt.  All rollers have “jump” capability.  Electronic setting of the pressure unit by means of numerical controlled motor to set the position of the pressure rollers when changing edge thickness.  This system is fully controlled by the PC program or manually adjusted on computer screen.  Mounted on THK guides

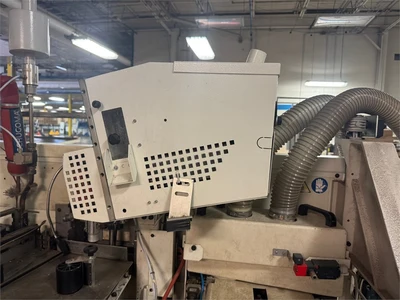

YU/SP-750 Top Mounted End Trimming Unit
Unit installed on the pressure beam
Two motors with timed pneumatic movement
Front, back feeler with automatic location
Lateral feelers on linear ball recirculating guides with pneumatic intervention
Motors with manual tilt up to 15°
Automatic exclusion per application via the program
Automatic Horizontal Blade Tilt
R Trimming Unit.  For the rough trimming of thin and medium edges or for the finishing of solid wood edge:
Top and bottom trimming motors with quick-release device
Top motor connected to the pressure beam for automatic adjustment according to the panel thickness
Large diameter, disc-shaped vertical copying device
Numerical indicators for the horizontal and vertical shifting of the motors
Automatic exclusion per application via the program
2.5 HP motors
RSU Fine Trimming Unit.  Automatic top and bottom trimming for thin edges or rough trimming on PVC/ABS edges:
Two motors tilting up to 30° with quick-release system
Top motor connected to the pressure beam for the automatic adjustment according to the edge thickness
Large diameter, disc-shaped vertical copying device
Horizontal and vertical automatic cut-off up to 10 mm.
Electronic Positioning Of Feelers For RSU
Corner Rounding Unit C1+C2 2P.  This heavy-duty unit is designed to round the front and rear corners of work pieces with thick PVC edging.  The four independent motors on this unit are equipped with front and lateral copying devices.  In/out positioning is controlled through the PC.  The unit is designed to change between 3mm PVC to thin tape via the PC.
Four motors with quick-release system with motor blocks supported by a parallelogram supports that keep tool in perfect position independently from the geometry of the profile
Motors equipped with 2 position automatic positioning to quickly change from thin tape to 3mm PVC.
Separate processing sequences for each corner to avoid causing vibrations of the panel
Four motors guarantee a tear out free finish when applying 3mm wood coil
Copying system with bearing feelers and lateral feeler
Automatic exclusion
Pneumatic positioning of the cutter on 2 positions for processing 3mm or thin pvc
Edge Scraping Unit RAS/S.  Top and bottom scraping for PVC/ABS material
Quick release device for motor and tool which allows the fast and precise change over
Vertical and horizontal shifting devices made of steel grounded bars with recirculating ball bearings
Large diameter vertical and horizontal feelers
Numerical indicators for the horizontal shifting
 Automatic exclusion
Glue Scraping RCA/2C.  Removes possible excess of glue on the top and bottom side of the panel.
Complete with two cutters
Vertical copying device
Two blowers cleaning the cutters
 Automatic start to assure the best processing of the starting and the ending side of the panel
Automatic exclusion
Buffing Unit SPN.  For the cleaning and finishing of plastic edges.
Two (2) overlapped motors that tilt vertically.
Pneumatic Cut-off and Oscillation

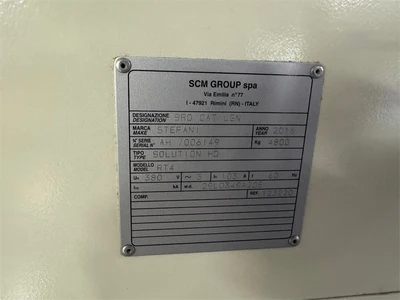

Phase: 3 PHASE
Voltage: 380/400
Buyer Inspection Period: June 24 and June 25th 8:00AM - 3:00PM
Load Out Period: July 7-24 2026 By Appt Only
Estimated Dimensions: 30'x4'x7'
Seller Comment: Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
Load Fee: 0.00
