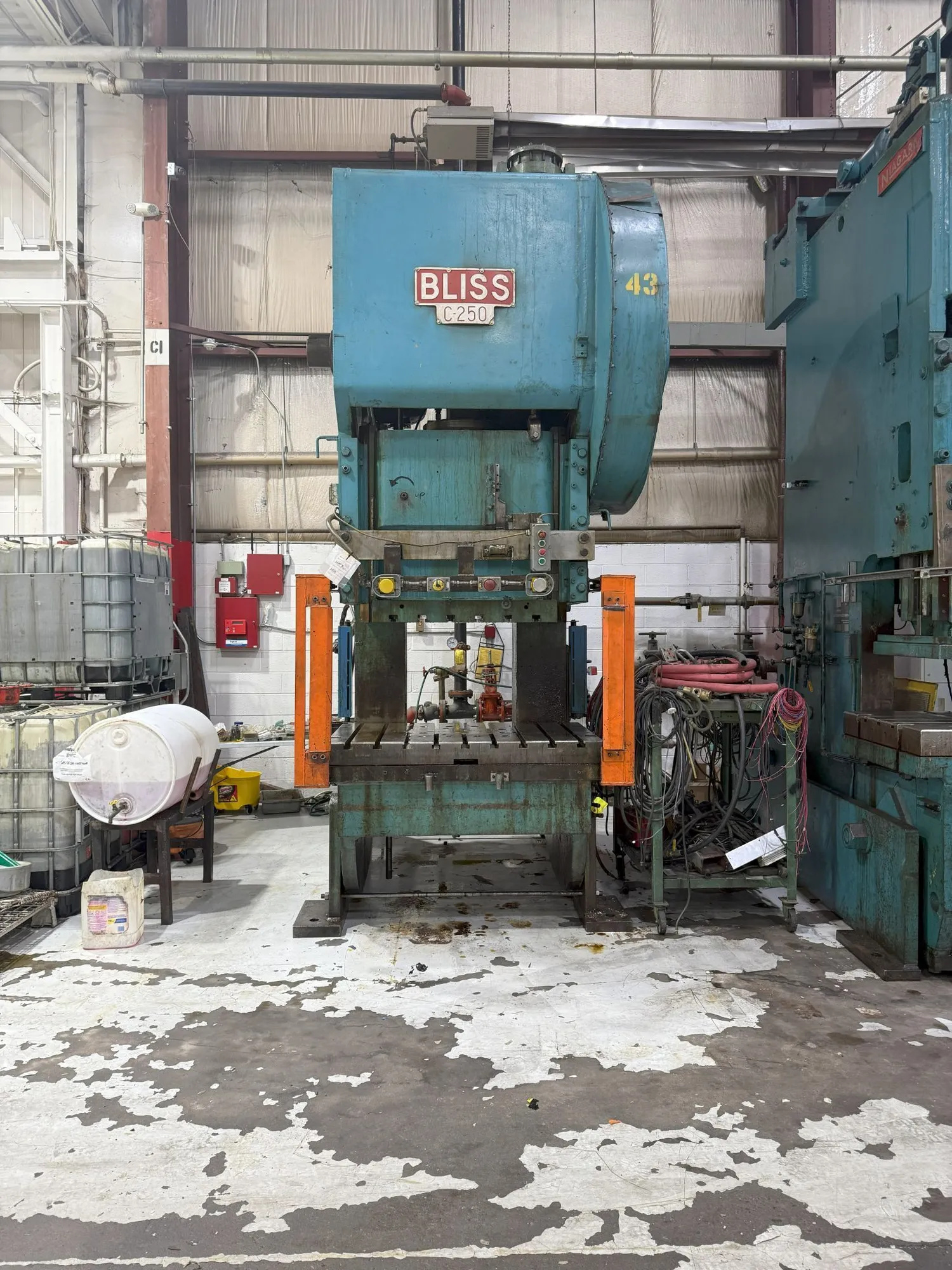

250 Ton Bliss Model C-250 Single Point Gap Press available, featuring a 250T capacity, 8" stroke, and a 24" shut height. Includes air clutch, brakes, recirculating lube system, and light curtains.
| Tonnage | 250 T | 226.796 t |
| Stroke | 8" | 203.2 mm |
| Shut Height | 24" | 609.6 mm |
| Bed area (Left to right) | 58" | 1,473.2 mm |
| Bed area (Front to back) | 34" | 863.6 mm |
| SPM min. | 35 strokes/min. | 35 strokes/min. |
| SPM max. | 35 strokes/min. | 35 strokes/min. |
| Adjustment | 4.5" | 114.3 mm |
Serial Number: H-54319
250 ton Capacity
8" Stroke
24" Shut Height on Bed
4.5" Adjustment
58" LR x 34" FB Bed Area
39" LR x 28" FB Slide Area
35 SPM
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Motorized Adjustment
Palm Buttons
Motors and Controls
Light Curtains
